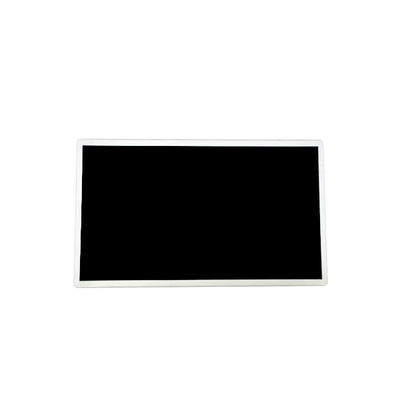

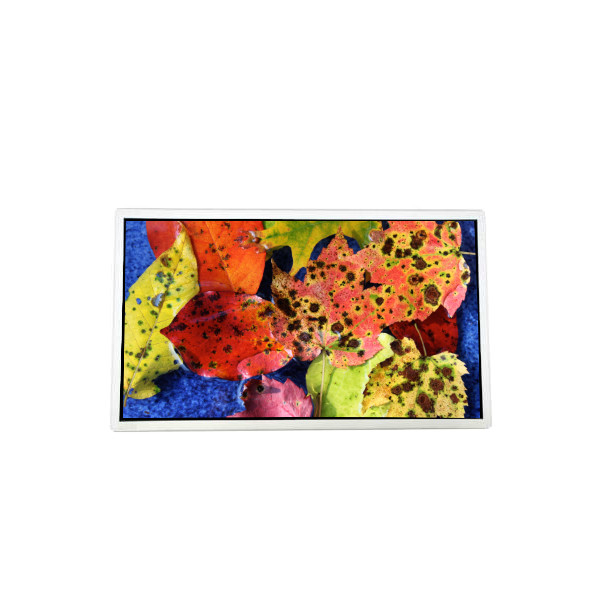

G185HAN01.004 18.5 inch 1920*1080 tft lcd screen high quality
Product Details:
| Place of Origin: | China |
| Brand Name: | AUO |
| Model Number: | G185HAN01.004 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Original packaging/conventional packaging box |
| Delivery Time: | 7 Days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 100000 Unit/Units per Month |
|
Detail Information |
|||
| Model Name: | G185HAN01.004 | Diagonal Size: | 18.5" |
|---|---|---|---|
| Panel Type: | A-Si TFT-LCD, LCM | Resolution: | 1920(RGB)×1080, FHD 119PPI |
| Pixel Format: | RGB Vertical Stripe | Active Area: | 408.96(W)×230.04(H) Mm |
| Display Mode: | AHVA, Normally Black, Transmissive | Display Colors: | 16.7M 97%sRGB |
| Best View On: | Symmetry | Designed For: | Industrial、Medical Imaging |
Product Description
G185HAN01.004 18.5 inch 1920*1080 tft lcd screen high quality
G185HAN01.004 LCD Panel Product details :
| Brand | AUO |
| Model P/N | G185HAN01.004 |
| Diagonal Size | 18.5" |
| Panel Type | a-Si TFT-LCD, LCM |
| Resolution | 1920(RGB)×1080, FHD 119PPI |
| Pixel Format | RGB Vertical Stripe |
| Active Area | 408.96(W)×230.04(H) mm |
| Bezel Opening | 410.96(W)×232.04(H) mm |
| Outline Size | 430.4(W)×254.6(H)×12.5(D) mm |
| Surface | Antiglare, Hard coating (3H) |
| Brightness | 350 cd/m² (Typ.) |
| Contrast Ratio | 1000:1 (Typ.) (TM) |
| Viewing Angle | 89/89/89/89 (Typ.)(CR≥10) |
| Display Mode | AHVA, Normally Black, Transmissive |
| Best View on | Symmetry |
| Response Time | 10/10 (Typ.)(Tr/Td) |
| Display Colors | 16.7M 97%sRGB |
| Lamp Type | 8S7PWLED, 50K hours, With LED Driver |
| Frequency | 60Hz |
| Touch Screen | Without |
| Panel Weight | 1.75Kgs (Typ.) |
| Application | Industrial,Medical Imaging |
| Signal Interface | LVDS (2 ch, 8-bit), 30 pinsConnector |
| Input Voltage | 5.0V (Typ.) |
| Environment | Operating Temp.: -30 ~ 80 °C ; Storage Temp.: -30 ~ 80 °C |
G185HAN01.004 LCD Panel Shipping and Package :
G185HAN01.004 LCD Panel Transport:
Order Processing: Your orders will be shipped within 2-3 business days after the payment has cleared.
Expedited Shipping Option: If you require urgent delivery of this item, please select our Expedited shipping option. We will utilize one of the following courier services: DHL, UPS, or FEDEX, to ensure prompt delivery.
Delivery Monitoring: In the event that you do not receive the item within the specified timeframe, kindly send us a message. We will promptly liaise with the logistics company to expedite the delivery process and ensure that your item reaches you as soon as possible.
G185HAN01.004 LCD Panel Warranty Clause :
1 Year Warranty: YONGS offers a one-year insurance policy from the date of purchase. If the product malfunctions within this period, we will provide repair or replacement with a similar device. Please contact us for return instructions before sending the device back.
30 Days Warranty: We provide insurance coverage for 30 days from the date of purchase. If the item fails within this timeframe, we will undertake maintenance or replace it with a similar device. Please reach out to us for return instructions prior to sending the device back.
90 Days Warranty: YONGS offers a 90-day insurance plan from the date of purchase. Should the product cease functioning within this period, we will arrange for maintenance or replacement with similar devices. Please contact us for return instructions before shipping the item back.
Note: Our warranty does not cover returns. Regardless of the warranty duration, the buyer is responsible for covering the return shipping costs for any items within our warranty coverage.
G185HAN01.004 LCD Panel FAQ :
Q: How long will I receive my goods G185HAN01.004 ?
A: Generally speaking ,It will take 3-8days to your hand by DHL/FEDEX/UPS/TNT.
Q:If I place order now,when will you ship the goods of G185HAN01.004 ?
A: The order will be shipped within 2-3 working days after received your payment.
Q:Do you accept sample orders of G185HAN01.004 ?
A:Of course!sample order is welcome !
Q: How long is the warranty ?
A: We offer 90days warranty .
G185HAN01.004 LCD Screen Contact Us :
1 Piece available. The listed price may not be accurate due to rapid fluctuations. Please feel free to make an offer or reach out to us directly for the correct pricing.
Due to the dynamic nature of pricing, the listed price may not reflect the current market conditions. For the most accurate pricing information, we encourage you to inquire with us directly.
As prices for this item are subject to frequent changes, the listed price may not be up-to-date. To obtain the most accurate and current pricing, please contact us for a customized price quotation.
Want to Know more details about this product
