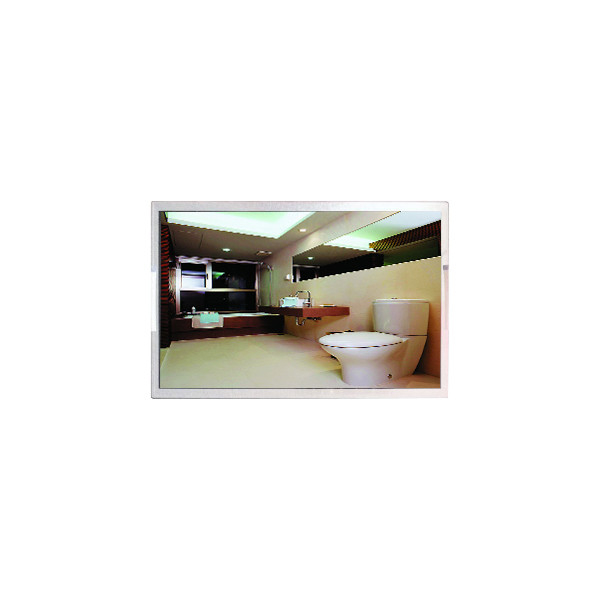

G104ACE-LH2 10.4 inch 800*600 LCD Display Module

Brand Name:	Innolux
Model Number:	G104ACE-LH2
MOQ:	1 pcs
Price:	Negotiable
Packaging Details:	Original packaging/conventional packaging box
Payment Terms:	T/T, Western Union

Detail Information

Product Description

Detail Information

Place of Origin:

China

Model Name:

G104ACE-LH2

Diagonal Size:

10.4"

Panel Type:

A-Si TFT-LCD, LCM

Resolution:

800(RGB)×600, SVGA 96PPI

Pixel Format:

RGB Vertical Stripe

Active Area:

211.2(W)×158.4(H) Mm

Work Mode:

AAS, Normally Black, Transmissive

Color Depth:

262K/16.7M 73% NTSC

Good View At:

Symmetry

Application:

Industrial

Supply Ability:

100000 Unit/Units per Month

Product Description

G104ACE-LH2 10.4 inch 800*600 LCD Display Module

G104ACE-LH2 LCD Panel Product details :

Brand	Innolux
Model P/N	G104ACE-LH2
Diagonal Size	10.4"
Panel Type	a-Si TFT-LCD, LCM
Resolution	800(RGB)×600, SVGA 96PPI
Pixel Format	RGB Vertical Stripe
Active Area	211.2(W)×158.4(H) mm
Bezel Opening	214.2(W)×161.6(H) mm
Outline Dim.	243(W)×184(H) ×8.5(D) mm
Treatment	Antiglare, Hard coating (2H)
Luminance	400 cd/m² (Typ.)
Contrast Ratio	1000:1 (Typ.) (TM)
View Direction	Symmetry
Response Time	13/12 (Typ.)(Tr/Td)
Viewing Angle	88/88/88/88 (Typ.)(CR≥10)
Operating Mode	AAS, Normally Black, Transmissive
Support Color	262K/16.7M 73% NTSC
Light Source	WLED , 50K hours , With LED Driver
Weight	400/420g (Typ./Max.)
Designed For	Industrial
Frame Rate	60Hz
Touch Panel	Without
Interface Type	LVDS (1 ch, 6/8-bit) , 30 pins Connector
Power Supply	3.3V (Typ.)
Environment	Operating Temp.: -30 ~ 85 °C ; Storage Temp.: -30 ~ 85 °C

Important Information about G104ACE-LH2 LCD Panel:

Please note that LCD screens can vary in size and resolution depending on the model. The resolution of an LCD screen is fixed and cannot be adjusted. Therefore, it is crucial to verify that the size and resolution of the screen match the specifications of your machine before making a purchase.

Here are key considerations:

Size and Resolution: Ensure that the dimensions and resolution of the LCD panel align with the requirements of your device. The size and resolution specifications must be compatible with your machine to ensure proper functionality.

Compatibility Check: Before purchasing, perform a compatibility check to confirm that the G104ACE-LH2 LCD panel is suitable for your specific device model. Using an incompatible screen may result in display issues or improper fitment.

Resolution Limitations: Keep in mind that the resolution of an LCD screen is fixed and cannot be adjusted. Therefore, choose a screen with a resolution that meets the requirements of your application.

About Us - G104ACE-LH2 LCD Panel Supplier:

We are a longstanding provider of LCD/LED screens, specializing in product sales and distribution across various well-known brands. Our extensive range includes screens from reputable manufacturers such as SHARP, MITSUBISHI, NEC, OPTREX, KYOCERA, AUO, CMO, INNOLUX, Samsung, and LG Display.

Key features of our services include:

Diverse Product Range: We offer a wide variety of LCD/LED screens, spanning from compact 1.5-inch panels to expansive 88-inch displays.Our products cater to various applications, including Car GPS, handheld devices, industrial screens, tablets, laptops, monitors, and more.

Quality Assurance: All our screens are sourced as original grade A products, ensuring superior quality and performance. Before shipment, each screen undergoes comprehensive testing to guarantee functionality and reliability.

Customer Commitment: We strive to provide exceptional service and support to our customers. Your satisfaction is our priority, and we are dedicated to assisting you with any inquiries or requirements.

G104ACE-LH2 LCD Panel Shipping and Package :

G104ACE-LH2 LCD Panel Return Policy:

If you have received a damaged or incorrect item, kindly reach out to us via message, and we will promptly arrange for its return.

Returns are accepted within 30 days from the date of receiving the item.

When preparing the return, please ensure that you pack the product securely, similar to how it was originally packaged. LCD screens are highly fragile, and it's crucial to handle them with care during shipment. Please do not use alternative packaging materials.

For instances where the buyer has purchased the wrong product or size, the buyer is responsible for covering the return shipping costs.

G104ACE-LH2 LCD Panel FAQ :

Q: Can you tested the G104ACE-LH2 before shipping ?

A: Of course , our lcd panel G104ACE-LH2 was Strictly tested before shipping.

Q: How to order G104ACE-LH2 ?

A: We accept T/T , Paypal , western union .

Q: How long the warranty of the lcd G104ACE-LH2 ?

A: 90 days .

Q: What happen if the lcd panel G104ACE-LH2 I received can't work ?

A: G104ACE-LH2 was tesed before shipping.If happen that , pls check all the connect cable again,If still has problems ,we accept exchange or return panel .
