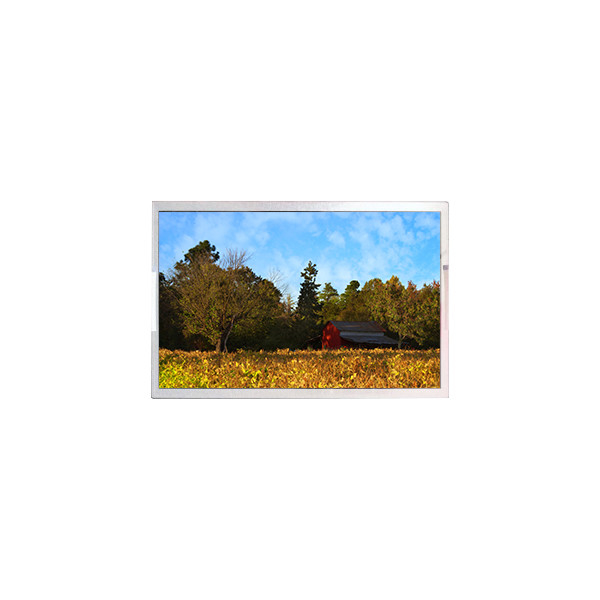

MHF601BS1-1 15.6 inch 1920*1080 tft LCD Display Module
Product Details:
| Place of Origin: | China |
| Brand Name: | CSOT |
| Model Number: | MHF601BS1-1 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Original packaging/conventional packaging box |
| Delivery Time: | 7 Days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 100000 Unit/Units per Month |
|
Detail Information |
|||
| Model Name: | MHF601BS1-1 | Diagonal Size: | 15.6" |
|---|---|---|---|
| Panel Type: | A-Si TFT-LCD, LCM | Resolution: | 1920(RGB)×1080, FHD 141PPI |
| Pixel Format: | RGB Vertical Stripe | Active Area: | 344.16(W)×193.59(H) Mm |
| Work Mode: | FFS, Normally Black, Transmissive | Color Depth: | 16.2M |
| Good View At: | Symmetry | Application: | Laptop |
Product Description
MHF601BS1-1 15.6 inch 1920*1080 tft LCD Display Module
MHF601BS1-1 LCD Panel Product details :
| Brand | CSOT |
| Model P/N | MHF601BS1-1 |
| Diagonal Size | 15.6" |
| Panel Type | a-Si TFT-LCD, LCM |
| Resolution | 1920(RGB)×1080, FHD 141PPI |
| Pixel Format | RGB Vertical Stripe |
| Active Area | 344.16(W)×193.59(H) mm |
| Bezel Opening | - |
| Outline Dim. | 350.66(W)×214.53(H)×3.2(D) mm |
| Treatment | Antiglare |
| Luminance | 350 cd/m² (Typ.) |
| Contrast Ratio | 1200 : 1 (Typ.) (TM) |
| View Direction | Symmetry |
| Response Time | 20 (Typ.)(Tr+Td) ms |
| Viewing Angle | 85/85/85/85 (Typ.)(CR≥10) |
| Operating Mode | FFS, Normally Black, Transmissive |
| Support Color | 16.2M |
| Light Source | 9S6P WLED , 15K hours , With LED Driver |
| Outline Shape | Slim (PCBA Flat, T≤3.2mm) |
| Designed For | Laptop |
| Frame Rate | 60Hz |
| Touch Panel | Without |
| Interface Type | eDP (2 Lanes) , HBR1 (2.7G/lane) , 30 pins Connector |
| Power Supply | 3.3V (Typ.) |
| Environment | Storage Temp.: -20 ~ 60 °C Operating Temp.: 0 ~ 50 °C |
Important Information about MHF601BS1-1 LCD Panel:
Please note that LCD screens can vary in size and resolution depending on the model. The resolution of an LCD screen is fixed and cannot be adjusted. Therefore, it is crucial to verify that the size and resolution of the screen match the specifications of your machine before making a purchase.
Here are key considerations:
Size and Resolution: Ensure that the dimensions and resolution of the LCD panel align with the requirements of your device. The size and resolution specifications must be compatible with your machine to ensure proper functionality.
Compatibility Check: Before purchasing, perform a compatibility check to confirm that the MHF601BS1-1 LCD panel is suitable for your specific device model. Using an incompatible screen may result in display issues or improper fitment.
Resolution Limitations: Keep in mind that the resolution of an LCD screen is fixed and cannot be adjusted. Therefore, choose a screen with a resolution that meets the requirements of your application.
About Us - MHF601BS1-1 LCD Panel Supplier:
We are a longstanding provider of LCD/LED screens, specializing in product sales and distribution across various well-known brands. Our extensive range includes screens from reputable manufacturers such as SHARP, MITSUBISHI, NEC, OPTREX, KYOCERA, AUO, CMO, INNOLUX, Samsung, and LG Display.
Key features of our services include:
Diverse Product Range: We offer a wide variety of LCD/LED screens, spanning from compact 1.5-inch panels to expansive 88-inch displays.Our products cater to various applications, including Car GPS, handheld devices, industrial screens, tablets, laptops, monitors, and more.
Quality Assurance: All our screens are sourced as original grade A products, ensuring superior quality and performance. Before shipment, each screen undergoes comprehensive testing to guarantee functionality and reliability.
Customer Commitment: We strive to provide exceptional service and support to our customers. Your satisfaction is our priority, and we are dedicated to assisting you with any inquiries or requirements.
MHF601BS1-1 LCD Panel Shipping and Package :
MHF601BS1-1 LCD Panel Return Policy:
If you have received a damaged or incorrect item, kindly reach out to us via message, and we will promptly arrange for its return.
Returns are accepted within 30 days from the date of receiving the item.
When preparing the return, please ensure that you pack the product securely, similar to how it was originally packaged. LCD screens are highly fragile, and it's crucial to handle them with care during shipment. Please do not use alternative packaging materials.
For instances where the buyer has purchased the wrong product or size, the buyer is responsible for covering the return shipping costs.
MHF601BS1-1 LCD Panel FAQ :
Q: How long is the warranty ?
A: We offer 90days warranty .
Q: Do you accept sample orders of MHF601BS1-1 ?
A: Of course!sample order is welcome !
Q: How to make payment of MHF601BS1-1 ?
A: We accept T/T , Paypal , western union .
Q: Can I pay my order of MHF601BS1-1 via credit card ?
A: Yes!you can use your credit card through your Paypal account.
