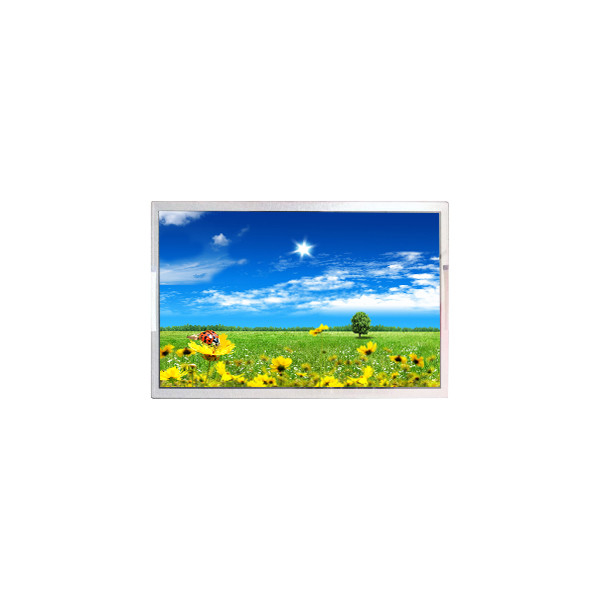

C146HAA01.0 14.6 inch 1920*1080 LCD Display Module

Brand Name:	AUO
Model Number:	C146HAA01.0
MOQ:	1 pcs
Price:	Negotiable
Packaging Details:	Original packaging/conventional packaging box
Payment Terms:	T/T, Western Union

Detail Information

Product Description

Detail Information

Place of Origin:

China

Model Name:

C146HAA01.0

Diagonal Size:

14.6"

Panel Type:

LTPS TFT-LCD, LCM

Resolution:

1920(RGB)×1080, FHD 150PPI

Pixel Format:

RGB Vertical Stripe

Active Area:

323.136(W)×181.764(H) Mm

Work Mode:

AHVA, Normally Black, Transmissive

Color Depth:

16.7M

Good View At:

Symmetry

Application:

Outdoor High Brightness /Automotive Display

Supply Ability:

100000 Unit/Units per Month

Product Description

C146HAA01.0 14.6 inch 1920*1080 LCD Display Module

C146HAA01.0 LCD Panel Product details :

Brand	AUO
Model P/N	C146HAA01.0
Diagonal Size	14.6"
Panel Type	LTPS TFT-LCD, LCM
Resolution	1920(RGB)×1080, FHD 150PPI
Pixel Format	RGB Vertical Stripe
Active Area	323.136(W)×181.764(H) mm
Bezel Opening	-
Outline Dim.	339.34(W)×203.16(H) ×13.7(D) mm
Treatment	Antiglare (Haze 3%), Hard coating (7H), Reflection 1.5% (Max.)
Luminance	800 cd/m² (Min.)
Contrast Ratio	1300:1 (Typ.) (TM)
View Direction	Symmetry
Response Time	25 (Max.)(Tr+Td)
Viewing Angle	80/80/80/80 (Typ.)(CR≥10)
Operating Mode	AHVA, Normally Black, Transmissive
Support Color	16.7M
Light Source	11S4P WLED , 10K hours , Without Driver
Weight	820g (Typ.)
Designed For	Outdoor High Brightness /Automotive Display
Frame Rate	60Hz
Touch Panel	In-Cell Touch, I²C
Interface Type	LVDS (2 ch, 8-bit) , 60 pins Connector
Power Supply	3.3V (Typ.)
Environment	Operating Temp.: -40 ~ 85 °C ; Storage Temp.: -40 ~ 95 °C

Important Information about C146HAA01.0 LCD Panel:

Please note that LCD screens can vary in size and resolution depending on the model. The resolution of an LCD screen is fixed and cannot be adjusted. Therefore, it is crucial to verify that the size and resolution of the screen match the specifications of your machine before making a purchase.

Here are key considerations:

Size and Resolution: Ensure that the dimensions and resolution of the LCD panel align with the requirements of your device. The size and resolution specifications must be compatible with your machine to ensure proper functionality.

Compatibility Check: Before purchasing, perform a compatibility check to confirm that the C146HAA01.0 LCD panel is suitable for your specific device model. Using an incompatible screen may result in display issues or improper fitment.

Resolution Limitations: Keep in mind that the resolution of an LCD screen is fixed and cannot be adjusted. Therefore, choose a screen with a resolution that meets the requirements of your application.

About Us - C146HAA01.0 LCD Panel Supplier:

We are a longstanding provider of LCD/LED screens, specializing in product sales and distribution across various well-known brands. Our extensive range includes screens from reputable manufacturers such as SHARP, MITSUBISHI, NEC, OPTREX, KYOCERA, AUO, CMO, INNOLUX, Samsung, and LG Display.

Key features of our services include:

Diverse Product Range: We offer a wide variety of LCD/LED screens, spanning from compact 1.5-inch panels to expansive 88-inch displays.Our products cater to various applications, including Car GPS, handheld devices, industrial screens, tablets, laptops, monitors, and more.

Quality Assurance: All our screens are sourced as original grade A products, ensuring superior quality and performance. Before shipment, each screen undergoes comprehensive testing to guarantee functionality and reliability.

Customer Commitment: We strive to provide exceptional service and support to our customers. Your satisfaction is our priority, and we are dedicated to assisting you with any inquiries or requirements.

C146HAA01.0 LCD Panel Shipping and Package :

C146HAA01.0 LCD Panel Return Policy:

If you have received a damaged or incorrect item, kindly reach out to us via message, and we will promptly arrange for its return.

Returns are accepted within 30 days from the date of receiving the item.

When preparing the return, please ensure that you pack the product securely, similar to how it was originally packaged. LCD screens are highly fragile, and it's crucial to handle them with care during shipment. Please do not use alternative packaging materials.

For instances where the buyer has purchased the wrong product or size, the buyer is responsible for covering the return shipping costs.

C146HAA01.0 LCD Panel FAQ :

Q: How long is the warranty ?

A: We offer 90days warranty .

Q: Can you give me a discount if I need a large quantity of C146HAA01.0 ?

A: Of course!If you make a large order, we will give you a discount.

Q: If I place order now,when will you ship the goods of C146HAA01.0 ?

A: The order will be shipped within 2-3 working days after received your payment.

Q: Do you accept sample orders of C146HAA01.0 ?

A: Of course!sample order is welcome !
