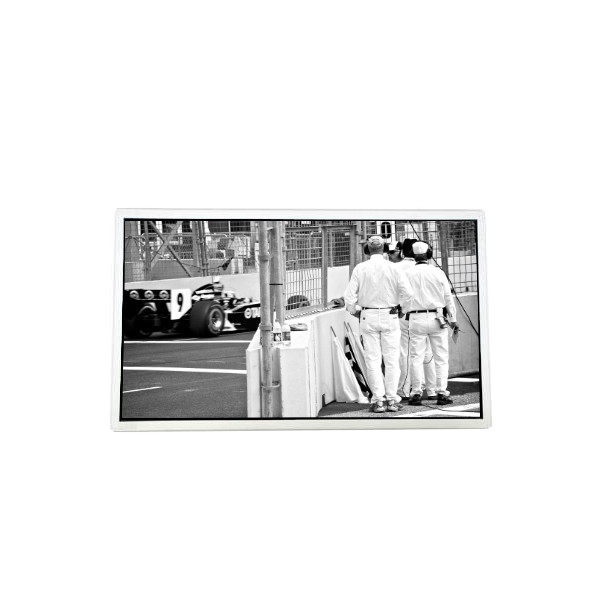

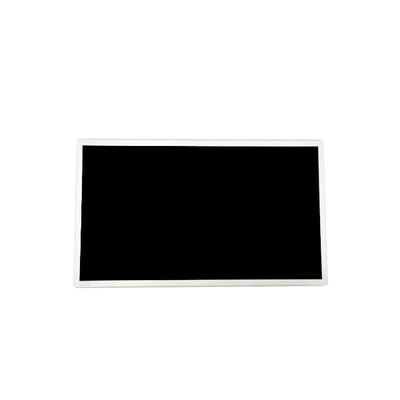

G185HAN01.100 18.5 inch 1080p lcd screen high quality

Brand Name:	AUO
Model Number:	G185HAN01.100
MOQ:	1 pcs
Price:	Negotiable
Packaging Details:	Original packaging/conventional packaging box
Payment Terms:	T/T, Western Union

Detail Information

Product Description

Detail Information

Place of Origin:

China

Model Name:

G185HAN01.100

Diagonal Size:

18.5"

Panel Type:

A-Si TFT-LCD, LCM

Resolution:

1920(RGB)×1080, FHD 119PPI

Pixel Format:

RGB Vertical Stripe

Active Area:

408.96(W)×230.04(H) Mm

Work Mode:

AHVA, Normally Black, Transmissive

Lamp Type:

8S7P WLED , 50K Hours , With LED Driver

Best View On:

Symmetry

Designed For:

Industrial Medical Imaging

Supply Ability:

100000 Unit/Units per Month

Product Description

G185HAN01.100 18.5 inch 1080p lcd screen high quality

G185HAN01.100 LCD Panel Product details :

Brand	AUO
Model P/N	G185HAN01.100
Diagonal Size	18.5"
Panel Type	a-Si TFT-LCD, LCM
Resolution	1920(RGB)×1080, FHD 119PPI
Pixel Format	RGB Vertical Stripe
Active Area	408.96(W)×230.04(H) mm
Bezel Opening	412.56(W)×233.64(H) mm
Outline Size	430.4(W)×254.6(H)×12.5(D)
Surface	Antiglare, Hard coating (3H)
Brightness	500 cd/m² (Typ.)
Contrast Ratio	1000:1 (Typ.) (TM)
Viewing Angle	89/89/89/89 (Typ.)(CR≥10)
Display Mode	AHVA, Normally Black, Transmissive
Best View on	Symmetry
Response Time	10/10 (Typ.)(Tr/Td)
Display Colors	16.7M 99% sRGB
Lamp Type	8S7P WLED , 50K hours , With LED Driver
Frequency	60Hz
Touch Screen	Without
Panel Weight	1.20Kgs (Typ.)
Application	Industrial Medical Imaging
Signal Interface	LVDS (2 ch, 8-bit) , 30 pins Connector
Input Voltage	5.0V (Typ.)
Environment	Storage Temp.: -25 ~ 70 °C Operating Temp.: -20 ~ 70 °C

G185HAN01.100 LCD Panel Payment Instructions :

Accepted Payment Methods:

We prioritize the safety and convenience of our customers by accepting payments through Escrow, which allows you to pay securely online using your Credit Card.

Payment Timeline:

To ensure the timely processing and shipping of your order, please make your payment within 3 days of placing the order. Prompt payment is appreciated and helps us maintain efficient service. If you encounter any issues or delays with your payment, please don't hesitate to contact us immediately. We are here to assist you and resolve any problems to ensure a smooth transaction.

G185HAN01.100 LCD Panel Shipping and Package :

G185HAN01.100 LCD Panel Shipment Information :

Shipping Address:

We will ship your order to the address provided at the time of payment. Please ensure the address you entered is correct and up-to-date to avoid any delivery issues.

Estimated Delivery Time:

Typically, your order will arrive within 15-35 days. For orders shipped to Brazil, the estimated delivery time is 20-40 days. Some countries or regions may experience longer shipping times.

Delayed Shipments:

If your parcel has not arrived within the expected timeframe, please contact us first before taking any further action. We are here to assist you and will work to provide a satisfactory resolution.

Dispute Policy:

Please refrain from opening a dispute within the first 60 days after placing your order. If your order has not arrived after 60 days, you may contact us to request a refund or a resend of the product.

Customs Duty and Import Tax:

We are not responsible for any customs duties or import taxes that may be applicable in your country. Please check your local customs regulations for more information.

Important Instructions for Receiving and Handling Your G185HAN01.100 LCD Panel :

Inspecting the Package Upon Arrival:

When you receive the package, carefully inspect its condition.

If you notice any obvious damage, dents, or deformities, prepare to record a video as you open the package. This evidence is crucial for any potential claims.

Reporting Damaged Goods:

If you find that the LCD panel is damaged, immediately take detailed images and videos showing the damage.

Send these visuals to us to document the issue.

Our team will handle shipping-related damages but not those caused during installation. To secure your rights, provide the requested evidence and initiate a dispute for a refund if necessary.

Testing Before Installation:

After confirming the screen is undamaged, thoroughly test its functionality before proceeding with installation.

Do not attempt to install the screen yourself unless you are a professional. We recommend that installation be carried out by qualified technical personnel. We are not responsible for damages resulting from unprofessional installation.

Product Authenticity and Labels:

Each product from our store includes a unique anti-tear label.

Do not remove this label, as it verifies the product's authenticity and origin from our store.

Documenting Product Issues:

If you encounter any issues with the product, ensure that your video proof includes the labels as evidence.

Following these guidelines will help ensure a smooth process and protect your purchase rights. Thank you for your cooperation.

G185HAN01.100 LCD Panel FAQ :

Q: Can You declare my order of G185HAN01.100 to a lower price in commercial invoice for customs ?

A: Yes , we can . pls inform us before shipping .

Q: Can you give me a discount if I need a large quantity of G185HAN01.100 ?

A: Of course!If you make a large order, we will give you a discount.

Q: Do you accept sample orders of G185HAN01.100 ?

A: Of course!sample order is welcome !

Q: Can I pay my order of G185HAN01.100 via credit card ?

A: Yes!you can use your credit card through your Paypal account.
