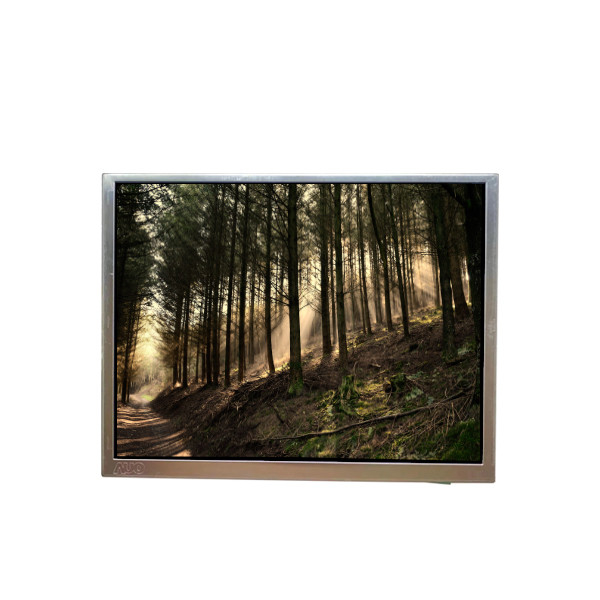

C087XAN01.0 8.7 inch 1024*768 60Hz LCD Display Module
Product Details:
| Place of Origin: | China |
| Brand Name: | AUO |
| Model Number: | C087XAN01.0 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Original packaging/conventional packaging box |
| Delivery Time: | 7 Days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 100000 Unit/Units per Month |
|
Detail Information |
|||
| Model Name: | C087XAN01.0 | Diagonal Size: | 8.7" |
|---|---|---|---|
| Panel Type: | A-Si TFT-LCD, LCM | Resolution: | 1024(RGB)×768, XGA 147PPI |
| Pixel Format: | RGB Vertical Stripe | Active Area: | 176.64(W)×132.48(H) Mm |
| Work Mode: | AHVA, Normally Black, Transmissive | Lamp Type: | WLED |
| Best View On: | Symmetry | Designed For: | Automotive Display |
Product Description
C087XAN01.0 8.7 inch 1024*768 60Hz LCD Display Module
C087XAN01.0 LCD Panel Product details :
| Brand | AUO |
| Model P/N | C087XAN01.0 |
| Diagonal Size | 8.7" |
| Panel Type | a-Si TFT-LCD, LCM |
| Resolution | 1024(RGB)×768, XGA 147PPI |
| Pixel Format | RGB Vertical Stripe |
| Active Area | 176.64(W)×132.48(H) mm |
| Bezel Opening | 180.04(W)×136.28(H) mm |
| Outline Size | 192.5(W)×152(H)×20.2(D) mm |
| Brightness | 700 cd/m² (Typ.) |
| Viewing Angle | 80/80/80/80 (Typ.)(CR≥10) |
| Best View on | Symmetry |
| Display Colors | 16.7M |
| Frequency | 60Hz |
| Weight | TBD |
| Surface | Antiglare |
| Contrast Ratio | 1000:1 (Typ.) (TM) |
| Display Mode | AHVA, Normally Black, Transmissive |
| Response Time | 15/30 (Typ.)(Tr/Td) |
| Lamp Type | WLED |
| Touch Screen | Without |
| Application | Automotive Display |
| Signal Interface | LVDS (1 ch, 8-bit), 40 pinsFPC |
| Environment | Operating Temp.: -30 ~ 85 °C ;Storage Temp.: -40 ~ 95 °C |
