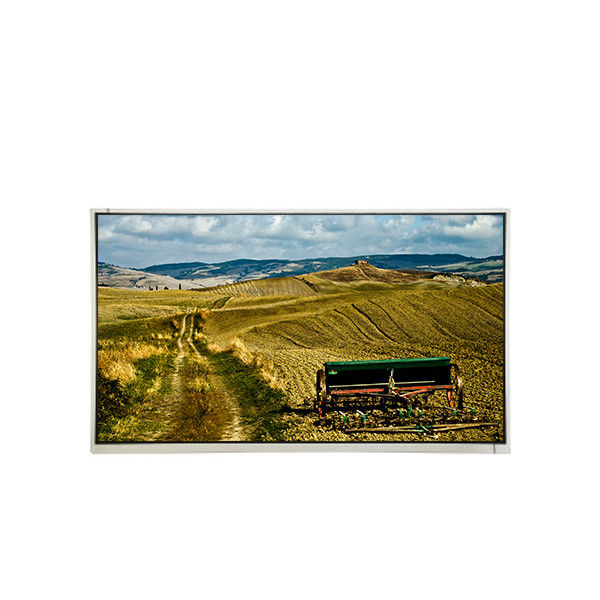

M220SP01 V0 22.0 inch LCD Display Module for Desktop Monitor
Product Details:
| Place of Origin: | China |
| Brand Name: | AUO |
| Model Number: | M220SP01 V0 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Original packaging/conventional packaging box |
| Delivery Time: | 7 Days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 100000 Unit/Units per Month |
|
Detail Information |
|||
| Model Name: | M220SP01 V0 | Diagonal Size: | 22.0" |
|---|---|---|---|
| Panel Type: | A-Si TFT-LCD, LCM | Resolution: | 1680(RGB)×1050, WSXGA+ 90PPI |
| Pixel Format: | RGB Vertical Stripe | Active Area: | 473.76(W)×296.1(H) Mm |
| Work Mode: | TN, Normally White, Transmissive | Display Colors: | 16.7M 72%NTSC |
| Viewing Angle: | 85/85/80/80 (Typ.)(CR≥10) | Designed For: | Desktop Monitor |
Product Description
M220SP01 V0 22.0 inch LCD Display Module for Desktop Monitor
M220SP01 V0 LCD Panel Product details :
| Brand | AUO |
| Model P/N | M220SP01 V0 |
| Diagonal Size | 22.0" |
| Panel Type | a-Si TFT-LCD, LCM |
| Resolution | 1680(RGB)×1050, WSXGA+ 90PPI |
| Pixel Format | RGB Vertical Stripe |
| Active Area | 473.76(W)×296.1(H) mm |
| Bezel Opening | 477.7(W)×300.1(H) mm |
| Outline Size | 493.7(W)×320.1(H)×18.5(D) mm |
| Surface | Antiglare, Hard coating (3H) |
| Brightness | 300 cd/m² (Typ.) |
| Contrast Ratio | 1000:1 (Typ.) (TM) |
| Viewing Angle | 85/85/80/80 (Typ.)(CR≥10) |
| Display Mode | TN, Normally White, Transmissive |
| Best View on | - |
| Response Time | 3.6/1.4 (Typ.)(Tr/Td) |
| Display Colors | 16.7M 72%NTSC |
| Lamp Type | 4 pcsCCFL, 50K hours, Without Driver |
| Frequency | - |
| Touch Screen | Without |
| Panel Weight | 2.45Kgs (Typ.) |
| Application | Desktop Monitor |
| Signal Interface | Analog RGB + DVI-D, 70 pinsConnector |
| Input Voltage | 5.0V (Typ.) |
| Environment | Operating Temp.: 0 ~ 50 °C ; Storage Temp.: -20 ~ 60 °C |
