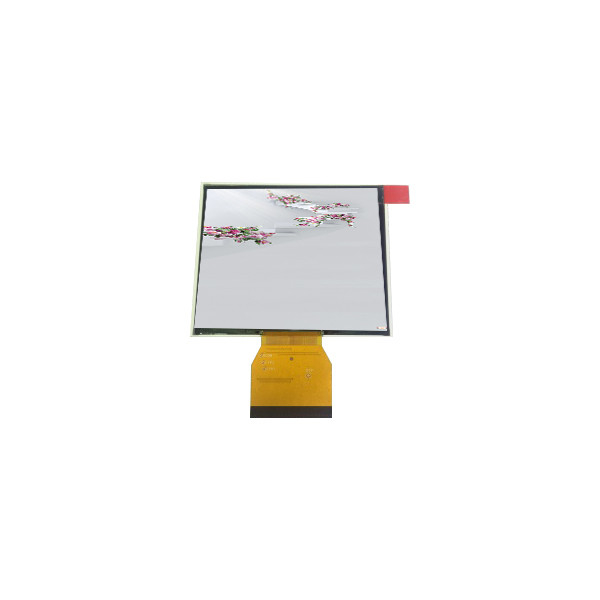

6.2 inch 800*480 TM062RFS02 800*480 LCD Screen Display
Product Details:
| Place of Origin: | China |
| Brand Name: | TIANMA |
| Model Number: | TM062RFS02 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Original packaging/conventional packaging box |
| Delivery Time: | 7 Days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 100000 Unit/Units per Month |
|
Detail Information |
|||
| Model Name: | TM062RFS02 | Diagonal Size: | 6.2" |
|---|---|---|---|
| Panel Type: | A-Si TFT-LCD, CELL, FOG | Resolution: | 800(RGB)×480, WVGA 150PPI |
| Pixel Format: | RGB Vertical Stripe | Active Area: | 137.4(W)×77.28(H) Mm |
| Display Colors: | 16.7M 50%NTSC | Used For: | Digital Photo Frame、Portable DVD Player、Video Door Phone、VOIP Phone |
| Contrast Ratio: | 500:1 (Typ.) (TM) | Display Mode: | TN, Normally White, Transmissive |
Product Description
6.2 inch 800*480 TM062RFS02 800*480 LCD Screen Display
TM062RFS02 LCD Panel Product details :
| Brand | TIANMA |
| Model P/N | TM062RFS02 |
| Diagonal Size | 6.2" |
| Panel Type | a-Si TFT-LCD, CELL, FOG |
| Resolution | 800(RGB)×480, WVGA 150PPI |
| Pixel Format | RGB Vertical Stripe |
| Active Area | 137.4(W)×77.28(H) mm |
| Bezel Opening | - |
| Outline Size | 146.3(W)×86.38(H)×1.43(D) mm |
| Brightness | 0 cd/m² |
| Viewing Angle | 75/75/60/70 (Typ.)(CR≥10) |
| Best View on | 12 o'clock |
| Glass Depth | 0.50+0.50 mm |
| Display Colors | 16.7M 50%NTSC |
| Frequency | 60Hz |
| Weight | 38.0g (Typ.) |
| Surface | Antiglare |
| Contrast Ratio | 500:1 (Typ.) (TM) |
| Display Mode | TN, Normally White, Transmissive |
| Response Time | 20 (Typ.)(Tr+Td) |
| Transmissivity | - |
| Lamp Type | No B/L |
| Touch Screen | Without |
| Application | Digital Photo Frame,Portable DVD Player,Video Door Phone,VOIP Phone |
| Driver IC | COGBuilt-in 1 source + 1 gate chips |
| Signal Interface | Parallel RGB (1 ch, 6/8-bit), 60 pinsFPC |
| Input Voltage | 3.3/10.5/20/-7V (Typ.)(VCC/AVDD/VGH/VGL) |
| Environment | Operating Temp.: -20 ~ 70 °C ;Storage Temp.: -30 ~ 80 °C |
We understand that receiving your TM062RFS02 LCD screen in a timely and hassle-free manner is important to you. In order to ensure a smooth and efficient delivery process, it is imperative that accurate shipping information is provided by our valued customers.
At our end, we strive to work with reliable shipping and logistics partners to ensure that your order reaches you on time and in perfect condition. However, we kindly request our customers to double-check their delivery address to avoid any inconvenience caused due to undeliverable addresses.
We value your trust in us and assure you that we will do our best to fulfill your order with utmost efficiency and care. Thank you for choosing us as your trusted supplier of high-quality LCD screens and we look forward to serving you again in the future.
TM062RFS02 LCD Panel Shipping and Package :
TM062RFS02 LCD Panel FAQ :
Q: Can I pay my order of TM062RFS02 via credit card ?
A: Yes!you can use your credit card through your Paypal account.
Q: Can you give me a discount if I need a large quantity of TM062RFS02 ?
A: Of course!If you make a large order, we will give you a discount.
Q: Can You declare my order of TM062RFS02 to a lower price in commercial invoice for customs ?
A: Yes , we can . pls inform us before shipping .
Q: How long is the warranty ?
A: We offer 90 days warranty .
