LCD Touch Panel Display

10.1 inch 1200*1920 TV101WUM-LM0 LCD Screen

All Category

Floor Standing Digital Signage

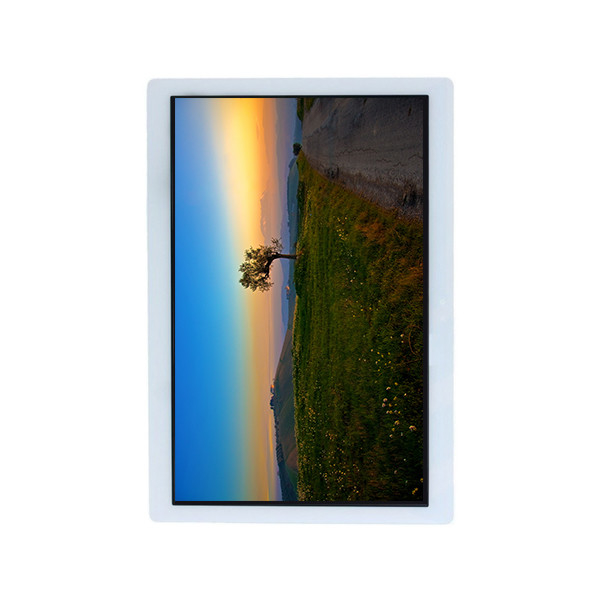

10.1 inch 1200*1920 TV101WUM-LM0 LCD Screen

Brand Name:	BOE
Model Number:	TV101WUM-LM0
MOQ:	1 pcs
Price:	Negotiable
Packaging Details:	Original packaging/conventional packaging box
Payment Terms:	T/T, Western Union

Detail Information

Product Description

Detail Information

Place of Origin:

China

Model Name:

TV101WUM-LM0

Diagonal Size:

10.1"

Panel Type:

A-Si TFT-LCD, Assembly

Resolution:

1200(RGB)×1920, WUXGA 225PPI

Pixel Format:

RGB Vertical Stripe

Active Area:

135.36(W)×216.576(H) Mm

Touch Screen:

In-Cell Touch, I²C

Application:

Pad & Tablet

Operating Mode:

HADS, Normally Black, Transmissive

Light Source:

WLED [8S4P], 30K Hours, W/O Driver

Supply Ability:

100000 Unit/Units per Month

Product Description

10.1 inch 1200*1920 TV101WUM-LM0 LCD Screen

TV101WUM-LM0 LCD Panel Product details :

Brand	BOE
Model P/N	TV101WUM-LM0
Diagonal Size	10.1"
Panel Type	a-Si TFT-LCD, Assembly
Resolution	1200(RGB)×1920, WUXGA 225PPI
Pixel Format	RGB Vertical Stripe
Active Area	135.36(W)×216.576(H) mm
Bezel Opening	-
Outline Dim.	159.36(H)×240.58(V)×5.25(D)mm
Treatment	Anti Fingerprint, Hard coating (7H)
Luminance	440 cd/m² (Typ.)
Contrast Ratio	1400:1 (Typ.) (TM)
View Direction	Symmetry
Response Time	25 (Typ.)(Tr+Td), 45 (Typ.)(G to G)
Viewing Angle	85/85/85/85 (Typ.)(CR≥10)
Operating Mode	HADS, Normally Black, Transmissive
Support Color	16.7M 98%sRGB
Light Source	WLED [8S4P], 30K hours, W/O Driver
Weight	207g (Max.)
Designed For	Pad & Tablet
Frame Rate	60Hz
Touch Panel	In-Cell Touch, I²C
Interface Type	MIPI (4 data lanes), 51 pinsConnector
Power Supply	1.8/6.0/-6.0V (Typ.)(VDDIO/AVDD/AVEE)
Environment	Operating Temperature: -20 ~ 60 °C ; Storage Temperature: -30 ~ 70 °C

TV101WUM-LM0 LCD Panel Shipment :

· We're not responsible for any accidents delays or other issues that are the resposibility of the shipping service.But we will help you to track the package until you get.

· Please make sure to double check your address before completing your payment.

· An email will be sent as package is process for shipment .We will provide tracking number for you to check the package online.

· Customers are responsible for customs taxes and duties where applicable.

· Any import charges or fees are the buyer's responsibility. If the package can't be delivered because of the buyers reason(including refusing to sign), buyer should afford all the extra cost!

TV101WUM-LM0 LCD Panel Shipping and Package :

10.1 inch 1200*1920 TV101WUM-LM0 LCD Screen 0

TV101WUM-LM0 LCD Panel Shipment Information :

Shipment Policies

Responsibility for Delays and Issues: While we are committed to helping you track your package, please note that we are not responsible for any accidents, delays, or other issues that are the responsibility of the shipping service. We will, however, assist you in tracking your package until it reaches you.

Address Verification: It is crucial to double-check your shipping address before completing your payment. Ensuring that the address is accurate helps prevent delivery issues and delays.

Shipping Notification: Once your package is processed for shipment, you will receive an email notification. This email will include the tracking number, which you can use to monitor your package's status online.

Customs Taxes and Duties: Customers are responsible for any customs taxes and duties applicable in their country. Please be aware of your local regulations regarding import charges to avoid unexpected fees.

Import Charges: Any additional import charges or fees imposed by your country are the buyer's responsibility. If a package cannot be delivered due to reasons attributable to the buyer (such as refusal to sign for the package), the buyer will be responsible for any additional costs incurred.

TV101WUM-LM0 LCD Panel Return and Warranty Information :

Return Policy

Inspection and Exchange: All goods undergo two inspections before shipment to guarantee quality. If you are not satisfied with your purchase, you may exchange the item within one week. To initiate an exchange, please contact us within 24 hours of receiving your purchase.

Condition of Return Items: Items must be returned in their original condition, including the box and all accessories. Items showing signs of man-made defects, such as breakage or scratches, are not eligible for return or exchange.

Return Shipping: For returning any items, please use EMS (Express Mail Service) or your local postal service to send the item back to us.

Warranty Policy

Warranty Duration: All items come with a six-month warranty, covering any issues not caused by human error or damage. If your item has a defect not caused by man-made problems, we will replace it for you free of charge.

Best After-Sale Service: We pride ourselves on providing excellent after-sale service. Should any problems arise, we are dedicated to resolving them to ensure customer satisfaction.

TV101WUM-LM0 LCD Panel FAQ :

Q: How to order lcd panel TV101WUM-LM0 ?

A: We accept T/T , Paypal , western union .

Q: Can you tested the TV101WUM-LM0 before shipping ?

A: Of course , lcd screen TV101WUM-LM0 was Strictly tested before shipping.

Q: What happen if the TV101WUM-LM0 received can't work ?

A: TV101WUM-LM0 lcd panel was tesed before shipping.If happen that , pls check all the connect cable again,If still has problems ,we accept exchange or return panel .

Q: How long the warranty of the TV101WUM-LM0 ?

A: 90 days .
