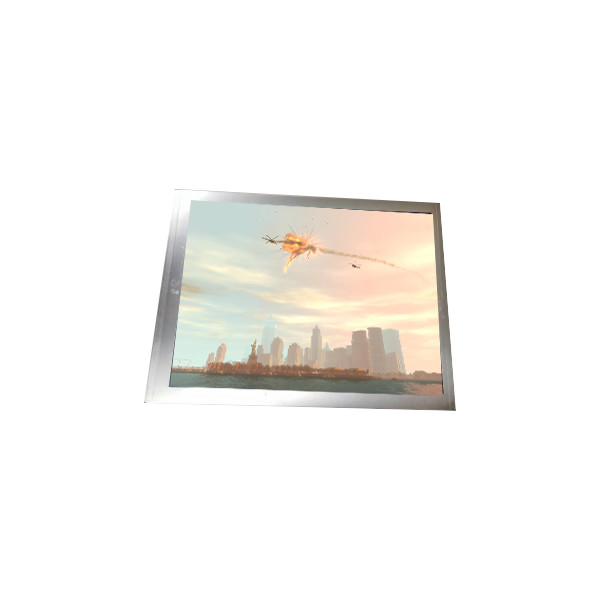

QV080X0B-N80 8.0 inch 768*1024 LCD Screen Display
Product Details:
| Place of Origin: | China |
| Brand Name: | BOE |
| Model Number: | QV080X0B-N80 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Original packaging/conventional packaging box |
| Delivery Time: | 7 Days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 100000 Unit/Units per Month |
|
Detail Information |
|||
| Model Name: | QV080X0B-N80 | Diagonal Size: | 8.0" |
|---|---|---|---|
| Panel Type: | A-Si TFT-LCD, CELL , FOG | Resolution: | 768(RGB)×1024, WXGA 160PPI |
| Pixel Format: | RGB Vertical Stripe | Active Area: | 121.88(W)×162.5(H) Mm |
| Support Color: | 16.7M 71% NTSC | Application: | Industrial |
| View Direction: | Symmetry | Response Time: | 30 (Typ.)(Tr+Td) |
Product Description
QV080X0B-N80 8.0 inch 768*1024 LCD Screen Display
QV080X0B-N80 LCD Panel Product details :
| Brand | BOE |
| Model P/N | QV080X0B-N80 |
| Diagonal Size | 8.0" |
| Panel Type | a-Si TFT-LCD, CELL , FOG |
| Resolution | 768(RGB)×1024, WXGA 160PPI |
| Pixel Format | RGB Vertical Stripe |
| Active Area | 121.88(W)×162.5(H) mm |
| Bezel Opening | - |
| Outline Dim. | 126.08(H)×171.709(V) ×1.14(D) mm |
| Treatment | - |
| Luminance | 0 cd/m² |
| Contrast Ratio | 1500:1 (Typ.) (TM) |
| View Direction | Symmetry |
| Response Time | 30 (Typ.)(Tr+Td) |
| Viewing Angle | 85/85/85/85 (Typ.)(CR≥10) |
| Operating Mode | ADS, Normally Black, Transmissive |
| Plate Thickness | 0.40+0.40 mm |
| Transmittance | 5.4% (Typ.)(with Polarizer) |
| Support Color | 16.7M 71% NTSC |
| Light Source | No B/L |
| Weight | 58.0g (Typ.) |
| Designed For | Industrial |
| Frame Rate | - |
| Touch Panel | Without |
| D-IC Detail | COG Built-in NV3051F1 |
| Interface Type | MIPI (4 data lanes) , 40 pins Connector |
| Power Supply | 3.3V (Typ.) |
| Environment | Operating Temperature: 0 ~ 50 °C ; Storage Temperature: -20 ~ 60 °C |
