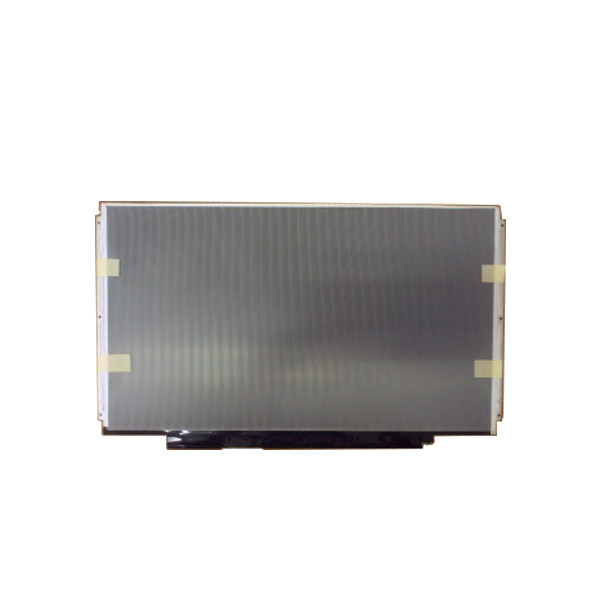

B133XW03 V4 13.3 inch 1366*768 LCD Laptop Screen
Product Details:
| Place of Origin: | China |
| Brand Name: | AUO |
| Model Number: | B133XW03 V4 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Original packaging/conventional packaging box |
| Delivery Time: | 7 Days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 100000 Unit/Units per Month |
|
Detail Information |
|||
| Model Name: | B133XW03 V4 | Diagonal Size: | 13.3" |
|---|---|---|---|
| Panel Type: | A-Si TFT-LCD, LCM | Resolution: | 1366(RGB)×768, WXGA 118PPI |
| Pixel Format: | RGBW Vertical Stripe | Active Area: | 293.42(W)×164.97(H) Mm |
| Work Mode: | TN, Normally White, Transmissive | Support Color: | 262K 60%NTSC |
| View Direction: | 6 O'clock | Used For: | Laptop |
Product Description
B133XW03 V4 13.3 inch 1366*768 LCD Laptop Screen
B133XW03 V4 LCD Panel Product details :
| Brand | AUO |
| Model P/N | B133XW03 V4 |
| Diagonal Size | 13.3" |
| Panel Type | a-Si TFT-LCD, LCM |
| Resolution | 1366(RGB)×768, WXGA 118PPI |
| Pixel Format | RGB Vertical Stripe |
| Active Area | 293.42(W)×164.97(H) mm |
| Bezel Opening | - |
| Outline Size | 314.1(W)×188.7(H)×3.6(D) mm |
| Surface | Glare (Haze 0%), Hard coating (3H) |
| Brightness | 200 cd/m² (Typ.) |
| Contrast Ratio | 500:1 (Typ.) (TM) |
| Viewing Angle | 45/45/15/35 (Typ.)(CR≥10) |
| Display Mode | TN, Normally White, Transmissive |
| Best View on | 6 o'clock |
| Response Time | 8 (Typ.)(Tr+Td) |
| Display Colors | 262K 60%NTSC |
| Lamp Type | WLED, 15K hours, With LED Driver |
| Frequency | 60Hz |
| Touch Screen | Without |
| Shape Style | Flat (PCBA Flat, T3.4~4.0mm) |
| Application | Laptop |
| Signal Interface | LVDS (1 ch, 6-bit), 40 pinsConnector |
| Input Voltage | 3.3V (Typ.) |
| Environment | Operating Temp.: 0 ~ 50 °C ; Storage Temp.: -20 ~ 60 °C |
B133XW03 V4 LCD Screen - Extremely Important Information :
1. Product Image and Description Review:
Carefully examine the product image and description provided. This will help you verify that the screen matches your expectations and requirements.
2. Key Specifications Match:
Screen Size: Ensure that the size of the LCD screen matches the specifications required by your device.
Resolution: Confirm that the resolution of the screen is the same as what your device supports. An incorrect resolution can result in poor display quality or incompatibility.
Connector Type: The connector type must be identical to your current screen's connector. Using a screen with a different connector type will prevent it from working properly with your device.
B133XW03 V4 LCD Screen - Also Note :
1. 100% Compatible Screen Guarantee:
You will receive a screen that is 100% compatible with your device.
The exact brand and part number of the screen provided may vary depending on market availability. Rest assured, the replacement screen will meet the necessary specifications for your device.
2. Professional Installation Recommended:
For optimal performance and to avoid any potential damage, we strongly recommend that the screen be installed by a professional repair shop or an experienced individual.
Proper installation is crucial to ensure the screen functions correctly and to maintain the integrity of your device.
B133XW03 V4 LCD Panel Shipping and Package :
B133XW03 V4 LCD Screen - Shipping Information :
1. Order Processing and Delivery Time:
We will dispatch your goods within 1-3 working days after receiving your order.
Typically, you can expect to receive your order within 27 calendar days from the shipping date.
2. Accurate Shipping Information:
Ensure that your shipping details, including the address, postal code, phone number, and contact person, are accurate before placing your order.
If you need the order to be sent to a different address, please inform us in advance and leave a message in our transaction. This will help us to make the necessary adjustments promptly.
Following these guidelines will help ensure a smooth shipping process and timely delivery of your LC490EGE-DHM1 LCD screen.
B133XW03 V4 LCD Panel FAQ :
Q: Can you give me a discount if I need a large quantity of B133XW03 V4 ?
A: Of course!If you make a large order, we will give you a discount.
Q: Can I pay my order of B133XW03 V4 via credit card ?
A: Yes!you can use your credit card through your Paypal account.
Q: How can I trace my order of B133XW03 V4 ?
A: we will give you tracking number then you can trace your order from website.
Q: Do you accept sample orders of B133XW03 V4 ?
A: Of course!sample order is welcome !
