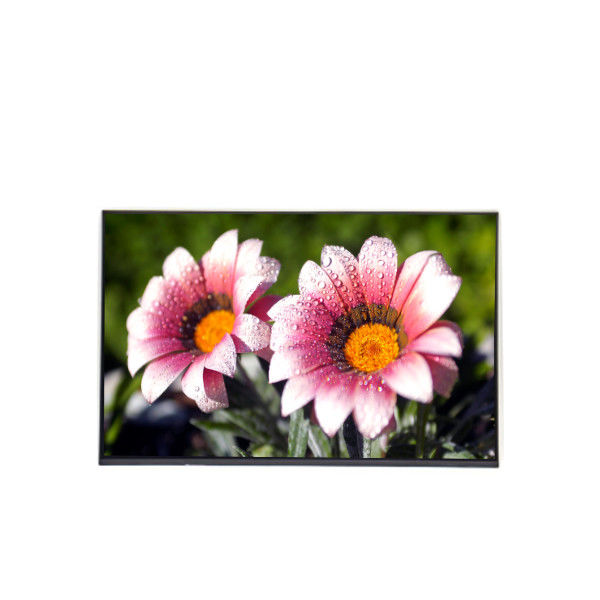

Name: M190PP01 V0 original 19.0 inch 1440*900 LCD Panel Screen
Brand: Shenzhen Yongsheng Innovation Technology Co., Ltd
SKU: M190PP01 V0
Availability: InStock

Brand Name:	AUO
Model Number:	M190PP01 V0
MOQ:	1 pcs
Price:	Negotiable
Packaging Details:	Original packaging/conventional packaging box
Payment Terms:	T/T, Western Union

Detail Information

Product Description

Detail Information

Place of Origin:

China

Model Name:

M190PP01 V0

Diagonal Size:

19.0"

Panel Type:

A-Si TFT-LCD, LCM

Resolution:

1440(RGB)×900, WXGA+ 89PPI

Pixel Format:

RGB Vertical Stripe

Active Area:

408.24(W)×255.15(H) Mm

Work Mode:

TN, Normally White, Transmissive

Support Color:

16.7M 73%NTSC

Contrast Ratio:

1000:1 (Typ.) (TM)

Used For:

Desktop Monitor

Supply Ability:

100000 Unit/Units per Month

Product Description

M190PP01 V0 original 19.0 inch 1440*900 LCD Panel Screen

M190PP01 V0 LCD Panel Product details :

Brand	AUO
Model P/N	M190PP01 V0
Diagonal Size	19.0"
Panel Type	a-Si TFT-LCD, LCM
Resolution	1440(RGB)×900, WXGA+ 89PPI
Pixel Format	RGB Vertical Stripe
Active Area	408.24(W)×255.15(H) mm
Bezel Opening	412.24(W)×259.15(H) mms
Outline Dim.	428(H)×278(V)×18.9(D) mm
Treatment	Antiglare, Hard coating (3H)
Luminance	300 cd/m² (Typ.)
Contrast Ratio	1000:1 (Typ.) (TM)
View Direction	-
Response Time	3.4/1.6 (Typ.)(Tr/Td)
Viewing Angle	85/85/80/80 (Typ.)(CR≥10)
Operating Mode	TN, Normally White, Transmissive
Support Color	16.7M 73%NTSC
Light Source	CCFL [4 pcs], 50K hours, W/O Driver
Weight	2.12Kgs (Typ.)
Designed For	Desktop Monitor
Frame Rate	60Hz
Touch Panel	Without
Interface Type	eDP (2 Lanes), eDP1.3, 30 pinsConnector
Power Supply	5.0V (Typ.)
Environment	Operating Temperature: 0 ~ 50 °C ; Storage Temperature: -20 ~ 60 °C

M190PP01 V0 LCD Screen - Extremely Important Information :

1. Product Image and Description Review:

Carefully examine the product image and description provided. This will help you verify that the screen matches your expectations and requirements.

2. Key Specifications Match:

Screen Size: Ensure that the size of the LCD screen matches the specifications required by your device.

Resolution: Confirm that the resolution of the screen is the same as what your device supports. An incorrect resolution can result in poor display quality or incompatibility.

Connector Type: The connector type must be identical to your current screen's connector. Using a screen with a different connector type will prevent it from working properly with your device.

M190PP01 V0 LCD Screen - Also Note :

1. 100% Compatible Screen Guarantee:

You will receive a screen that is 100% compatible with your device.

The exact brand and part number of the screen provided may vary depending on market availability. Rest assured, the replacement screen will meet the necessary specifications for your device.

2. Professional Installation Recommended:

For optimal performance and to avoid any potential damage, we strongly recommend that the screen be installed by a professional repair shop or an experienced individual.

Proper installation is crucial to ensure the screen functions correctly and to maintain the integrity of your device.

M190PP01 V0 LCD Panel Shipping and Package :

M190PP01 V0 original 19.0 inch 1440*900 LCD Panel Screen 0

M190PP01 V0 LCD Screen - Shipping Information :

1. Order Processing and Delivery Time:

We will dispatch your goods within 1-3 working days after receiving your order.

Typically, you can expect to receive your order within 27 calendar days from the shipping date.

2. Accurate Shipping Information:

Ensure that your shipping details, including the address, postal code, phone number, and contact person, are accurate before placing your order.

If you need the order to be sent to a different address, please inform us in advance and leave a message in our transaction. This will help us to make the necessary adjustments promptly.

Following these guidelines will help ensure a smooth shipping process and timely delivery of your M190PP01 V0 LCD screen.

M190PP01 V0 LCD Panel FAQ :

Q: Can You declare my order of M190PP01 V0 to a lower price in commercial invoice for customs ?

A: Yes , we can . pls inform us before shipping .

Q: How can I trace my order of M190PP01 V0 ?

A: we will give you tracking number then you can trace your order from website.

Q: How long will I receive my goods M190PP01 V0 ?

A: Generally speaking ,It will take 3-8days to your hand by DHL/FEDEX/UPS/TNT.

Q: How to make payment of M190PP01 V0 ?

A: We accept T/T , Paypal , western union .
