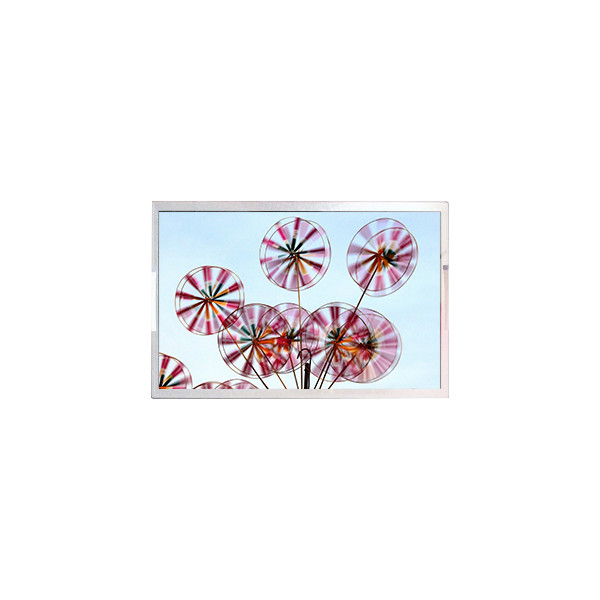

Name: TM150TDSG71-72 15.0 inch 1024*768 tft LCD Panel Display
Brand: Shenzhen Yongsheng Innovation Technology Co., Ltd
SKU: TM150TDSG71-72
Availability: InStock

Brand Name:	TIANMA
Model Number:	TM150TDSG71-72
MOQ:	1 pcs
Price:	Negotiable
Packaging Details:	Original packaging/conventional packaging box
Payment Terms:	T/T, Western Union

Detail Information

Product Description

Detail Information

Place of Origin:

China

Model Name:

TM150TDSG71-72

Diagonal Size:

15.0"

Panel Type:

A-Si TFT-LCD, LCM

Resolution:

1024(RGB)×768, XGA 85PPI

Pixel Format:

RGB Vertical Stripe

Active Area:

304.128(W)×228.096(H) Mm

Work Mode:

TN, Normally White, Transmissive

Support Color:

262K/16.2M 62% NTSC

View Direction:

6 O'clock

Used For:

Industrial

Supply Ability:

100000 Unit/Units per Month

Product Description

TM150TDSG71-72 15.0 inch 1024*768 tft LCD Panel Display

TM150TDSG71-72 LCD Panel Product details :

Brand	TIANMA
Model P/N	TM150TDSG71-72
Diagonal Size	15.0"
Panel Type	a-Si TFT-LCD, LCM
Resolution	1024(RGB)×768, XGA 85PPI
Pixel Format	RGB Vertical Stripe
Active Area	304.128(W)×228.096(H) mm
Bezel Opening	307.4(W)×231.3(H) mm
Outline Dim.	326.5×253.5×12.1 (H×V×D)
Treatment	Antiglare
Luminance	450 cd/m² (Typ.)
Contrast Ratio	800 : 1 (Typ.) (TM)
View Direction	6 o'clock
Response Time	8 (Typ.)(Tr+Td) ms
Viewing Angle	80/80/80/80 (Typ.)(CR≥10)
Operating Mode	TN, Normally White, Transmissive
Support Color	262K/16.2M 62% NTSC
Light Source	WLED , 50K hours , With LED Driver
Weight	1.00Kgs (Typ.)
Designed For	Industrial
Frame Rate	60Hz
Touch Panel	Without
Interface Type	LVDS (1 ch, 6/8-bit) , Connector 20 pins
Power Supply	3.3V (Typ.)
Environment	Storage Temp.: -30 ~ 80 °C Operating Temp.: -20 ~ 70 °C

TM150TDSG71-72 LCD Screen - Extremely Important Information :

1. Product Image and Description Review:

Carefully examine the product image and description provided. This will help you verify that the screen matches your expectations and requirements.

2. Key Specifications Match:

Screen Size: Ensure that the size of the LCD screen matches the specifications required by your device.

Resolution: Confirm that the resolution of the screen is the same as what your device supports. An incorrect resolution can result in poor display quality or incompatibility.

Connector Type: The connector type must be identical to your current screen's connector. Using a screen with a different connector type will prevent it from working properly with your device.

TM150TDSG71-72 LCD Screen - Also Note :

1. 100% Compatible Screen Guarantee:

You will receive a screen that is 100% compatible with your device.

The exact brand and part number of the screen provided may vary depending on market availability. Rest assured, the replacement screen will meet the necessary specifications for your device.

2. Professional Installation Recommended:

For optimal performance and to avoid any potential damage, we strongly recommend that the screen be installed by a professional repair shop or an experienced individual.

Proper installation is crucial to ensure the screen functions correctly and to maintain the integrity of your device.

TM150TDSG71-72 LCD Panel Shipping and Package :

TM150TDSG71-72 15.0 inch 1024*768 tft LCD Panel Display 0

TM150TDSG71-72 LCD Screen - Shipping Information :

1. Order Processing and Delivery Time:

We will dispatch your goods within 1-3 working days after receiving your order.

Typically, you can expect to receive your order within 27 calendar days from the shipping date.

2. Accurate Shipping Information:

Ensure that your shipping details, including the address, postal code, phone number, and contact person, are accurate before placing your order.

If you need the order to be sent to a different address, please inform us in advance and leave a message in our transaction. This will help us to make the necessary adjustments promptly.

Following these guidelines will help ensure a smooth shipping process and timely delivery of your TM150TDSG71-72 LCD screen.

TM150TDSG71-72 LCD Panel FAQ :

Q: Can You declare my order of TM150TDSG71-72 to a lower price in commercial invoice for customs ?

A: Yes , we can . pls inform us before shipping .

Q: How long is the warranty ?

A: We offer 90days warranty .

Q: Can I pay my order of TM150TDSG71-72 via credit card ?

A: Yes!you can use your credit card through your Paypal account.

Q: Can you give me a discount if I need a large quantity of TM150TDSG71-72 ?

A: Of course!If you make a large order, we will give you a discount.
