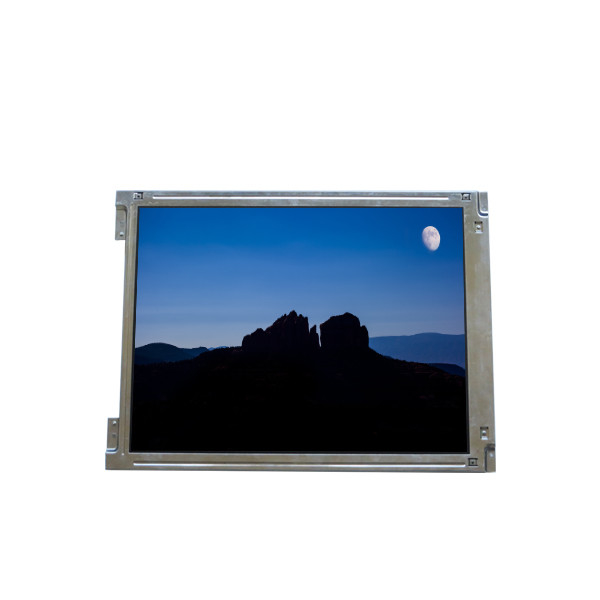

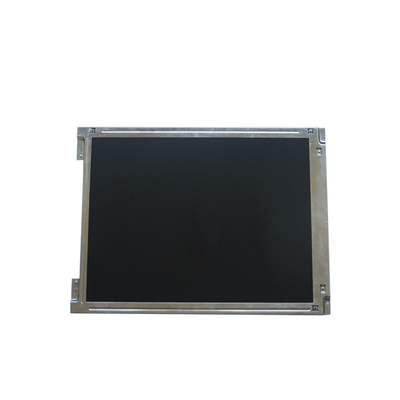

L150X2M-1 EC-2 15.0 inch 1024*768 LCD Panel Display for Desktop Monitor
Product Details:
| Place of Origin: | China |
| Brand Name: | AUO |
| Model Number: | L150X2M-1 EC-2 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Original packaging/conventional packaging box |
| Delivery Time: | 7 Days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 100000 Unit/Units per Month |
|
Detail Information |
|||
| Model Name: | L150X2M-1 EC-2 | Diagonal Size: | 15.0" |
|---|---|---|---|
| Panel Type: | A-Si TFT-LCD, LCM | Resolution: | 1024(RGB)×768, XGA 85PPI |
| Pixel Format: | RGB Vertical Stripe | Active Area: | 304.128(W)×228.096(H) Mm |
| Work Mode: | TN, Normally White, Transmissive | Support Color: | 262K 55%NTSC |
| Frequency: | 60Hz | Used For: | Desktop Monitor |
Product Description
L150X2M-1 EC-2 15.0 inch 1024*768 LCD Panel Display for Desktop Monitor
L150X2M-1 EC-2 LCD Panel Product details :
| Brand | ACER |
| Model P/N | L150X2M-1 EC-2 |
| Diagonal Size | 15.0" |
| Panel Type | a-Si TFT-LCD, LCM |
| Resolution | 1024(RGB)×768, XGA 85PPI |
| Pixel Format | RGB Vertical Stripe |
| Active Area | 304.128(W)×228.096(H) mm |
| Bezel Opening | 308.1(W)×232.1(H) mm |
| Outline Size | 336(W)×249(H)×14(D) mm |
| Brightness | 250 cd/m² (Typ.) |
| Viewing Angle | 75/75/50/50 (Typ.)(CR≥10) |
| Best View on | - |
| Display Colors | 262K 55%NTSC |
| Frequency | 60Hz |
| Weight | 1.20Kgs (Typ.) |
| Surface | - |
| Contrast Ratio | 300:1 (Typ.) (TM) |
| Display Mode | TN, Normally White, Transmissive |
| Response Time | 11/24 (Typ.)(Tr/Td) |
| Lamp Type | 2 pcs CCFL, Without Driver |
| Touch Screen | Without |
| Application | Desktop Monitor |
| Signal Interface | TTL (2 ch, 6-bit), 80 pinsConnector |
| Input Voltage | 3.3V (Typ.)(VDD) |
| Environment | Operating Temp.: 0 ~ 50 °C ;Storage Temp.: -20 ~ 60 °C |
L150X2M-1 EC-2 LCD Screen - Extremely Important Information :
1. Product Image and Description Review:
Carefully examine the product image and description provided. This will help you verify that the screen matches your expectations and requirements.
2. Key Specifications Match:
Screen Size: Ensure that the size of the LCD screen matches the specifications required by your device.
Resolution: Confirm that the resolution of the screen is the same as what your device supports. An incorrect resolution can result in poor display quality or incompatibility.
Connector Type: The connector type must be identical to your current screen's connector. Using a screen with a different connector type will prevent it from working properly with your device.
L150X2M-1 EC-2 LCD Screen - Also Note :
1. 100% Compatible Screen Guarantee:
You will receive a screen that is 100% compatible with your device.
The exact brand and part number of the screen provided may vary depending on market availability. Rest assured, the replacement screen will meet the necessary specifications for your device.
2. Professional Installation Recommended:
For optimal performance and to avoid any potential damage, we strongly recommend that the screen be installed by a professional repair shop or an experienced individual.
Proper installation is crucial to ensure the screen functions correctly and to maintain the integrity of your device.
L150X2M-1 EC-2 LCD Panel Shipping and Package :
L150X2M-1 EC-2 LCD Screen - Shipping Information :
1. Order Processing and Delivery Time:
We will dispatch your goods within 1-3 working days after receiving your order.
Typically, you can expect to receive your order within 27 calendar days from the shipping date.
2. Accurate Shipping Information:
Ensure that your shipping details, including the address, postal code, phone number, and contact person, are accurate before placing your order.
If you need the order to be sent to a different address, please inform us in advance and leave a message in our transaction. This will help us to make the necessary adjustments promptly.
Following these guidelines will help ensure a smooth shipping process and timely delivery of your L150X2M-1 EC-2 LCD screen.
L150X2M-1 EC-2 LCD Panel FAQ :
Q: Can you tested the L150X2M-1 EC-2 before shipping ?
A: Of course , our lcd panel L150X2M-1 EC-2 was Strictly tested before shipping.
Q: How to order L150X2M-1 EC-2 ?
A: We accept T/T , Paypal , western union .
Q: How long the warranty of the lcd L150X2M-1 EC-2 ?
A: 90 days .
Q: What happen if the lcd panel L150X2M-1 EC-2 I received can't work ?
A: L150X2M-1 EC-2 was tesed before shipping.If happen that , pls check all the connect cable again,If still has problems ,we accept exchange or return panel .
