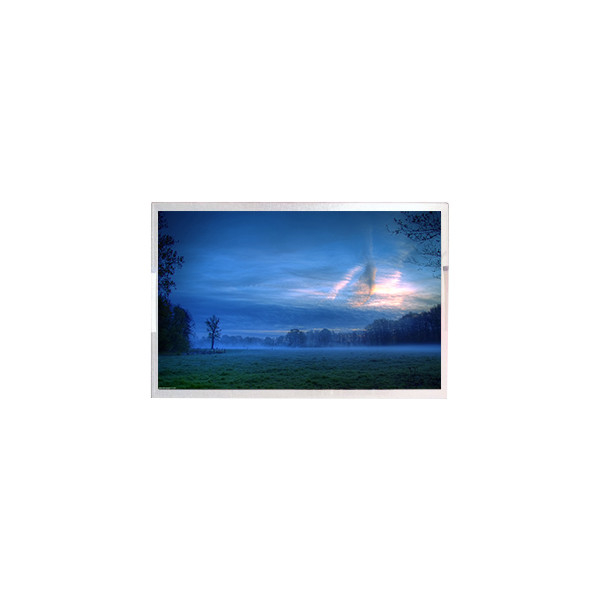

Name: HSD070JFW4-C10-P 7.0 inch 1024*600 LCD Panel Display
Brand: Shenzhen Yongsheng Innovation Technology Co., Ltd
SKU: HSD070JFW4-C10-P
Availability: InStock

Brand Name:	HannStar
Model Number:	HSD070JFW4-C10-P
MOQ:	1 pcs
Price:	Negotiable
Packaging Details:	Original packaging/conventional packaging box
Payment Terms:	T/T, Western Union

Detail Information

Product Description

Detail Information

Place of Origin:

China

Model Name:

HSD070JFW4-C10-P

Diagonal Size:

7.0"

Panel Type:

A-Si TFT-LCD, LCM

Resolution:

1024(RGB)×600, WSVGA 170PPI

Pixel Format:

RGB Vertical Stripe

Active Area:

154.21(W)×85.92(H) Mm

Work Mode:

IPS Pro, Normally Black, Transmissive

Support Color:

16.7M 50% NTSC

View Direction:

Symmetry

Used For:

Outdoor High Brightness /Automotive Display

Supply Ability:

100000 Unit/Units per Month

Product Description

HSD070JFW4-C10-P 7.0 inch 1024*600 LCD Panel Display

HSD070JFW4-C10-P LCD Panel Product details :

Brand	HannStar
Model P/N	HSD070JFW4-C10-P
Diagonal Size	7.0"
Panel Type	a-Si TFT-LCD, LCM
Resolution	1024(RGB)×600, WSVGA 170PPI
Pixel Format	RGB Vertical Stripe
Active Area	154.21(W)×85.92(H) mm
Bezel Opening	-
Outline Dim.	164.9(W)×100(H) ×5.6(D) mm
Treatment	Antiglare
Luminance	1000 cd/m² (Typ.)
Contrast Ratio	800:1 (Typ.) (TM)
View Direction	Symmetry
Response Time	30 (Typ.)(Tr+Td)
Viewing Angle	80/80/80/80 (Typ.)(CR≥10)
Operating Mode	IPS Pro, Normally Black, Transmissive
Support Color	16.7M 50% NTSC
Light Source	3S10P WLED , 30K hours , Without Driver
Weight	TBD
Designed For	Outdoor High Brightness /Automotive Display
Frame Rate	60Hz
Touch Panel	Without
Interface Type	Parallel RGB (1 ch, 8-bit) , 50 pins FPC
Power Supply	3.3V (Typ.)
Environment	Operating Temp.: -30 ~ 85 °C ; Storage Temp.: -30 ~ 85 °C ; Vibration Level: 2.9G (28.4 m/s²)

HSD070JFW4-C10-P LCD Screen - Extremely Important Information :

1. Product Image and Description Review:

Carefully examine the product image and description provided. This will help you verify that the screen matches your expectations and requirements.

2. Key Specifications Match:

Screen Size: Ensure that the size of the LCD screen matches the specifications required by your device.

Resolution: Confirm that the resolution of the screen is the same as what your device supports. An incorrect resolution can result in poor display quality or incompatibility.

Connector Type: The connector type must be identical to your current screen's connector. Using a screen with a different connector type will prevent it from working properly with your device.

HSD070JFW4-C10-P LCD Screen - Also Note :

1. 100% Compatible Screen Guarantee:

You will receive a screen that is 100% compatible with your device.

The exact brand and part number of the screen provided may vary depending on market availability. Rest assured, the replacement screen will meet the necessary specifications for your device.

2. Professional Installation Recommended:

For optimal performance and to avoid any potential damage, we strongly recommend that the screen be installed by a professional repair shop or an experienced individual.

Proper installation is crucial to ensure the screen functions correctly and to maintain the integrity of your device.

HSD070JFW4-C10-P LCD Panel Shipping and Package :

HSD070JFW4-C10-P 7.0 inch 1024*600 LCD Panel Display 0

HSD070JFW4-C10-PLCD Screen - Shipping Information :

1. Order Processing and Delivery Time:

We will dispatch your goods within 1-3 working days after receiving your order.

Typically, you can expect to receive your order within 27 calendar days from the shipping date.

2. Accurate Shipping Information:

Ensure that your shipping details, including the address, postal code, phone number, and contact person, are accurate before placing your order.

If you need the order to be sent to a different address, please inform us in advance and leave a message in our transaction. This will help us to make the necessary adjustments promptly.

Following these guidelines will help ensure a smooth shipping process and timely delivery of your HSD070JFW4-C10-P LCD screen.

HSD070JFW4-C10-P LCD Panel FAQ :

Q: How long is the warranty ?

A: We offer 90days warranty .

Q: Can You declare my order of HSD070JFW4-C10-P to a lower price in commercial invoice for customs ?

A: Yes , we can . pls inform us before shipping .

Q: How to make payment of HSD070JFW4-C10-P ?

A: We accept T/T , Paypal , western union .

Q: Can you give me a discount if I need a large quantity of HSD070JFW4-C10-P ?

A: Of course!If you make a large order, we will give you a discount.
