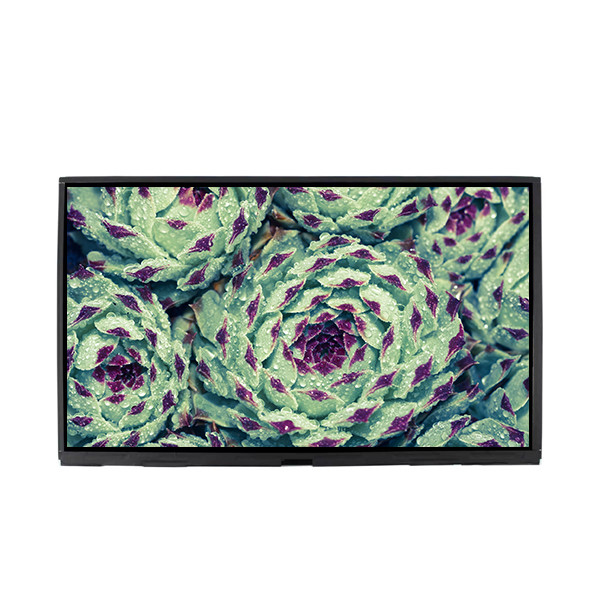

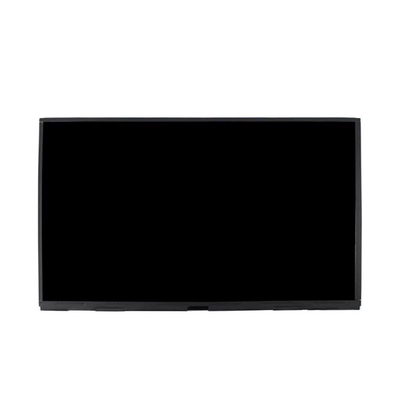

Name: G156XTT01.3 15.6 inch lcd panel original for Industrial screen
Brand: Shenzhen Yongsheng Innovation Technology Co., Ltd
SKU: G156XTT01.3
Availability: InStock

Brand Name:	AUO
Model Number:	G156XTT01.3
MOQ:	1 pcs
Price:	Negotiable
Packaging Details:	Original packaging/conventional packaging box
Payment Terms:	T/T, Western Union

Detail Information

Product Description

Detail Information

Place of Origin:

China

Model Name:

G156XTT01.3

Diagonal Size:

15.6"

Panel Type:

A-Si TFT-LCD, LCM

Resolution:

1366(RGB)×768, WXGA 100PPI

Pixel Format:

RGB Vertical Stripe

Active Area:

344.232(W)×193.536(H) Mm

Work Mode:

TN, Normally White, Transmissive

Support Color:

16.2M

Lamp Type:

WLED, With LED Driver

Used For:

Industrial

Supply Ability:

100000 Unit/Units per Month

Product Description

G156XTT01.3 15.6 inch lcd panel original for Industrial screen

G156XTT01.3 LCD Panel Product details :

Brand	AUO
Model P/N	G156XTT01.3
Diagonal Size	15.6"
Panel Type	a-Si TFT-LCD, LCM
Resolution	1366(RGB)×768, WXGA 100PPI
Pixel Format	RGB Vertical Stripe
Active Area	344.232(W)×193.536(H) mm
Bezel Opening	-
Brightness	-
Contrast Ratio	500:1 (Typ.) (TM)
Viewing Angle	85/85/80/80 (Typ.)(CR≥10)
Display Mode	TN, Normally White, Transmissive
Best View on	-
Response Time	6/2 (Typ.)(Tr/Td), 8 (Typ.)(G to G)
Display Colors	16.2M
Lamp Type	WLED, With LED Driver
Frequency	60Hz
Touch Screen	PCAP
Panel Weight	-
Application	Industrial
Signal Interface	LVDS (1 ch, 8-bit), 30 pinsConnector
Input Voltage	5.0V (Typ.)
Environment	Operating Temp.: 0 ~ 60 °C ; Storage Temp.: -20 ~ 60 °C

G156XTT01.3 LCD Screen - Extremely Important Information :

1. Product Image and Description Review:

Carefully examine the product image and description provided. This will help you verify that the screen matches your expectations and requirements.

2. Key Specifications Match:

Screen Size: Ensure that the size of the LCD screen matches the specifications required by your device.

Resolution: Confirm that the resolution of the screen is the same as what your device supports. An incorrect resolution can result in poor display quality or incompatibility.

Connector Type: The connector type must be identical to your current screen's connector. Using a screen with a different connector type will prevent it from working properly with your device.

G156XTT01.3 LCD Screen - Also Note :

1. 100% Compatible Screen Guarantee:

You will receive a screen that is 100% compatible with your device.

The exact brand and part number of the screen provided may vary depending on market availability. Rest assured, the replacement screen will meet the necessary specifications for your device.

2. Professional Installation Recommended:

For optimal performance and to avoid any potential damage, we strongly recommend that the screen be installed by a professional repair shop or an experienced individual.

Proper installation is crucial to ensure the screen functions correctly and to maintain the integrity of your device.

G156XTT01.3 LCD Panel Shipping and Package :

G156XTT01.3 15.6 inch lcd panel original for Industrial screen 0

G156XTT01.3 LCD Screen - Shipping Information :

1. Order Processing and Delivery Time:

We will dispatch your goods within 1-3 working days after receiving your order.

Typically, you can expect to receive your order within 27 calendar days from the shipping date.

2. Accurate Shipping Information:

Ensure that your shipping details, including the address, postal code, phone number, and contact person, are accurate before placing your order.

If you need the order to be sent to a different address, please inform us in advance and leave a message in our transaction. This will help us to make the necessary adjustments promptly.

Following these guidelines will help ensure a smooth shipping process and timely delivery of your LC490DQF-FHA1 LCD screen.

G156XTT01.3 LCD Panel FAQ :

Q: When will my order 15.6 inch lcd panel G156XTT01.3 ship?

A: The order are shipped within 1-2 working days after received the payment.

Q: Can you test 15.6 inch lcd panel G156XTT01.3 before shipping?

A: Don't Worry , The G156XTT01.3 was tested ok before shipping.

Q: What happen if G156XTT01.3 I received can't work ?

A: The G156XTT01.3 will be tested ok before shipping .If happen that , pls check all the connect cable again,If still has problems ,we accept exchange or return panel.
