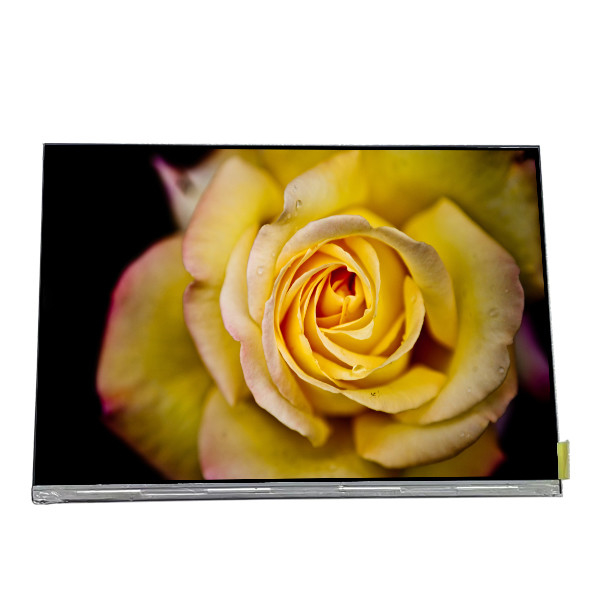

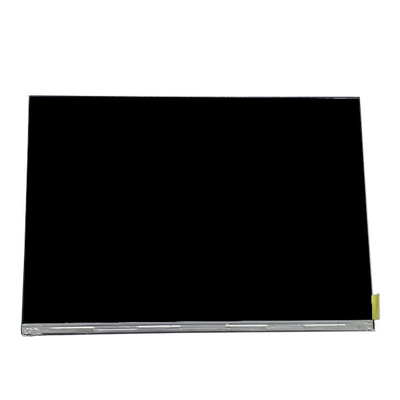

G100UAN01.0 10.0 inch 1800*1200 LCD Panel Display
Product Details:
| Place of Origin: | China |
| Brand Name: | AUO |
| Model Number: | G100UAN01.0 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Original packaging/conventional packaging box |
| Delivery Time: | 7 Days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 100000 Unit/Units per Month |
|
Detail Information |
|||
| Model Name: | G100UAN01.0 | Diagonal Size: | 10.0" |
|---|---|---|---|
| Panel Type: | A-Si TFT-LCD, LCM | Resolution: | 1800(RGB)×1200 216PPI |
| Pixel Format: | RGB Vertical Stripe | Active Area: | 211.14(W)×140.76(H) Mm |
| Work Mode: | AHVA, Normally Black, Transmissive | Support Color: | 16.7M 45% NTSC |
| View Direction: | Symmetry | Used For: | Industrial |
Product Description
G100UAN01.0 10.0 inch 1800*1200 LCD Panel Display
G100UAN01.0 LCD Panel Product details :
| Brand | AUO |
| Model P/N | G100UAN01.0 |
| Diagonal Size | 10.0" |
| Panel Type | a-Si TFT-LCD, LCM |
| Resolution | 1800(RGB)×1200 216PPI |
| Pixel Format | RGB Vertical Stripe |
| Active Area | 211.14(W)×140.76(H) mm |
| Bezel Opening | - |
| Outline(mm) | 216.14(H)×153.56(V) ×4(D) mm |
| Treatment | Hard coating (3H) |
| Luminance | 400 cd/m² (Typ.) |
| Contrast Ratio | 1200 : 1 (Min.) (TM) |
| Viewing Angle | 85/85/85/85 (Typ.)(CR≥10) |
| Response | 27 (Typ.)(Tr+Td) |
| Good View at | Symmetry |
| Work Mode | AHVA, Normally Black, Transmissive |
| Color Depth | 16.7M 45% NTSC |
| Backlight | WLED , 15K hours , With LED Driver |
| Mass | 120g (Max.) |
| Used for | Industrial |
| Refresh Rate | 60Hz |
| Touchscreen | Without |
| Signal Type | eDP (2 Lanes) , eDP1.4 , HBR1 (2.7G/lane) , 30 pins Connector |
| Voltage Supply | 3.3V (Typ.) |
| Max. Ratings | Operating Temperature: 0 ~ 50 °C ; Storage Temperature: -20 ~ 60 °C |
G100UAN01.0 LCD Screen - Extremely Important Information :
1. Product Image and Description Review:
Carefully examine the product image and description provided. This will help you verify that the screen matches your expectations and requirements.
2. Key Specifications Match:
Screen Size: Ensure that the size of the LCD screen matches the specifications required by your device.
Resolution: Confirm that the resolution of the screen is the same as what your device supports. An incorrect resolution can result in poor display quality or incompatibility.
Connector Type: The connector type must be identical to your current screen's connector. Using a screen with a different connector type will prevent it from working properly with your device.
G100UAN01.0 LCD Screen - Also Note :
1. 100% Compatible Screen Guarantee:
You will receive a screen that is 100% compatible with your device.
The exact brand and part number of the screen provided may vary depending on market availability. Rest assured, the replacement screen will meet the necessary specifications for your device.
2. Professional Installation Recommended:
For optimal performance and to avoid any potential damage, we strongly recommend that the screen be installed by a professional repair shop or an experienced individual.
Proper installation is crucial to ensure the screen functions correctly and to maintain the integrity of your device.
G100UAN01.0 LCD Panel Shipping and Package :
G100UAN01.0 LCD Screen - Shipping Information :
1. Order Processing and Delivery Time:
We will dispatch your goods within 1-3 working days after receiving your order.
Typically, you can expect to receive your order within 27 calendar days from the shipping date.
2. Accurate Shipping Information:
Ensure that your shipping details, including the address, postal code, phone number, and contact person, are accurate before placing your order.
If you need the order to be sent to a different address, please inform us in advance and leave a message in our transaction. This will help us to make the necessary adjustments promptly.
Following these guidelines will help ensure a smooth shipping process and timely delivery of your LC490DQE-FHA1 LCD screen.
G100UAN01.0 LCD Panel FAQ :
Q: Can I pay my order of G100UAN01.0 via credit card ?
A: Yes!you can use your credit card through your Paypal account.
Q: Can you give me a discount if I need a large quantity of G100UAN01.0 ?
A: Of course!If you make a large order, we will give you a discount.
Q: Do you accept sample orders of G100UAN01.0 ?
A: Of course!sample order is welcome !
Q: How can I trace my order of G100UAN01.0 ?
A: we will give you tracking number then you can trace your order from website.
Want to Know more details about this product
