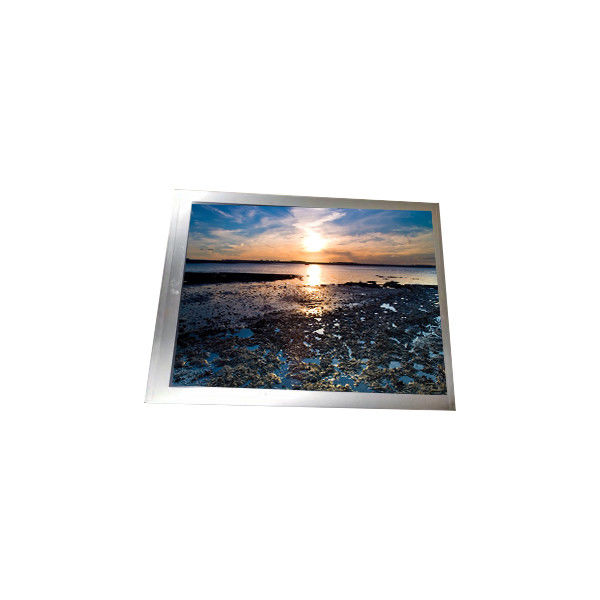

EV190WPM-N11 19.0 inch LCD Panel Display 1680*1050 LCD Screen
Product Details:
| Place of Origin: | China |
| Brand Name: | BOE |
| Model Number: | EV190WPM-N11 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Original packaging/conventional packaging box |
| Delivery Time: | 7 Days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 100000 Unit/Units per Month |
|
Detail Information |
|||
| Model Name: | EV190WPM-N11 | Diagonal Size: | 19.0" |
|---|---|---|---|
| Panel Type: | A-Si TFT-LCD, LCM | Resolution: | 1680(RGB)×1050, WSXGA+ 104PPI |
| Pixel Format: | RGB Vertical Stripe | Active Area: | 409.5(W)×255.938(H) Mm |
| Work Mode: | HADS, Normally Black, Transmissive | Support Color: | 16.7M 73% NTSC |
| View Direction: | Symmetry | Used For: | Medical Imaging |
| Highlight: | EV190WPM-N11,EV190WPM-N11 LCD Panel Display,19.0 inch LCD Panel Display |
||
Product Description
EV190WPM-N11 19.0 inch LCD Panel Display 1680*1050 LCD Screen
EV190WPM-N11 LCD Panel Product details :
| Brand | BOE |
| Model P/N | EV190WPM-N11 |
| Diagonal Size | 19.0" |
| Panel Type | a-Si TFT-LCD, LCM |
| Resolution | 1680(RGB)×1050, WSXGA+ 104PPI |
| Pixel Format | RGB Vertical Stripe |
| Active Area | 409.5(W)×255.938(H) mm |
| Bezel Opening | 413.9(W)×260.3(H) mm |
| Outline Dim. | 444(W)×283.3(H) ×16(D) mm |
| Treatment | Antiglare (Haze 25%) |
| Luminance | 350 cd/m² (Typ.) |
| Contrast Ratio | 1000:1 (Typ.) (TM) |
| View Direction | Symmetry |
| Response Time | 25 (Typ.)(Tr+Td) |
| Viewing Angle | 89/89/89/89 (Typ.)(CR≥10) |
| Operating Mode | HADS, Normally Black, Transmissive |
| Support Color | 16.7M 73% NTSC |
| Light Source | WLED , 30K hours , With LED Driver |
| Weight | 1.65Kgs (Typ.) |
| Designed For | Medical Imaging |
| Frame Rate | 60Hz |
| Touch Panel | Without |
| Interface Type | LVDS (2 ch, 8-bit) , 30 pins Connector |
| Power Supply | 12V (Typ.) |
| Environment | Operating Temp.: 0 ~ 60 °C ; Storage Temp.: -20 ~ 60 °C |
EV190WPM-N11 LCD Screen - Extremely Important Information :
1. Product Image and Description Review:
Carefully examine the product image and description provided. This will help you verify that the screen matches your expectations and requirements.
2. Key Specifications Match:
Screen Size: Ensure that the size of the LCD screen matches the specifications required by your device.
Resolution: Confirm that the resolution of the screen is the same as what your device supports. An incorrect resolution can result in poor display quality or incompatibility.
Connector Type: The connector type must be identical to your current screen's connector. Using a screen with a different connector type will prevent it from working properly with your device.
EV190WPM-N11 LCD Screen - Also Note :
1. 100% Compatible Screen Guarantee:
You will receive a screen that is 100% compatible with your device.
The exact brand and part number of the screen provided may vary depending on market availability. Rest assured, the replacement screen will meet the necessary specifications for your device.
2. Professional Installation Recommended:
For optimal performance and to avoid any potential damage, we strongly recommend that the screen be installed by a professional repair shop or an experienced individual.
Proper installation is crucial to ensure the screen functions correctly and to maintain the integrity of your device.
EV190WPM-N11 LCD Panel Shipping and Package :
EV190WPM-N11 LCD Screen - Shipping Information :
1. Order Processing and Delivery Time:
We will dispatch your goods within 1-3 working days after receiving your order.
Typically, you can expect to receive your order within 27 calendar days from the shipping date.
2. Accurate Shipping Information:
Ensure that your shipping details, including the address, postal code, phone number, and contact person, are accurate before placing your order.
If you need the order to be sent to a different address, please inform us in advance and leave a message in our transaction. This will help us to make the necessary adjustments promptly.
Following these guidelines will help ensure a smooth shipping process and timely delivery of your LC490DGG-FKM8 LCD screen.
EV190WPM-N11 LCD Panel FAQ :
Q: If I place order now,when will you ship the goods of EV190WPM-N11 ?
A: The order will be shipped within 2-3 working days after received your payment.
Q: Can I pay my order of EV190WPM-N11 via credit card ?
A: Yes!you can use your credit card through your Paypal account.
Q: Can You declare my order of EV190WPM-N11 to a lower price in commercial invoice for customs ?
A: Yes , we can . pls inform us before shipping .
Q: How long will I receive my goods EV190WPM-N11 ?
A: Generally speaking ,It will take 3-8days to your hand by DHL/FEDEX/UPS/TNT.
