products details

Home > Products >

LCD Screen Display Panel

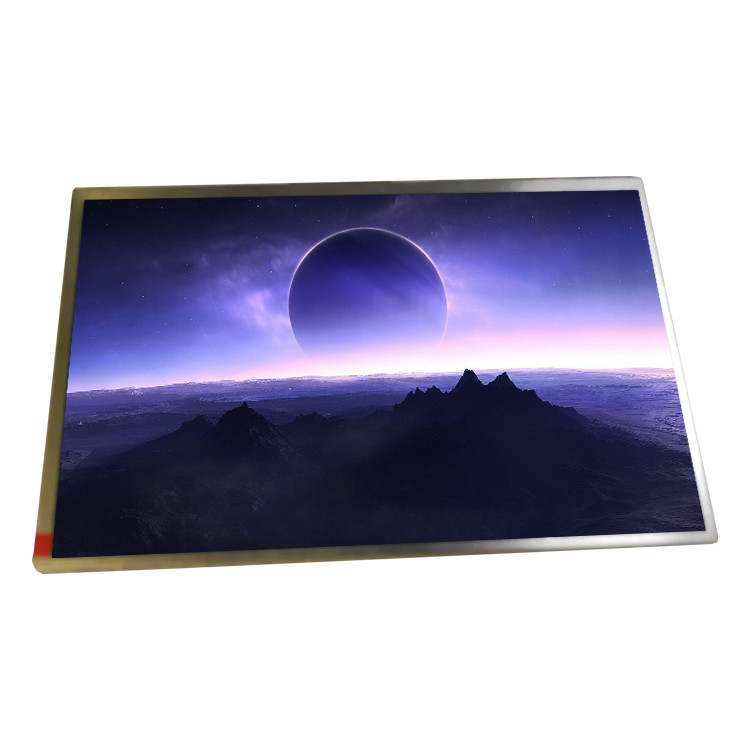

HSD070PFW2-A00 7.0 Inch TFT LCD Display 1024*600 LCD Module

All Category

Floor Standing Digital Signage

HSD070PFW2-A00 7.0 Inch TFT LCD Display 1024*600 LCD Module

Brand Name:	HannStar
Model Number:	HSD070PFW2-A00
MOQ:	1 pcs
Price:	Negotiable
Packaging Details:	Original packaging/conventional packaging box
Payment Terms:	T/T, Western Union

Detail Information

Product Description

Detail Information

Place of Origin:

China

Model Name:

HSD070PFW2-A00

Diagonal Size:

Panel Type:

A-Si TFT-LCD, LCM

Resolution:

1024(RGB)×600, WSVGA 169PPI

Active Area:

153.6(W)×90(H) Mm

Outline Size:

162.8(W)×102.9(H) ×2.67(D) Mm

Surface:

Glare (Haze 0%), Hard Coating (3H), Reflection 1.5% (Max.)

Contrast Ratio:

600:1 (Typ.) (TM)

Panel Weight:

90.0/95.0g (Typ./Max.)

Application:

Pad & Tablet

Supply Ability:

100000 Unit/Units per Month

Product Description

HSD070PFW2-A00 7.0 Inch TFT LCD Display 1024*600 LCD Module

HSD070PFW2-A00 LCD Panel Product details :

Brand	HannStar
Model P/N	HSD070PFW2-A00
Diagonal Size	7.0"
Panel Type	a-Si TFT-LCD, LCM
Resolution	1024(RGB)×600, WSVGA 169PPI
Pixel Format	RGB Vertical Stripe
Active Area	153.6(W)×90(H) mm
Bezel Opening	-
Outline(mm)	162.8 × 102.9× 2.67 (H×V×D)
Treatment	Glare (Haze 0%), Hard coating (3H), Reflection 1.5% (Max.)
Luminance	400 cd/m² (Typ.)
Contrast Ratio	600 : 1 (Typ.) (TM)
Viewing Angle	89/89/89/89 (Typ.)(CR≥10)
Response	30 (Typ.)(Tr+Td) ms
Good View at	Symmetry
Work Mode	IPS Pro, Normally Black, Transmissive
Color Depth	16.7M 50%NTSC
Backlight	WLED, 10K hours
Mass	90.0/95.0g (Typ./Max.)
Used for	Pad & Tablet
Refresh Rate	60Hz
Touchscreen	Without
Signal Type	LVDS (1 ch, 8-bit) + SPI, 30 pins Connector
Voltage Supply	3.3V (Typ.)
Max. Ratings	Storage Temp.: -20 ~ 60 °C Operating Temp.: 0 ~ 50 °C
HSD070PFW2-A00 7.0 Inch TFT LCD Display 1024*600 LCD Module

HSD070PFW2-A00 LCD Screen - Important Information Before Ordering :

1. Ensure Compatibility:

Before placing an order for the HSD070PFW2-A00 LCD screen, it is crucial to confirm that this screen model is compatible with your device. Different machines may require specific screens, so verifying the match is essential to avoid any issues. If you are unsure about the compatibility of this LCD screen with your machine, please do not hesitate to contact us. Our customer support team is here to assist you in confirming the correct model to ensure you get the right product for your needs.

2. Verify Contact Information:

Accuracy in your contact details is vital for a smooth transaction and delivery process. Before you finalize your order, please double-check that your phone number, address, and zip code are correctly entered. This step helps ensure that your order will be processed without delays and that your item will be shipped to the correct location. Providing accurate contact information helps prevent any potential shipping errors or communication issues regarding your purchase.

By following these guidelines, you can help ensure a hassle-free ordering experience and receive your HSD070PFW2-A00 LCD screen promptly and accurately.

HSD070PFW2-A00 LCD Panel Shipping and Package : HSD070PFW2-A00 7.0 Inch TFT LCD Display 1024*600 LCD Module 0

HSD070PFW2-A00 LCD Screen International Shipping and Customs Clearance Guide :

1. Customs Fees and Import Taxes:

As the buyer, you are responsible for all customs fees, duties, and import taxes that may be applied by your country. These charges are not included in the product price or shipping cost.

2. Shipping Duration:

International orders may experience delays due to customs processing. While we strive to deliver your order promptly, please be aware that it may take several weeks longer than expected to arrive.

3. Declaring Low Tariffs:

If you need us to declare a lower value for customs purposes to reduce tariffs, please indicate this request in a note when placing your order. We will do our best to accommodate your request.

4. Logistics and Delivery:

It is crucial to monitor your logistics tracking number regularly.

If the goods are returned because no recipient was available to sign for them in time, you will be responsible for the return freight costs. This is contingent upon the goods being returned to China in good condition.

If the goods are not returned in good condition, we will not accept any refund requests.

5. Requirements for European Buyers:

For buyers from Europe, it is essential to provide your Economic Operators Registration and Identification (EORI) number or VAT number.

If you are a private buyer, please provide your ID number or tax ID for customs declaration purposes. Without this information, the logistics company may not be able to send your package in a timely manner.

HSD070PFW2-A00 LCD Screen Guarantee :

1. Warranty Period:

All LCD panels, including the HSD070PFW2-A00, come with a 60-day warranty from the date of receipt. This warranty ensures that you receive a fully functional product.

2. Reporting Issues:

If you discover that the LCD screen is non-functional or has defects upon receipt, please inform us within 7 days. Prompt communication allows us to address and resolve any issues quickly.

3. Conditions for Warranty Claims:

To qualify for a warranty claim:

You must report the issue within 7 days of receiving the LCD screen.

Provide detailed information about the problem to help us understand and resolve it.

4. Resolution Process:

Upon receiving your report, our customer support team will assist you in troubleshooting and solving the problem. If the issue remains unresolved after communication, we will accept a Return Merchandise Authorization (RMA) request.

5. Exclusions:

Please note that RMA requests will not be accepted if the issue arises from ordering the wrong model. It is essential to verify the compatibility of the LCD screen with your device before placing an order.

HSD070PFW2-A00 LCD Panel FAQ :

Q: If I place order now,when will you ship the goods of HSD070PFW2-A00 ?

A: The order will be shipped within 2-3 working days after received your payment.

Q: Can I pay my order of HSD070PFW2-A00 via credit card ?

A: Yes!you can use your credit card through your Paypal account.

Q: How can I trace my order of HSD070PFW2-A00 ?

A: we will give you tracking number then you can trace your order from website.

Q: Do you accept sample orders of HSD070PFW2-A00 ?

A: Of course!sample order is welcome !
