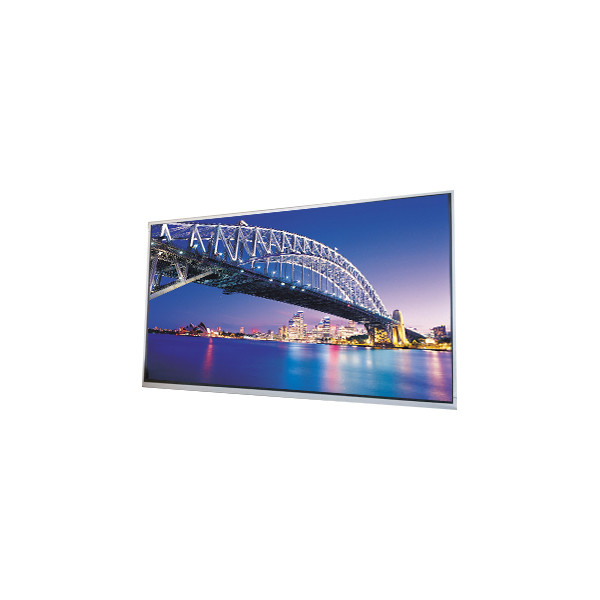

Name: M270QAN05.0 27.0 inch 4K LCD Panel Display
Brand: Shenzhen Yongsheng Innovation Technology Co., Ltd
SKU: M270QAN05.0
Availability: InStock

Brand Name:	AUO
Model Number:	M270QAN05.0
MOQ:	1 pcs
Price:	Negotiable
Packaging Details:	Original packaging/conventional packaging box
Payment Terms:	T/T, Western Union

Detail Information

Product Description

Detail Information

Place of Origin:

China

Model Name:

M270QAN05.0

Diagonal Size:

27.0"

Panel Type:

A-Si TFT-LCD, LCM

Resolution:

3840(RGB)×2160, UHD 163PPI

Pixel Format:

RGB Vertical Stripe

Active Area:

596.736(W)×335.664(H) Mm

Work Mode:

AHVA, Normally Black, Transmissive

Light Source:

4 Strings × 2CNWLED, 30K Hours, Without Driver

View Direction:

Symmetry

Used For:

Desktop Monitor

Supply Ability:

100000 Unit/Units per Month

Product Description

M270QAN05.0 27.0 inch 4K LCD Panel Display

M270QAN05.0 LCD Panel Product details :

Brand	AUO
Model P/N	M270QAN05.0
Diagonal Size	27.0"
Panel Type	a-Si TFT-LCD, LCM
Resolution	3840(RGB)×2160, UHD 163PPI
Pixel Format	RGB Vertical Stripe
Active Area	596.736(W)×335.664(H) mm
Bezel Opening	-
Outline Size	608.8(W)×349.38(H)×14.85(D) mm
Surface	Antiglare (Haze 25%), Hard coating (3H)
Brightness	400 cd/m² (Typ.)
Contrast Ratio	1300:1 (Typ.) (TM)
Viewing Angle	89/89/89/89 (Typ.)(CR≥10)
Display Mode	AHVA, Normally Black, Transmissive
Best View on	Symmetry
Response Time	14 (Typ.)(G to G)
Display Colors	1.07B 95%DCI-P3
Lamp Type	4 strings × 2CNWLED, 30K hours, Without Driver
Frequency	60Hz
Touch Screen	Without
Panel Weight	2.52±0.13Kgs
Application	Desktop Monitor
Signal Interface	eDP (4 Lanes), HBR2 (5.4G/lane), 30 pins Connector
Input Voltage	10V (Typ.)
Environment	Operating Temp.: 0 ~ 50 °C ;Storage Temp.: -20 ~ 60 °C

M270QAN05.0 LCD Screen - Extremely Important Information :

1. Product Image and Description Review:

Carefully examine the product image and description provided. This will help you verify that the screen matches your expectations and requirements.

2. Key Specifications Match:

Screen Size: Ensure that the size of the LCD screen matches the specifications required by your device.

Resolution: Confirm that the resolution of the screen is the same as what your device supports. An incorrect resolution can result in poor display quality or incompatibility.

Connector Type: The connector type must be identical to your current screen's connector. Using a screen with a different connector type will prevent it from working properly with your device.

M270QAN05.0 LCD Screen - Also Note :

1. 100% Compatible Screen Guarantee:

You will receive a screen that is 100% compatible with your device.

The exact brand and part number of the screen provided may vary depending on market availability. Rest assured, the replacement screen will meet the necessary specifications for your device.

2. Professional Installation Recommended:

For optimal performance and to avoid any potential damage, we strongly recommend that the screen be installed by a professional repair shop or an experienced individual.

Proper installation is crucial to ensure the screen functions correctly and to maintain the integrity of your device.

M270QAN05.0 LCD Panel Shipping and Package :

M270QAN05.0 27.0 inch 4K LCD Panel Display 0

M270QAN05.0 LCD Screen - Shipping Information :

1. Order Processing and Delivery Time:

We will dispatch your goods within 1-3 working days after receiving your order.

Typically, you can expect to receive your order within 27 calendar days from the shipping date.

2. Accurate Shipping Information:

Ensure that your shipping details, including the address, postal code, phone number, and contact person, are accurate before placing your order.

If you need the order to be sent to a different address, please inform us in advance and leave a message in our transaction. This will help us to make the necessary adjustments promptly.

Following these guidelines will help ensure a smooth shipping process and timely delivery of your M270QAN05.0 LCD screen.

M270QAN05.0 LCD Panel FAQ :

Q: How can I trace my order of M270QAN05.0 ?

A: we will give you tracking number then you can trace your order from website.

Q: How to make payment of M270QAN05.0 ?

A: We accept T/T , Paypal , western union .

Q: Do you accept sample orders of M270QAN05.0 ?

A: Of course!sample order is welcome !

Q: Can you give me a discount if I need a large quantity of M270QAN05.0 ?

A: Of course!If you make a large order, we will give you a discount.
