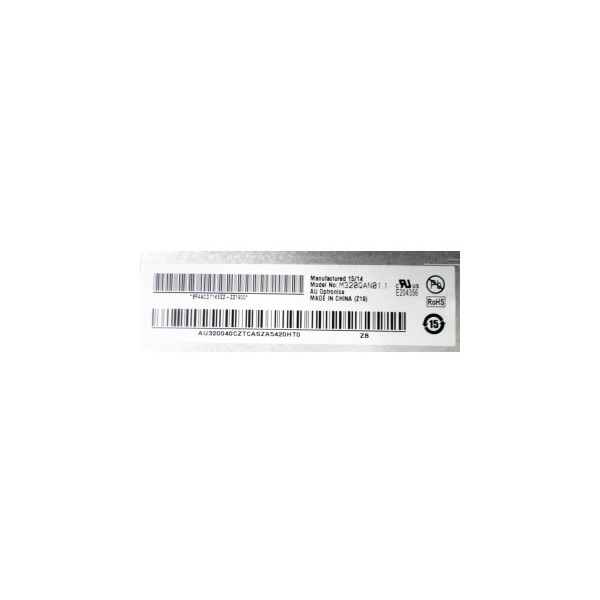

M320QAN01.1 3840*2160 LCD Module Panel for Desktop Monitor
Product Details:
| Place of Origin: | China |
| Brand Name: | AUO |
| Model Number: | M320QAN01.1 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Original packaging/conventional packaging box |
| Delivery Time: | 7 Days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 100000 Unit/Units per Month |
|
Detail Information |
|||
| Model Name: | M320QAN01.1 | Diagonal Size: | 32.0" |
|---|---|---|---|
| Panel Type: | A-Si TFT-LCD, LCM | Resolution: | 3840(RGB)×2160, UHD 137PPI |
| Pixel Format: | RGB Vertical Stripe | Active Area: | 708.48(W)×398.52(H) Mm |
| Display Mode: | AHVA, Normally Black, Transmissive | Display Colors: | 1.07B 100%sRGB |
| Best View On: | Symmetry | Application: | Desktop Monitor |
Product Description
M320QAN01.1 3840*2160 LCD Module Panel for Desktop Monitor
M320QAN01.1 LCD Panel Product details :
| Brand | AUO |
| Model P/N | M320QAN01.1 |
| Diagonal Size | 32.0" |
| Panel Type | a-Si TFT-LCD, LCM |
| Resolution | 3840(RGB)×2160, UHD 137PPI |
| Pixel Format | RGB Vertical Stripe |
| Active Area | 708.48(W)×398.52(H) mm |
| Bezel Opening | - |
| Outline Size | 727.88(W)×422.07(H)×15.6(D) mm |
| Surface | Antiglare, Hard coating (3H) |
| Brightness | 350 cd/m² (Typ.) |
| Contrast Ratio | 1000:1 (Typ.) (TM) |
| Viewing Angle | 89/89/89/89 (Typ.)(CR≥10) |
| Display Mode | AHVA, Normally Black, Transmissive |
| Best View on | Symmetry |
| Response Time | 12 (Typ.)(G to G) |
| Display Colors | 1.07B 100%sRGB |
| Lamp Type | 4 strings × 2CNWLED, 30K hours, Without Driver |
| Frequency | 60Hz |
| Touch Screen | Without |
| Panel Weight | 5.16Kgs |
| Application | Desktop Monitor |
| Signal Interface | eDP (8 Lanes), HBR1 (2.7G/lane), 41 pins Connector |
| Input Voltage | 12.0V (Typ.) |
| Environment | Operating Temp.: 0 ~ 50 °C ;Storage Temp.: -20 ~ 60 °C |
M320QAN01.1 LCD Panel Shipping and Package :
M320QAN01.1 LCD Panel FAQ :
Q: If I order M320QAN01.1 now,when will you ship the goods ?
A: The order will be shipped within 2-3 working days after received your payment.
Q: Do you accept sample orders for M320QAN01.1 ?
A: Of course!sample order is welcome !
Q: Can you give me a discount if I need a large quantity of M320QAN01.1 ?
A: Of course!If you make a large order, we will give you a discount.
Q:Can You declare my order of M320QAN01.1 at a very low value ?
A: Yes , we can . pls inform us before shipping .
Q: How can I trace my order of M320QAN01.1 ?
A: we will give you tracking number then you can trace your order from website.
Q: Can I pay my order of M320QAN01.1 via credit card ?
A: Yes!you can use your credit card through your Paypal account.
