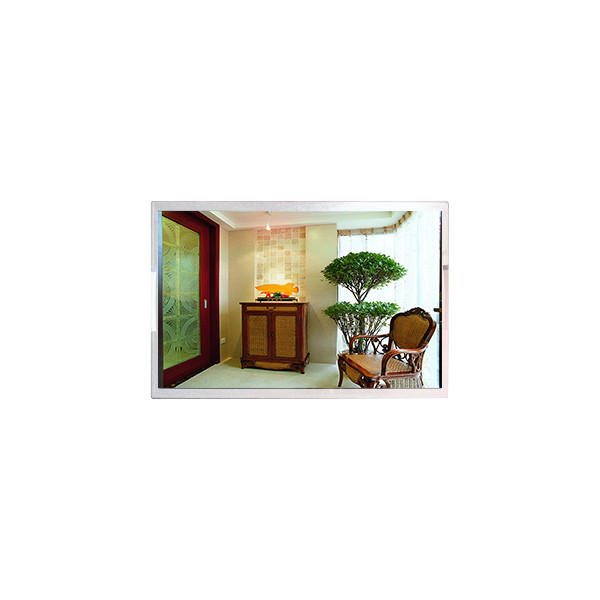

WF70A2TIAGDNGA# 7.0 inch 800*480 LCD Panel Module for Industrial
Product Details:
| Place of Origin: | China |
| Brand Name: | Winstar |
| Model Number: | WF70A2TIAGDNGA# |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Original packaging/conventional packaging box |
| Delivery Time: | 7 Days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 100000 Unit/Units per Month |
|
Detail Information |
|||
| Model Name: | WF70A2TIAGDNGA# | Diagonal Size: | 7.0" |
|---|---|---|---|
| Panel Type: | A-Si TFT-LCD, LCM | Resolution: | 800(RGB)×480, WVGA 134PPI |
| Pixel Format: | RGB Vertical Stripe | Active Area: | 525.7(W)×295.7(H) Mm |
| Operating Mode: | TN, Normally White, Transmissive | Light Source: | WLED , W/O Driver |
| Designed For: | Industrial | Frame Rate: | 60Hz |
Product Description
WF70A2TIAGDNGA# 7.0 inch 800*480 LCD Panel Module for Industrial
WF70A2TIAGDNGA# LCD Panel Product details :
| Brand | Winstar |
| Model P/N | WF70A2TIAGDNGA# |
| Diagonal Size | 7.0" |
| Panel Type | a-Si TFT-LCD, LCM |
| Resolution | 800(RGB)×480, WVGA 134PPI |
| Pixel Format | RGB Vertical Stripe |
| Active Area | 525.7(W)×295.7(H) mm |
| Bezel Opening | - |
| Outline Dim. | 165(H)×100(V) ×7.9(D) mm |
| Treatment | Glare (Haze 0%) |
| View Direction | 6 o'clock |
| Response Time | - |
| Viewing Angle | - |
| Operating Mode | TN, Normally White, Transmissive |
| Support Color | 16.7M |
| Light Source | WLED , W/O Driver |
| Weight | - |
| Designed For | Industrial |
| Frame Rate | 60Hz |
| Touch Panel | PCAP, I²C |
| Interface Type | Parallel RGB (1 ch, 8-bit) , 50 pins FPC |
| Power Supply | 3.3/10.4/15/-10V (Typ.)(VCC/AVDD/VGH/VGL) |
| Environment | Operating Temperature: -20 ~ 70 °C ; Storage Temperature: -30 ~ 80 °C |
WF70A2TIAGDNGA# lcd panel About Us:
At YONGS , we are dedicated to fulfilling the following commitments:
Quality Assurance: We prioritize manufacturing top-tier consumer goods, guaranteeing the utmost quality in every product we deliver. Our commitment to excellence ensures that our customers receive only the best.
Global Reach: We strive to deliver our goods swiftly and accurately to customers worldwide. Whether you're located locally or across the globe, we ensure fast and precise delivery to meet your needs.
Your satisfaction is our priority, and we aim to exceed expectations in every aspect of our service.
WF70A2TIAGDNGA# LCD Panel Shipping and Package :
WF70A2TIAGDNGA# LCD Panel Delivery :
We are committed to dispatching your order promptly. Upon confirmation of payment, we will process and ship your items within 5 working days.
The shipping method will be determined by the option you select based on shipping costs. Therefore, please choose the most suitable shipping method based on your individual requirements.
Please be aware that if your delivery address is in a remote area, additional charges may apply. Should there be any changes to the shipping cost, we will promptly inform you of the revised amount before proceeding with delivery.
WF70A2TIAGDNGA# LCD Panel After-Service:
We provide a 90-day warranty for this item. However, please note that the cost of returning the item is the responsibility of the buyer.
Our warranty does not cover damage caused by human error or natural disasters. This includes instances such as improper installation, physical damage (e.g., scratches, cracks), mishandling, or tampering with warranty tags during the warranty period. Any disconnection or loss of the product will be considered as relinquishing the warranty, and we will not be liable for any associated issues.
Please take note of these terms to ensure a smooth and efficient after-sales experience.
WF70A2TIAGDNGA# LCD Panel FAQ :
Q: Can I pay my order of WF70A2TIAGDNGA# via credit card ?
A: Yes!you can use your credit card through your Paypal account.
Q: Can you give me a discount if I need a large quantity of WF70A2TIAGDNGA# ?
A: Of course!If you make a large order, we will give you a discount.
Q: Do you accept sample orders of WF70A2TIAGDNGA# ?
A: Of course!sample order is welcome !
Q: How can I trace my order of WF70A2TIAGDNGA# ?
A: we will give you tracking number then you can trace your order from website.
