M238DAN01.8 23.8 inch LCD Panel Module 2560*1440 LCD Screen Display

All Category

Floor Standing Digital Signage

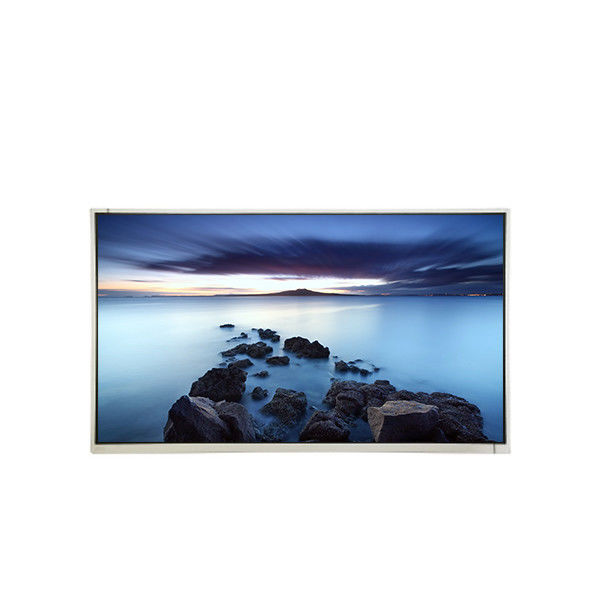

M238DAN01.8 23.8 inch LCD Panel Module 2560*1440 LCD Screen Display

Brand Name:	AUO
Model Number:	M238DAN01.8
MOQ:	1 pcs
Price:	Negotiable
Packaging Details:	Original packaging/conventional packaging box
Payment Terms:	T/T, Western Union

Detail Information

Product Description

Detail Information

Place of Origin:

China

Model Name:

M238DAN01.8

Diagonal Size:

23.8"

Panel Type:

A-Si TFT-LCD, LCM

Resolution:

2560(RGB)×1440, Quad-HD 123PPI

Pixel Format:

RGB Vertical Stripe

Active Area:

526.85(W)×296.35(H) Mm

Operating Mode:

AHVA, Normally Black, Transmissive

Light Source:

16S4P WLED , 30K Hours , No Driver

Designed For:

Desktop Monitor

Frame Rate:

100Hz

Supply Ability:

100000 Unit/Units per Month

Product Description

M238DAN01.8 23.8 inch LCD Panel Module 2560*1440 LCD Screen Display

M238DAN01.8 LCD Panel Product details :

Brand	AUO
Model P/N	M238DAN01.8
Diagonal Size	23.8"
Panel Type	a-Si TFT-LCD, LCM
Resolution	2560(RGB)×1440, Quad-HD 123PPI
Pixel Format	RGB Vertical Stripe
Active Area	526.85(W)×296.35(H) mm
Bezel Opening	-
Outline(mm)	534.74(W)×313.16(H)×13.78(D)
Luminance	300 (Typ.)(cd/m²)
Viewing Angle	89/89/89/89 (Typ.)(CR≥10)
Good View at	Symmetry
Color Depth	16.7M 99% sRGB
Mass	2.19/2.30Kgs (Typ./Max.)
Refresh Rate	100Hz
Treatment	Antiglare (Haze 25%), Hard coating (3H)
Contrast Ratio	1300 : 1 (Typ.) (TM)
Work Mode	AHVA, Normally Black, Transmissive
Response	14 (Typ.)(G to G) ms
Backlight	16S4P WLED , 30K hours , No Driver
Used for	Desktop Monitor
Touchscreen	Without
Signal Type	LVDS (4 ch, 8-bit), 70 pins Connector
Voltage Supply	5.0V (Typ.)
Max. Ratings	Storage Temp.: -20 ~ 60 °C Operating Temp.: 0 ~ 50 °C

M238DAN01.8 lcd panel About Us:

At YONGS , we are dedicated to fulfilling the following commitments:

Quality Assurance: We prioritize manufacturing top-tier consumer goods, guaranteeing the utmost quality in every product we deliver. Our commitment to excellence ensures that our customers receive only the best.

Global Reach: We strive to deliver our goods swiftly and accurately to customers worldwide. Whether you're located locally or across the globe, we ensure fast and precise delivery to meet your needs.

Your satisfaction is our priority, and we aim to exceed expectations in every aspect of our service.

M238DAN01.8 LCD Panel Shipping and Package :

M238DAN01.8 LCD Panel Delivery :

We are committed to dispatching your order promptly. Upon confirmation of payment, we will process and ship your items within 5 working days.

The shipping method will be determined by the option you select based on shipping costs. Therefore, please choose the most suitable shipping method based on your individual requirements.

Please be aware that if your delivery address is in a remote area, additional charges may apply. Should there be any changes to the shipping cost, we will promptly inform you of the revised amount before proceeding with delivery.

M238DAN01.8 LCD Panel After-Service:

We provide a 90-day warranty for this item. However, please note that the cost of returning the item is the responsibility of the buyer.

Our warranty does not cover damage caused by human error or natural disasters. This includes instances such as improper installation, physical damage (e.g., scratches, cracks), mishandling, or tampering with warranty tags during the warranty period. Any disconnection or loss of the product will be considered as relinquishing the warranty, and we will not be liable for any associated issues.

Please take note of these terms to ensure a smooth and efficient after-sales experience.

M238DAN01.8 LCD Panel FAQ :

Q: Can I pay my order of M238DAN01.8 via credit card ?

A: Yes!you can use your credit card through your Paypal account.

Q: If I place order now,when will you ship the goods of M238DAN01.8 ?

A: The order will be shipped within 2-3 working days after received your payment.

Q: How long is the warranty ?

A: We offer 90days warranty .

Q: Do you accept sample orders of M238DAN01.8 ?

A: Of course!sample order is welcome !
