products details

Home > Products >

LCD Screen Display Panel

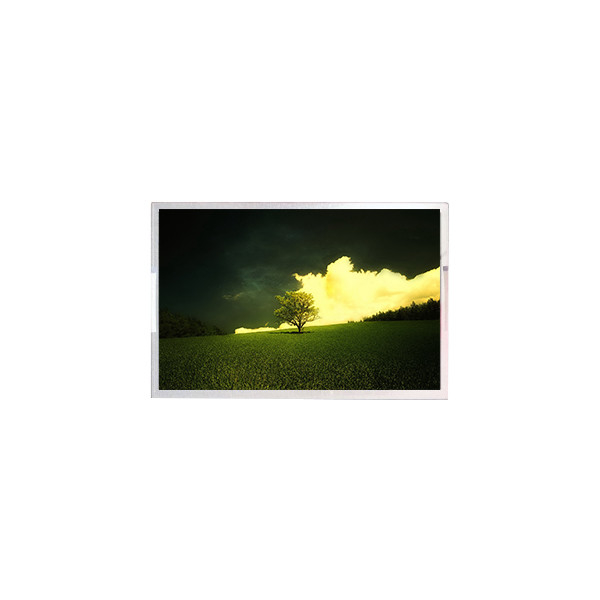

LM315WQ1-SSF1 32.0 inch LCD Screen Display for Desktop Monitor

All Category

Floor Standing Digital Signage

LM315WQ1-SSF1 32.0 inch LCD Screen Display for Desktop Monitor

Brand Name:	LG Display
Model Number:	LM315WQ1-SSF1
MOQ:	1 pcs
Price:	Negotiable
Packaging Details:	Original packaging/conventional packaging box
Payment Terms:	T/T, Western Union

Detail Information

Product Description

Detail Information

Place of Origin:

China

Model Name:

LM315WQ1-SSF1

Diagonal Size:

32.0"

Panel Type:

A-Si TFT-LCD, LCM

Resolution:

2560(RGB)×1440, Quad-HD 93PPI

Pixel Format:

RGB Vertical Stripe

Active Area:

697.344(W)×392.256(H) Mm

Operating Mode:

IPS, Normally Black, Transmissive

Light Source:

19S4P WLED , 30K Hours , Without Driver

Designed For:

Desktop Monitor/Gaming

Frame Rate:

180Hz

Supply Ability:

100000 Unit/Units per Month

Product Description

LM315WQ1-SSF1 32.0 inch LCD Screen Display for Desktop Monitor

LM315WQ1-SSF1 LCD Panel Product details :

Brand	LG Display
Model P/N	LM315WQ1-SSF1
Diagonal Size	32.0"
Panel Type	a-Si TFT-LCD, LCM
Resolution	2560(RGB)×1440, Quad-HD 93PPI
Pixel Format	RGB Vertical Stripe
Active Area	697.344(W)×392.256(H) mm
Bezel Opening	-
Outline Dim.	709.15(W)×417.75(H) ×18.75(D) mm
Treatment	Antiglare (Haze 25%), Hard coating (3H)
Luminance	350 cd/m² (Typ.)
Contrast Ratio	1000:1 (Typ.) (TM)
View Direction	Symmetry
Response Time	4 (Typ.)(G to G)
Viewing Angle	89/89/89/89 (Typ.)(CR≥10)
Operating Mode	IPS, Normally Black, Transmissive
Support Color	1.07B 95% DCI-P3
Light Source	19S4P WLED , 30K hours , Without Driver
Weight	3.13/3.30Kgs (Typ./Max.)
Designed For	Desktop Monitor/Gaming
Frame Rate	180Hz
Touch Panel	Without
Interface Type	eDP (8 Lanes) , HBR2 (5.4G/lane) , 60 pins Connector
Power Supply	10.0±0.5V
Environment	Operating Temp.: 0 ~ 60 °C ; Storage Temp.: -20 ~ 60 °C

LM315WQ1-SSF1 lcd panel About Us:

At YONGS , we are dedicated to fulfilling the following commitments:

Quality Assurance: We prioritize manufacturing top-tier consumer goods, guaranteeing the utmost quality in every product we deliver. Our commitment to excellence ensures that our customers receive only the best.

Global Reach: We strive to deliver our goods swiftly and accurately to customers worldwide. Whether you're located locally or across the globe, we ensure fast and precise delivery to meet your needs.

Your satisfaction is our priority, and we aim to exceed expectations in every aspect of our service.

LM315WQ1-SSF1 LCD Panel Shipping and Package :

LM315WQ1-SSF1 LCD Panel Delivery :

We are committed to dispatching your order promptly. Upon confirmation of payment, we will process and ship your items within 5 working days.

The shipping method will be determined by the option you select based on shipping costs. Therefore, please choose the most suitable shipping method based on your individual requirements.

Please be aware that if your delivery address is in a remote area, additional charges may apply. Should there be any changes to the shipping cost, we will promptly inform you of the revised amount before proceeding with delivery.

LM315WQ1-SSF1 LCD Panel After-Service:

We provide a 90-day warranty for this item. However, please note that the cost of returning the item is the responsibility of the buyer.

Our warranty does not cover damage caused by human error or natural disasters. This includes instances such as improper installation, physical damage (e.g., scratches, cracks), mishandling, or tampering with warranty tags during the warranty period. Any disconnection or loss of the product will be considered as relinquishing the warranty, and we will not be liable for any associated issues.

Please take note of these terms to ensure a smooth and efficient after-sales experience.

LM315WQ1-SSF1 LCD Panel FAQ :

Q: How long is the warranty of LM315WQ1-SSF1 ?

A: 90days warranty .

Q: Can you give me a discount if I need a large quantity of LM315WQ1-SSF1 ?

A: Of course!If you make a large order, we will give you a discount.

Q: How can I trace my order of LM315WQ1-SSF1 ?

A: we will give you tracking number then you can trace your order from website.

Q: Can I pay my goods LM315WQ1-SSF1 by credit card ?

A: Yes!you can use your credit card through your Paypal account.
