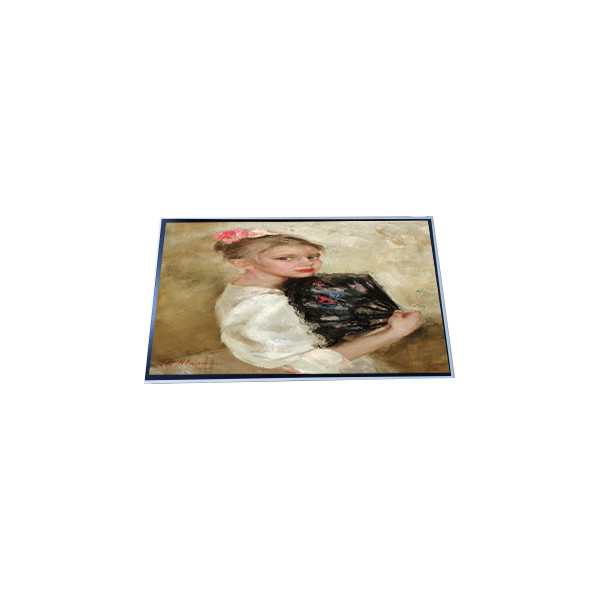

P290IAN01.0 28.6 inch 1920*540 LCD Screen Display Panel
Product Details:
| Place of Origin: | China |
| Brand Name: | AUO |
| Model Number: | P290IAN01.0 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Original packaging/conventional packaging box |
| Delivery Time: | 7 Days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 100000 Unit/Units per Month |
|
Detail Information |
|||
| Model Name: | P290IAN01.0 | Diagonal Size: | 28.6" (1/2 Cut Of 32.0") |
|---|---|---|---|
| Panel Type: | A-Si TFT-LCD, LCM | Resolution: | 1920(RGB)×540 69PPI |
| Pixel Format: | RGB Vertical Stripe | Active Area: | 698.4(W)×196.425(H) Mm |
| Operating Mode: | AMVA, Normally Black, Transmissive | Light Source: | 4 Strings × 2CNWLED, 50K Hours, Without Driver |
| Designed For: | Digital Signage、Outdoor High Brightness、Stretched Bar LCD | Frame Rate: | 60Hz |
Product Description
P290IAN01.0 28.6 inch 1920*540 LCD Screen Display Panel
P290IAN01.0 LCD Panel Product details :
| Brand | AUO |
| Model P/N | P290IAN01.0 |
| Diagonal Size | 28.6" (1/2 cut of 32.0") |
| Panel Type | a-Si TFT-LCD, LCM |
| Resolution | 1920(RGB)×540 69PPI |
| Pixel Format | RGB Vertical Stripe |
| Active Area | 698.4(W)×196.425(H) mm |
| Bezel Opening | 702.4(W)×200.43(H) mm |
| Outline Size | 731.46(W)×229.49(H)×31.34(D) mm |
| Surface | Antiglare (Haze 2%), Hard coating (3H) |
| Brightness | 700 cd/m² (Typ.) |
| Contrast Ratio | 1000:1 (Typ.) (TM) |
| Viewing Angle | 89/89/89/89 (Typ.)(CR≥10) |
| Display Mode | AMVA, Normally Black, Transmissive |
| Best View on | Symmetry |
| Response Time | 25 (Typ.)(G to G) |
| Display Colors | 16.7M 72%NTSC |
| Lamp Type | 4 strings × 2CNWLED, 50K hours, Without Driver |
| Frequency | 60Hz |
| Touch Screen | Without |
| Panel Weight | 2.70Kgs (Typ.) |
| Application | Digital Signage,Outdoor High Brightness,Stretched Bar LCD |
| Signal Interface | LVDS (2 ch, 8-bit), 51 pinsConnector |
| Input Voltage | 12.0V (Typ.) |
| Environment | Operating Temp.: 0 ~ 50 °C ; Storage Temp.: -20 ~ 60 °C |
P290IAN01.0 lcd panel About Us:
At YONGS , we are dedicated to fulfilling the following commitments:
Quality Assurance: We prioritize manufacturing top-tier consumer goods, guaranteeing the utmost quality in every product we deliver. Our commitment to excellence ensures that our customers receive only the best.
Global Reach: We strive to deliver our goods swiftly and accurately to customers worldwide. Whether you're located locally or across the globe, we ensure fast and precise delivery to meet your needs.
Your satisfaction is our priority, and we aim to exceed expectations in every aspect of our service.
P290IAN01.0 LCD Panel Shipping and Package :
P290IAN01.0 LCD Panel Delivery :
We are committed to dispatching your order promptly. Upon confirmation of payment, we will process and ship your items within 5 working days.
The shipping method will be determined by the option you select based on shipping costs. Therefore, please choose the most suitable shipping method based on your individual requirements.
Please be aware that if your delivery address is in a remote area, additional charges may apply. Should there be any changes to the shipping cost, we will promptly inform you of the revised amount before proceeding with delivery.
P290IAN01.0 LCD Panel After-Service:
We provide a 90-day warranty for this item. However, please note that the cost of returning the item is the responsibility of the buyer.
Our warranty does not cover damage caused by human error or natural disasters. This includes instances such as improper installation, physical damage (e.g., scratches, cracks), mishandling, or tampering with warranty tags during the warranty period. Any disconnection or loss of the product will be considered as relinquishing the warranty, and we will not be liable for any associated issues.
Please take note of these terms to ensure a smooth and efficient after-sales experience.
P290IAN01.0 LCD Panel FAQ :
Q: If I place order now,when will you ship the goods of P290IAN01.0 ?
A: The order will be shipped within 2-3 working days after received your payment.
Q: Can I pay my order of P290IAN01.0 via credit card ?
A: Yes!you can use your credit card through your Paypal account.
Q: Can You declare my order of P290IAN01.0 to a lower price in commercial invoice for customs ?
A: Yes , we can . pls inform us before shipping .
Q: How long will I receive my goods P290IAN01.0 ?
A: Generally speaking ,It will take 3-8days to your hand by DHL/FEDEX/UPS/TNT.
