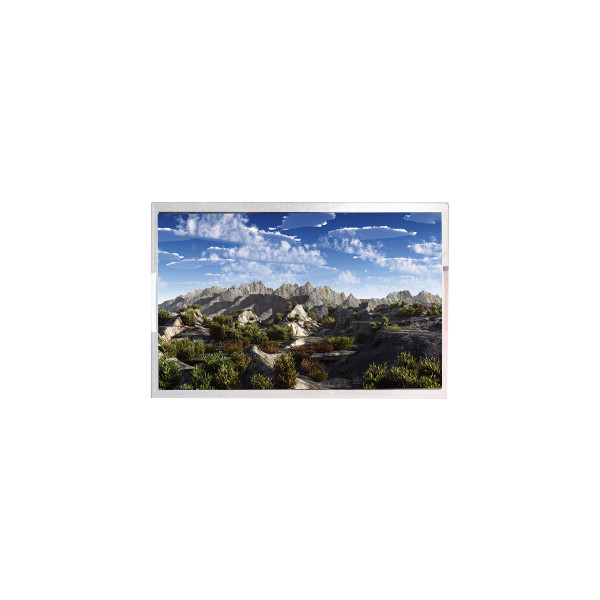

C088VAN03.0 8.8 inch 1280*480 LCD Screen Display

Brand Name:	AUO
Model Number:	C088VAN03.0
MOQ:	1 pcs
Price:	Negotiable
Packaging Details:	Original packaging/conventional packaging box
Payment Terms:	T/T, Western Union

Detail Information

Product Description

Detail Information

Place of Origin:

China

Model Name:

C088VAN03.0

Diagonal Size:

Panel Type:

A-Si TFT-LCD, CELL , FOG

Resolution:

1280×480(RGB) 155PPI

Pixel Format:

RGB Horizontal Stripe

Active Area:

209.28(W)×78.48(H) Mm

Operating Mode:

AHVA, Normally Black, Transmissive

Light Source:

No B/L

View Direction:

Symmetry

Application:

Automotive Display

Supply Ability:

100000 Unit/Units per Month

Product Description

C088VAN03.0 8.8 inch 1280*480 LCD Screen Display

C088VAN03.0 LCD Panel Product details :

Brand	AUO
Model P/N	C088VAN03.0
Diagonal Size	8.8"
Panel Type	a-Si TFT-LCD, CELL , FOG
Resolution	1280×480(RGB) 155PPI
Pixel Format	RGB Horizontal Stripe
Active Area	209.28(W)×78.48(H) mm
Bezel Opening	-
Outline Dim.	213.88 × 88.28 × 0.78 (H×V×D)
Treatment	Hard coating
Luminance	0 cd/m²
Contrast Ratio	1200 : 1 (Typ.) (TM)
View Direction	Symmetry
Response Time	30 (Max.)(Tr+Td) ms
Viewing Angle	85/85/85/85 (Typ.)(CR≥10)
Operating Mode	AHVA, Normally Black, Transmissive
Glass Thickness	0.25+0.25 mm
Transmissivity	-
Support Color	16.7M 70% NTSC
Light Source	No B/L
Weight	TBD
Designed For	Automotive Display
Frame Rate	60Hz
Touch Panel	Without
Driver IC list	Built-in NT51725TT
Interface Type	LVDS (1 ch, 8-bit) + SPI , 60 pins FPC
Power Supply	3.3/6/-6/17/-14V (Typ.)(VDD/AVDD/AVEE/VGH/VGL)
Environment	Storage Temp.: -40 ~ 95 °C Operating Temp.: -30 ~ 85 °C

C088VAN03.0 LCD Panel Pre-order Checklist :

Compatibility Verification:

Prior to placing your order, kindly verify if this LCD screen is compatible with your specific machine model. Should you have any doubts or require assistance, please do not hesitate to reach out to us for clarification.

Contact Information and Address Details:

Please ensure that your phone number, complete address, and zip code are accurate and up to date before proceeding with your order placement.

C088VAN03.0 LCD Panel Shipping and Package :

C088VAN03.0 LCD Panel Delivery Details :

Dispatch Timeframe:

Your ordered items will be dispatched within 7 working days following confirmation of payment.

Shipping Options:

The method of shipping will be determined based on the shipping cost option you select during checkout. Please choose a shipping method that best suits your requirements and budget.

Additional Charges for Remote Areas:

If your delivery address is situated in a remote area, there may be additional charges incurred. We will promptly inform you if any adjustments to the shipping cost are necessary due to the location of your delivery address.

C088VAN03.0 LCD Panel After-Sales Service Policy :

Return Policy:

We offer a 5-day return window without the need for providing reasons. If you wish to return the item within this period, please contact us. Please note that the shipping cost for the return will be covered by the buyer.

Warranty Coverage:

This item is covered by a 90-day warranty. However, certain damages resulting from human error or natural disasters are not included in our warranty coverage. Examples of such exclusions include improper installation, physical damage (such as scratches or broken screens), mishandling, and power surges.

Warranty Void Conditions:

Products sold in our store come with fragile warranty tags. If these tags are tampered with or removed during the warranty period, the warranty will be considered void. Additionally, any disconnection or loss of the item will result in the forfeiture of the warranty, and we will not assume responsibility in such cases.

Please be mindful of these terms and conditions when availing of our after-sales services. Should you have any questions or require assistance, do not hesitate to reach out to us for further clarification.

C088VAN03.0 LCD Panel FAQ :

Q: Can You declare my order of C088VAN03.0 to a lower price in commercial invoice for customs ?

A: Yes , we can . pls inform us before shipping .

Q: Can you give me a discount if I need a large quantity of C088VAN03.0 ?

A: Of course!If you make a large order, we will give you a discount.

Q: Can I pay my order of C088VAN03.0 via credit card ?

A: Yes!you can use your credit card through your Paypal account.

Q: How long will I receive my goods C088VAN03.0 ?

A: Generally speaking ,It will take 3-8days to your hand by DHL/FEDEX/UPS/TNT.
