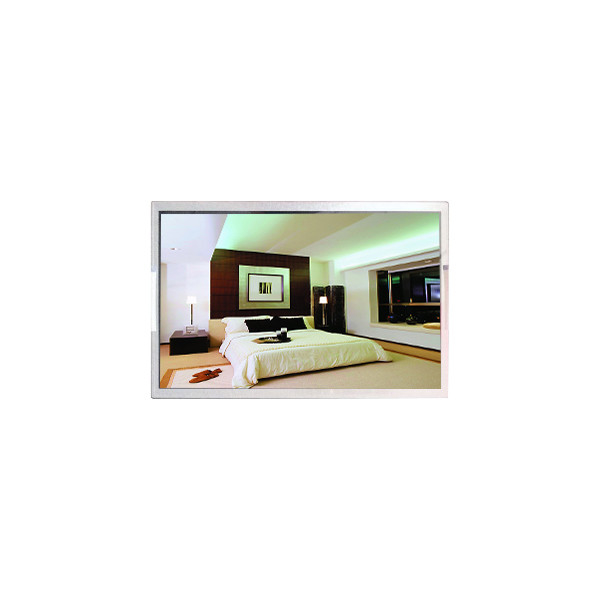

HSD070JWW3-A10 7.0 inch 1280*768 LCD Screen Display

Brand Name:	HannStar
Model Number:	HSD070JWW3-A10
MOQ:	1 pcs
Price:	Negotiable
Packaging Details:	Original packaging/conventional packaging box
Payment Terms:	T/T, Western Union

Detail Information

Product Description

Detail Information

Place of Origin:

China

Model Name:

HSD070JWW3-A10

Diagonal Size:

Panel Type:

A-Si TFT-LCD, LCM

Resolution:

1280(RGB)×768, WXGA 213PPI

Pixel Format:

RGB Vertical Stripe

Active Area:

152.448(W)×91.4688(H) Mm

Operating Mode:

IPS Pro, Normally Black, Transmissive

Light Source:

8S3P WLED , 30K Hours , Without Driver

View Direction:

Symmetry

Application:

Outdoor High Brightness /Automotive Display

Supply Ability:

100000 Unit/Units per Month

Product Description

HSD070JWW3-A10 7.0 inch 1280*768 LCD Screen Display

HSD070JWW3-A10 LCD Panel Product details :

Brand	HannStar
Model P/N	HSD070JWW3-A10
Diagonal Size	7.0"
Panel Type	a-Si TFT-LCD, LCM
Resolution	1280(RGB)×768, WXGA 213PPI
Pixel Format	RGB Vertical Stripe
Active Area	152.448(W)×91.4688(H) mm
Bezel Opening	-
Outline Dim.	164.7(W)×104.7(H) ×12.22(D) mm
Treatment	Glare (Haze 0%), Hard coating (3H)
Luminance	1000 cd/m² (Min.)
Contrast Ratio	1300:1 (Typ.) (TM)
View Direction	Symmetry
Response Time	25 (Typ.)(Tr+Td)
Viewing Angle	85/85/85/85 (Typ.)(CR≥10)
Operating Mode	IPS Pro, Normally Black, Transmissive
Support Color	16.7M 100% sRGB
Light Source	8S3P WLED , 30K hours , Without Driver
Weight	160/175g (Typ./Max.)
Designed For	Outdoor High Brightness /Automotive Display
Frame Rate	60Hz
Touch Panel	Without
Interface Type	LVDS (1 ch, 8-bit) + SPI , 50 pins FPC
Power Supply	3.3V (Typ.)
Environment	Operating Temp.: -30 ~ 85 °C ; Storage Temp.: -40 ~ 90 °C ; Vibration Level: 2.9G (28.4 m/s²)

HSD070JWW3-A10 LCD Panel Pre-order Checklist :

Compatibility Verification:

Prior to placing your order, kindly verify if this LCD screen is compatible with your specific machine model. Should you have any doubts or require assistance, please do not hesitate to reach out to us for clarification.

Contact Information and Address Details:

Please ensure that your phone number, complete address, and zip code are accurate and up to date before proceeding with your order placement.

HSD070JWW3-A10 LCD Panel Shipping and Package :

HSD070JWW3-A10 LCD Panel Delivery Details :

Dispatch Timeframe:

Your ordered items will be dispatched within 7 working days following confirmation of payment.

Shipping Options:

The method of shipping will be determined based on the shipping cost option you select during checkout. Please choose a shipping method that best suits your requirements and budget.

Additional Charges for Remote Areas:

If your delivery address is situated in a remote area, there may be additional charges incurred. We will promptly inform you if any adjustments to the shipping cost are necessary due to the location of your delivery address.

HSD070JWW3-A10 LCD Panel After-Sales Service Policy :

Return Policy:

We offer a 5-day return window without the need for providing reasons. If you wish to return the item within this period, please contact us. Please note that the shipping cost for the return will be covered by the buyer.

Warranty Coverage:

This item is covered by a 90-day warranty. However, certain damages resulting from human error or natural disasters are not included in our warranty coverage. Examples of such exclusions include improper installation, physical damage (such as scratches or broken screens), mishandling, and power surges.

Warranty Void Conditions:

Products sold in our store come with fragile warranty tags. If these tags are tampered with or removed during the warranty period, the warranty will be considered void. Additionally, any disconnection or loss of the item will result in the forfeiture of the warranty, and we will not assume responsibility in such cases.

Please be mindful of these terms and conditions when availing of our after-sales services. Should you have any questions or require assistance, do not hesitate to reach out to us for further clarification.

HSD070JWW3-A10 LCD Panel FAQ :

Q: How long will I receive my goods HSD070JWW3-A10 ?

A: Generally speaking ,It will take 3-8days to your hand by DHL/FEDEX/UPS/TNT.

Q: If I place order now,when will you ship the goods of HSD070JWW3-A10 ?

A: The order will be shipped within 2-3 working days after received your payment.

Q: Do you accept sample orders of HSD070JWW3-A10 ?

A: Of course!sample order is welcome !

Q: How long is the warranty ?

A: We offer 90days warranty .
