LCD Laptop Screen

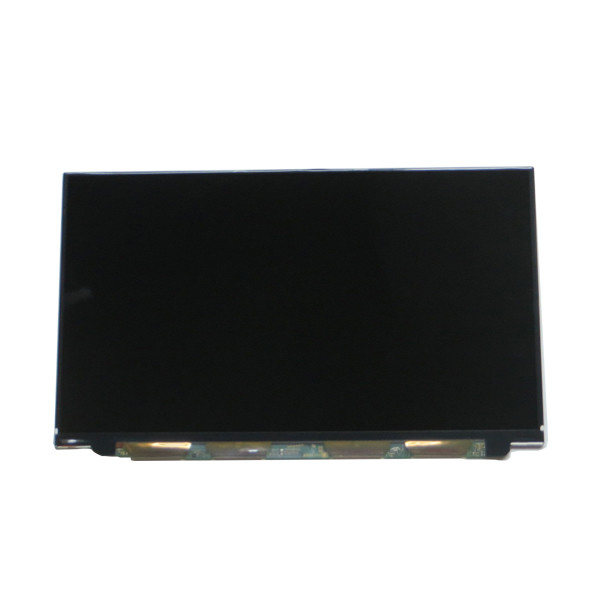

B133HTN01.0 NEW 13.3 inch Laptop LCD Display

All Category

Floor Standing Digital Signage

Stretched Bar LCD Display

chance

info@yongs-hk.com

86-18575563918

Contact Now

B133HTN01.0 NEW 13.3 inch Laptop LCD Display

Brand Name:	AUO
Model Number:	B133HTN01.0-SDF3
MOQ:	1 pcs
Price:	Negotiable
Packaging Details:	Original packaging/conventional packaging box
Payment Terms:	T/T, Western Union

Detail Information

Product Description

Detail Information

Place of Origin:

China

Model Name:

B133HTN01.0

Diagonal Size:

13.3"

Panel Type:

A-Si TFT-LCD, LCM

Resolution:

1920(RGB)×1080, FHD 166PPI

Pixel Format:

RGB Vertical Stripe

Active Area:

293.472(W)×165.078(H) Mm

Operating Mode:

TN, Normally White, Transmissive

Light Source:

WLED, 15K Hours, With LED Driver

View Direction:

6 O'clock

Application:

Laptop

Supply Ability:

100000 Unit/Units per Month

Product Description

B133HTN01.0 NEW 13.3 inch Laptop LCD Display

B133HTN01.0 LCD Panel Product details :

Brand	AUO
Model P/N	B133HTN01.0
Diagonal Size	13.3"
Panel Type	a-Si TFT-LCD, LCM
Resolution	1920(RGB)×1080, FHD 166PPI
Pixel Format	RGB Vertical Stripe
Active Area	293.472(W)×165.078(H) mm
Bezel Opening	-
Outline(mm)	306.3 × 194.8× 3 (H×V×D)
Treatment	Glare (Haze 0%), Hard coating (3H), Reflection 4.3% (Typ.)
Luminance	250 cd/m² (Typ.)
Contrast Ratio	500 : 1 (Typ.) (TM)
Viewing Angle	45/45/15/35 (Typ.)(CR≥10)
Response	8 (Typ.)(Tr+Td) ms
Good View at	6 o'clock
Work Mode	TN, Normally White, Transmissive
Color Depth	262K 45%NTSC
Backlight	WLED, 15K hours, With LED Driver
Outline Shape	Slim (PCBA Flat, T≤3.2mm)
Used for	Laptop
Refresh Rate	60Hz
Touchscreen	Without
Signal Type	eDP (2 Lanes), 30 pinsConnector
Voltage Supply	3.3V (Typ.)
Max. Ratings	Storage Temp.: -20 ~ 60 °C Operating Temp.: 0 ~ 50 °C

B133HTN01.0 LCD Panel Pre-order Checklist :

Compatibility Verification:

Prior to placing your order, kindly verify if this LCD screen is compatible with your specific machine model. Should you have any doubts or require assistance, please do not hesitate to reach out to us for clarification.

Contact Information and Address Details:

Please ensure that your phone number, complete address, and zip code are accurate and up to date before proceeding with your order placement.

B133HTN01.0 LCD Panel Shipping and Package :

B133HTN01.0 LCD Panel Delivery Details :

Dispatch Timeframe:

Your ordered items will be dispatched within 7 working days following confirmation of payment.

Shipping Options:

The method of shipping will be determined based on the shipping cost option you select during checkout. Please choose a shipping method that best suits your requirements and budget.

Additional Charges for Remote Areas:

If your delivery address is situated in a remote area, there may be additional charges incurred. We will promptly inform you if any adjustments to the shipping cost are necessary due to the location of your delivery address.

B133HTN01.0 LCD Panel After-Sales Service Policy :

Return Policy:

We offer a 5-day return window without the need for providing reasons. If you wish to return the item within this period, please contact us. Please note that the shipping cost for the return will be covered by the buyer.

Warranty Coverage:

This item is covered by a 90-day warranty. However, certain damages resulting from human error or natural disasters are not included in our warranty coverage. Examples of such exclusions include improper installation, physical damage (such as scratches or broken screens), mishandling, and power surges.

Warranty Void Conditions:

Products sold in our store come with fragile warranty tags. If these tags are tampered with or removed during the warranty period, the warranty will be considered void. Additionally, any disconnection or loss of the item will result in the forfeiture of the warranty, and we will not assume responsibility in such cases.

Please be mindful of these terms and conditions when availing of our after-sales services. Should you have any questions or require assistance, do not hesitate to reach out to us for further clarification.

B133HTN01.0 LCD Panel FAQ :

Q: If I place order now,when will you ship the goods B133HTN01.0 ?

A: The order will be shipped within 2-3 working days after received your payment.

Q: Can you give me a discount if I need a large quantity B133HTN01.0 ?

A: Of course!If you make a large order, we will give you a discount.

Q: How long will I receive my goods B133HTN01.0 ?

A: Generally speaking ,It will take 3-8days to your hand by DHL/FEDEX/UPS/TNT.

Q: How to make payment B133HTN01.0 ?

A: We accept T/T , Paypal , western union .
