LCD Touch Panel Display

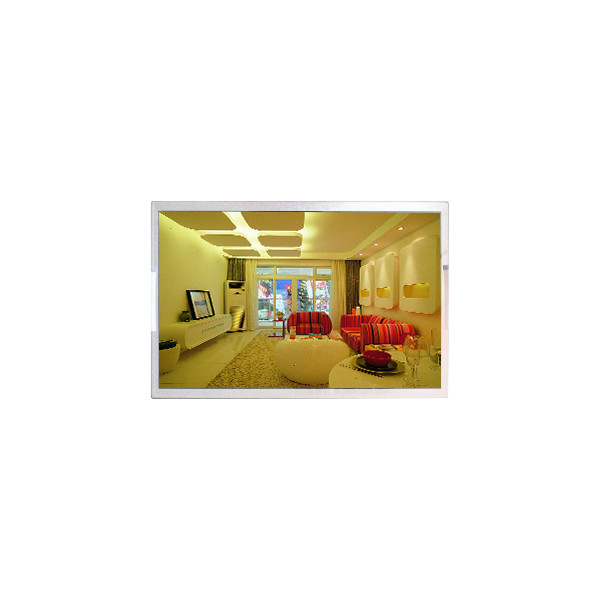

PV055AHQ-L80 LCD Panel 5.5 inch Touch LCD Display

All Category

Floor Standing Digital Signage

PV055AHQ-L80 LCD Panel 5.5 inch Touch LCD Display

Brand Name:	BOE
Model Number:	PV055AHQ-L80
MOQ:	1 pcs
Price:	Negotiable
Packaging Details:	Original packaging/conventional packaging box
Payment Terms:	T/T, Western Union

Detail Information

Product Description

Detail Information

Place of Origin:

China

Model Name:

PV055AHQ-L80

Diagonal Size:

Panel Type:

A-Si TFT-LCD, CELL , Q-CUT (Full Cell)

Resolution:

720(RGB)×1280, WXGA 269PPI

Pixel Format:

RGB Vertical Stripe

Active Area:

67.932(W)×120.768(H) Mm

Operating Mode:

ADS, Normally Black, Transmissive

Support Color:

16.7M 25% NTSC

View Direction:

Symmetry

Application:

Handheld & PDA

Supply Ability:

100000 Unit/Units per Month

Product Description

PV055AHQ-L80 LCD Panel 5.5 inch Touch LCD Display

PV055AHQ-L80 LCD Panel Product details :

Brand	BOE
Model P/N	PV055AHQ-L80
Diagonal Size	5.5"
Panel Type	a-Si TFT-LCD, CELL , Q-CUT (Full Cell)
Resolution	720(RGB)×1280, WXGA 269PPI
Pixel Format	RGB Vertical Stripe
Active Area	67.932(W)×120.768(H) mm
Bezel Opening	-
Outline Dim.	70.332(H)×127.467(V)×0.8(D) mm
Treatment	Without Polarizer
Luminance	0 cd/m²
Contrast Ratio	1200:1 (Typ.) (TM)
View Direction	Symmetry
Response Time	25 (Typ.)(Tr+Td)
Viewing Angle	85/85/85/85 (Typ.)(CR≥10)
Operating Mode	ADS, Normally Black, Transmissive
Plate Thickness	0.40+0.40 mm
Support Color	16.7M 25% NTSC
Light Source	No B/L
Weight	-
Designed For	Handheld & PDA
Frame Rate	60Hz
Touch Panel	In-Cell Touch
Environment	Operating Temperature: -30 ~ 80 °C ; Storage Temperature: -40 ~ 90 °C

PV055AHQ-L80 LCD Panel Pre-order Checklist :

Compatibility Verification:

Prior to placing your order, kindly verify if this LCD screen is compatible with your specific machine model. Should you have any doubts or require assistance, please do not hesitate to reach out to us for clarification.

Contact Information and Address Details:

Please ensure that your phone number, complete address, and zip code are accurate and up to date before proceeding with your order placement.

PV055AHQ-L80 LCD Panel Shipping and Package :

PV055AHQ-L80 LCD Panel Delivery Details :

Dispatch Timeframe:

Your ordered items will be dispatched within 7 working days following confirmation of payment.

Shipping Options:

The method of shipping will be determined based on the shipping cost option you select during checkout. Please choose a shipping method that best suits your requirements and budget.

Additional Charges for Remote Areas:

If your delivery address is situated in a remote area, there may be additional charges incurred. We will promptly inform you if any adjustments to the shipping cost are necessary due to the location of your delivery address.

PV055AHQ-L80 LCD Panel After-Sales Service Policy :

Return Policy:

We offer a 5-day return window without the need for providing reasons. If you wish to return the item within this period, please contact us. Please note that the shipping cost for the return will be covered by the buyer.

Warranty Coverage:

This item is covered by a 90-day warranty. However, certain damages resulting from human error or natural disasters are not included in our warranty coverage. Examples of such exclusions include improper installation, physical damage (such as scratches or broken screens), mishandling, and power surges.

Warranty Void Conditions:

Products sold in our store come with fragile warranty tags. If these tags are tampered with or removed during the warranty period, the warranty will be considered void. Additionally, any disconnection or loss of the item will result in the forfeiture of the warranty, and we will not assume responsibility in such cases.

Please be mindful of these terms and conditions when availing of our after-sales services. Should you have any questions or require assistance, do not hesitate to reach out to us for further clarification.

PV055AHQ-L80 LCD Panel FAQ :

Q: How to make payment of PV055AHQ-L80 ?

A: We accept T/T , Paypal , western union .

Q: Can you give me a discount if I need a large quantity of PV055AHQ-L80 ?

A: Of course!If you make a large order, we will give you a discount.

Q: Do you accept sample orders of PV055AHQ-L80 ?

A: Of course!sample order is welcome !

Q: How long will I receive my goods PV055AHQ-L80 ?

A: Generally speaking ,It will take 3-8days to your hand by DHL/FEDEX/UPS/TNT.
