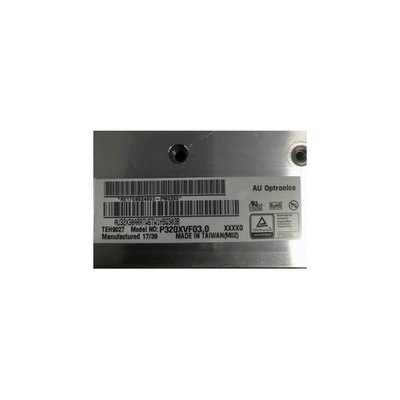

P320XVF03.0 32.0 inch 1366*768 LCD Display Screen for Digital Signage

Brand Name:	AUO
Model Number:	P320XVF03.0
MOQ:	1 pcs
Price:	Negotiable
Packaging Details:	Original packaging/conventional packaging box
Payment Terms:	T/T, Western Union

Detail Information

Product Description

Detail Information

Place of Origin:

China

Model Name:

P320XVF03.0

Diagonal Size:

32.0"

Panel Type:

A-Si TFT-LCD, LCM

Resolution:

1366(RGB)×768, WXGA 49PPI

Pixel Format:

RGB Vertical Stripe

Active Area:

697.685(W)×392.256(H) Mm

Operating Mode:

AMVA, Normally Black, Transmissive

Support Color:

16.7M 72%NTSC

View Direction:

Symmetry

Application:

Digital Signage、Transparent Display

Supply Ability:

100000 Unit/Units per Month

Product Description

P320XVF03.0 32.0 inch 1366*768 LCD Display Screen for Digital Signage

P320XVF03.0 LCD Panel Product details :

Brand	AUO
Model P/N	P320XVF03.0
Diagonal Size	32.0"
Panel Type	a-Si TFT-LCD, LCM
Resolution	1366(RGB)×768, WXGA 49PPI
Pixel Format	RGB Vertical Stripe
Active Area	697.685(W)×392.256(H) mm
Bezel Opening	702.68(W)×397.25(H) mm
Outline Size	745.68(W)×485.75(H)×22(D) mm
Surface	Antiglare (Haze 2%), Hard coating (3H)
Brightness	-
Contrast Ratio	3000:1 (Typ.) (TM)
Viewing Angle	89/89/89/89 (Typ.)(CR≥10)
Display Mode	AMVA, Normally Black, Transmissive
Best View on	Symmetry
Response Time	6.5 (Typ.)(G to G)
Display Colors	16.7M 72%NTSC
Lamp Type	No B/L
Frequency	60Hz
Touch Screen	Without
Panel Weight	2.08Kgs (Typ.)
Application	Digital Signage,Transparent Display
Signal Interface	HDMI, 19 pins Connector
Input Voltage	12.0V (Typ.)
Environment	Operating Temp.: 0 ~ 50 °C ;Storage Temp.: -20 ~ 60 °C

P320XVF03.0 LCD Panel Pre-order Checklist :

Compatibility Verification:

Prior to placing your order, kindly verify if this LCD screen is compatible with your specific machine model. Should you have any doubts or require assistance, please do not hesitate to reach out to us for clarification.

Contact Information and Address Details:

Please ensure that your phone number, complete address, and zip code are accurate and up to date before proceeding with your order placement.

P320XVF03.0 LCD Panel Shipping and Package :

P320XVF03.0 LCD Panel Delivery Details :

Dispatch Timeframe:

Your ordered items will be dispatched within 7 working days following confirmation of payment.

Shipping Options:

The method of shipping will be determined based on the shipping cost option you select during checkout. Please choose a shipping method that best suits your requirements and budget.

Additional Charges for Remote Areas:

If your delivery address is situated in a remote area, there may be additional charges incurred. We will promptly inform you if any adjustments to the shipping cost are necessary due to the location of your delivery address.

P320XVF03.0 LCD Panel After-Sales Service Policy :

Return Policy:

We offer a 5-day return window without the need for providing reasons. If you wish to return the item within this period, please contact us. Please note that the shipping cost for the return will be covered by the buyer.

Warranty Coverage:

This item is covered by a 90-day warranty. However, certain damages resulting from human error or natural disasters are not included in our warranty coverage. Examples of such exclusions include improper installation, physical damage (such as scratches or broken screens), mishandling, and power surges.

Warranty Void Conditions:

Products sold in our store come with fragile warranty tags. If these tags are tampered with or removed during the warranty period, the warranty will be considered void. Additionally, any disconnection or loss of the item will result in the forfeiture of the warranty, and we will not assume responsibility in such cases.

Please be mindful of these terms and conditions when availing of our after-sales services. Should you have any questions or require assistance, do not hesitate to reach out to us for further clarification.

P320XVF03.0 LCD Panel FAQ :

Q: Can you tested the P320XVF03.0 before shipping ?

A: Of course , our lcd panel P320XVF03.0 was Strictly tested before shipping.

Q: How to order P320XVF03.0 ?

A: We accept T/T , Paypal , western union .

Q: How long the warranty of the lcd P320XVF03.0 ?

A: 90 days .

Q: What happen if the lcd panel P320XVF03.0 I received can't work ?

A: P320XVF03.0 was tesed before shipping.If happen that , pls check all the connect cable again,If still has problems ,we accept exchange or return panel .
