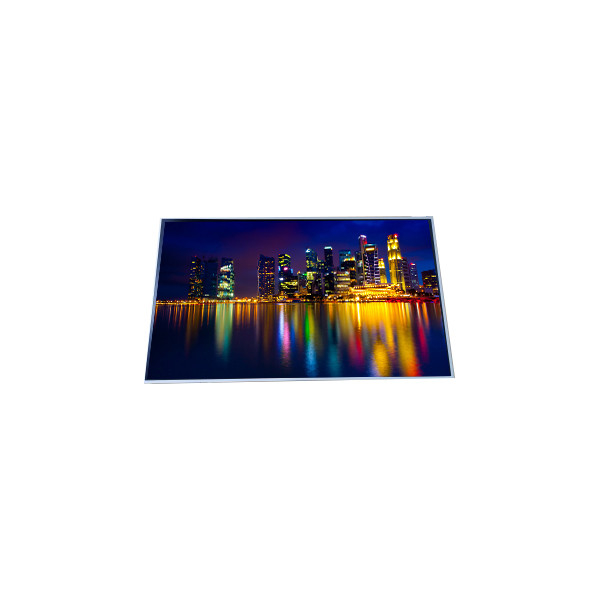

P420IVN01.0 42.0 inch 1920*480 LCD Display Screen for Stretched Bar LCD
Product Details:
| Place of Origin: | China |
| Brand Name: | AUO |
| Model Number: | P420IVN01.0 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Original packaging/conventional packaging box |
| Delivery Time: | 7 Days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 100000 Unit/Units per Month |
|
Detail Information |
|||
| Model Name: | P420IVN01.0 | Diagonal Size: | 42" (4/9 Cut Of 47") |
|---|---|---|---|
| Panel Type: | A-Si TFT-LCD, LCM | Resolution: | 1920(RGB)×480 46PPI |
| Pixel Format: | RGB Vertical Stripe | Active Area: | 1039.68(W)×259.92(H) Mm |
| Operating Mode: | AMVA3, Normally Black, Transmissive | Support Color: | 16.7M/1.07B 99%sRGB |
| View Direction: | Symmetry | Application: | Digital Signage、Outdoor High Brightness、Stretched Bar LCD |
Product Description
P420IVN01.0 42.0 inch 1920*480 LCD Display Screen for Stretched Bar LCD
P420IVN01.0 LCD Panel Product details :
| Brand | AUO |
| Model P/N | P420IVN01.0 |
| Diagonal Size | 42" (4/9 cut of 47") |
| Panel Type | a-Si TFT-LCD, LCM |
| Resolution | 1920(RGB)×480 46PPI |
| Pixel Format | RGB Vertical Stripe |
| Active Area | 1039.68(W)×259.92(H) mm |
| Bezel Opening | 1043.68(W)×263.92(H) mm |
| Outline(mm) | 1059.48 × 283.52× 56.9 (H×V×D) |
| Treatment | Antiglare (Haze 44%), Hard coating (3H) |
| Luminance | 700 cd/m² (Typ.) |
| Contrast Ratio | 4000 : 1 (Typ.) (TM) |
| Viewing Angle | 89/89/89/89 (Typ.)(CR≥10) |
| Response | 8 (Typ.)(G to G) ms |
| Good View at | Symmetry |
| Work Mode | AMVA3, Normally Black, Transmissive |
| Color Depth | 16.7M/1.07B 99%sRGB |
| Backlight | WLED, 50K hours, With LED Driver |
| Mass | 5.5Kgs (Typ.) |
| Used for | Digital Signage,Outdoor High Brightness,Stretched Bar LCD |
| Refresh Rate | 60Hz |
| Touchscreen | Without |
| Signal Type | LVDS (2 ch, 8/10-bit), 51 pinsConnector |
| Voltage Supply | 12.0V (Typ.) |
| Max. Ratings | Storage Temp.: -20 ~ 60 °C Operating Temp.: 0 ~ 50 °C |
P420IVN01.0 LCD Panel Pre-order Checklist :
Compatibility Verification:
Prior to placing your order, kindly verify if this LCD screen is compatible with your specific machine model. Should you have any doubts or require assistance, please do not hesitate to reach out to us for clarification.
Contact Information and Address Details:
Please ensure that your phone number, complete address, and zip code are accurate and up to date before proceeding with your order placement.
P420IVN01.0 LCD Panel Shipping and Package :
P420IVN01.0 LCD Panel Delivery Details :
Dispatch Timeframe:
Your ordered items will be dispatched within 7 working days following confirmation of payment.
Shipping Options:
The method of shipping will be determined based on the shipping cost option you select during checkout. Please choose a shipping method that best suits your requirements and budget.
Additional Charges for Remote Areas:
If your delivery address is situated in a remote area, there may be additional charges incurred. We will promptly inform you if any adjustments to the shipping cost are necessary due to the location of your delivery address.
P420IVN01.0 LCD Panel After-Sales Service Policy :
Return Policy:
We offer a 5-day return window without the need for providing reasons. If you wish to return the item within this period, please contact us. Please note that the shipping cost for the return will be covered by the buyer.
Warranty Coverage:
This item is covered by a 90-day warranty. However, certain damages resulting from human error or natural disasters are not included in our warranty coverage. Examples of such exclusions include improper installation, physical damage (such as scratches or broken screens), mishandling, and power surges.
Warranty Void Conditions:
Products sold in our store come with fragile warranty tags. If these tags are tampered with or removed during the warranty period, the warranty will be considered void. Additionally, any disconnection or loss of the item will result in the forfeiture of the warranty, and we will not assume responsibility in such cases.
Please be mindful of these terms and conditions when availing of our after-sales services. Should you have any questions or require assistance, do not hesitate to reach out to us for further clarification.
P420IVN01.0 LCD Panel FAQ :
Q: How long will I receive my goods P420IVN01.0 ?
A: Generally speaking ,It will take 3-8days to your hand by DHL/FEDEX/UPS/TNT.
Q: Can you give me a discount if I need a large quantity of P420IVN01.0 ?
A: Of course!If you make a large order, we will give you a discount.
Q: Can I pay my order of P420IVN01.0 via credit card ?
A: Yes!you can use your credit card through your Paypal account.
Q: Can You declare my order of P420IVN01.0 to a lower price in commercial invoice for customs ?
A: Yes , we can . pls inform us before shipping .
Want to Know more details about this product
