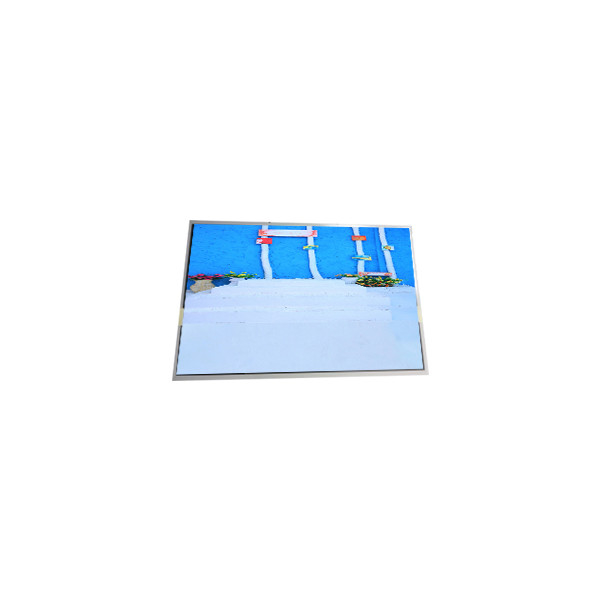

C1560FD36530-BN-AF New 15.6 inch 1080p LCD Display Screen for Industrial
Product Details:
| Place of Origin: | China |
| Brand Name: | Kyocera |
| Model Number: | C1560FD36530-BN-AF |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Original packaging/conventional packaging box |
| Delivery Time: | 7 Days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 100000 Unit/Units per Month |
|
Detail Information |
|||
| Model Name: | C1560FD36530-BN-AF | Diagonal Size: | 15.6" |
|---|---|---|---|
| Panel Type: | A-Si TFT-LCD, LCM | Resolution: | 1920(RGB)×1080, FHD 141PPI |
| Pixel Format: | RGB Vertical Stripe | Active Area: | 344.16(W)×193.59(H) Mm |
| Operating Mode: | AWV, Normally Black, Transmissive | Support Color: | 16.7M |
| View Direction: | Symmetry | Application: | Industrial /Outdoor High Brightness |
Product Description
C1560FD36530-BN-AF New 15.6 inch 1080p LCD Display Screen for Industrial
C1560FD36530-BN-AF LCD Panel Product details :
| Brand | Kyocera |
| Model P/N | C1560FD36530-BN-AF |
| Diagonal Size | 15.6" |
| Panel Type | a-Si TFT-LCD, LCM |
| Resolution | 1920(RGB)×1080, FHD 141PPI |
| Pixel Format | RGB Vertical Stripe |
| Active Area | 344.16(W)×193.59(H) mm |
| Bezel Opening | 347.06(W)×196.49(H) mm |
| Outline Size | 363.8(H)×215.9(V) mm |
| Surface | Antiglare |
| Brightness | 1200 cd/m² (Typ.) |
| Contrast Ratio | 800:1 (Typ.) (TM) |
| Viewing Angle | 85/85/85/85 (Typ.)(CR≥10) |
| Display Mode | AWV, Normally Black, Transmissive |
| Best View on | Symmetry |
| Response Time | 13/12 (Typ.)(Tr/Td) |
| Display Colors | 16.7M |
| Lamp Type | WLED , 50K hours , W/O Driver |
| Frequency | 60Hz |
| Touch Screen | Without |
| Panel Weight | 1.05Kgs (Typ.) |
| Application | Industrial /Outdoor High Brightness |
| Signal Interface | LVDS (2 ch, 8-bit) , 40 pins Connector |
| Input Voltage | 3.3V (Typ.) |
| Environment | Operating Temperature: -30 ~ 80 °C ; Storage Temperature: -30 ~ 80 °C |
C1560FD36530-BN-AF LCD Panel Pre-order Checklist :
Compatibility Verification:
Prior to placing your order, kindly verify if this LCD screen is compatible with your specific machine model. Should you have any doubts or require assistance, please do not hesitate to reach out to us for clarification.
Contact Information and Address Details:
Please ensure that your phone number, complete address, and zip code are accurate and up to date before proceeding with your order placement.
C1560FD36530-BN-AF LCD Panel Shipping and Package :
C1560FD36530-BN-AF LCD Panel Delivery Details :
Dispatch Timeframe:
Your ordered items will be dispatched within 7 working days following confirmation of payment.
Shipping Options:
The method of shipping will be determined based on the shipping cost option you select during checkout. Please choose a shipping method that best suits your requirements and budget.
Additional Charges for Remote Areas:
If your delivery address is situated in a remote area, there may be additional charges incurred. We will promptly inform you if any adjustments to the shipping cost are necessary due to the location of your delivery address.
C1560FD36530-BN-AF LCD Panel After-Sales Service Policy :
Return Policy:
We offer a 5-day return window without the need for providing reasons. If you wish to return the item within this period, please contact us. Please note that the shipping cost for the return will be covered by the buyer.
Warranty Coverage:
This item is covered by a 90-day warranty. However, certain damages resulting from human error or natural disasters are not included in our warranty coverage. Examples of such exclusions include improper installation, physical damage (such as scratches or broken screens), mishandling, and power surges.
Warranty Void Conditions:
Products sold in our store come with fragile warranty tags. If these tags are tampered with or removed during the warranty period, the warranty will be considered void. Additionally, any disconnection or loss of the item will result in the forfeiture of the warranty, and we will not assume responsibility in such cases.
Please be mindful of these terms and conditions when availing of our after-sales services. Should you have any questions or require assistance, do not hesitate to reach out to us for further clarification.
C1560FD36530-BN-AF LCD Panel FAQ :
Q: Can I pay my order of C1560FD36530-BN-AF via credit card ?
A: Yes!you can use your credit card through your Paypal account.
Q: Can you give me a discount if I need a large quantity of C1560FD36530-BN-AF ?
A: Of course!If you make a large order, we will give you a discount.
Q: How can I trace my order of C1560FD36530-BN-AF ?
A: we will give you tracking number then you can trace your order from website.
Q: How long is the warranty ?
A: We offer 90 days warranty .
Want to Know more details about this product
