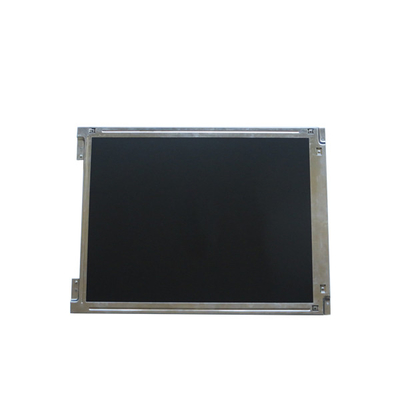

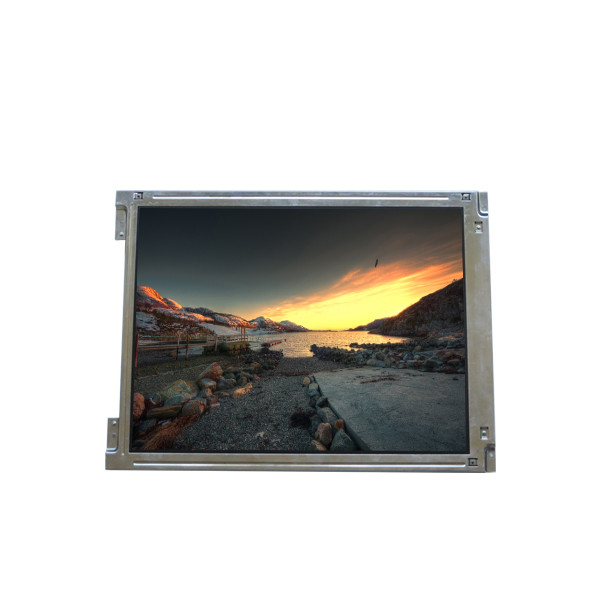

L150X3M EC-1 15.0 inch 1024*768 LCD Display Screen

Brand Name:	AUO
Model Number:	L150X3M EC-1
MOQ:	1 pcs
Price:	Negotiable
Packaging Details:	Original packaging/conventional packaging box
Payment Terms:	T/T, Western Union

Detail Information

Product Description

Detail Information

Place of Origin:

China

Model Name:

L150X3M EC-1

Diagonal Size:

15.0"

Panel Type:

A-Si TFT-LCD, LCM

Resolution:

1024(RGB)×768, XGA 85PPI

Pixel Format:

RGB Vertical Stripe

Active Area:

304.128(W)×228.096(H) Mm

Operating Mode:

TN, Normally White, Transmissive

Support Color:

262K 69%NTSC

View Direction:

6 O'clock

Application:

Desktop Monitor

Supply Ability:

100000 Unit/Units per Month

Product Description

L150X3M EC-1 15.0 inch 1024*768 LCD Display Screen

L150X3M EC-1 LCD Panel Product details :

Brand	ACER
Model P/N	L150X3M EC-1
Diagonal Size	15.0"
Panel Type	a-Si TFT-LCD, LCM
Resolution	1024(RGB)×768, XGA 85PPI
Pixel Format	RGB Vertical Stripe
Active Area	304.128(W)×228.096(H) mm
Bezel Opening	308.1(W)×232.1(H) mm
Outline Size	331.3(W)×249(H)×12.1(D) mm
Surface	Antiglare, Hard coating (3H)
Brightness	200 cd/m² (Typ.)
Contrast Ratio	350:1 (Typ.) (TM)
Viewing Angle	60/60/40/60 (Typ.)(CR≥10)
Display Mode	TN, Normally White, Transmissive
Best View on	6 o'clock
Response Time	8/22 (Typ.)(Tr/Td)
Display Colors	262K 69%NTSC
Lamp Type	2 pcsCCFL, Without Driver
Frequency	60Hz
Touch Screen	Without
Panel Weight	1.10Kgs (Typ.)
Application	Desktop Monitor
Signal Interface	TTL (2 ch, 6-bit), 80 pins Connector
Input Voltage	3.3V (Typ.)
Environment	Operating Temp.: 0 ~ 50 °C ;Storage Temp.: -20 ~ 60 °C

L150X3M EC-1 LCD Panel Pre-order Checklist :

Compatibility Verification:

Prior to placing your order, kindly verify if this LCD screen is compatible with your specific machine model. Should you have any doubts or require assistance, please do not hesitate to reach out to us for clarification.

Contact Information and Address Details:

Please ensure that your phone number, complete address, and zip code are accurate and up to date before proceeding with your order placement.

L150X3M EC-1 LCD Panel Shipping and Package :

L150X3M EC-1 LCD Panel Delivery Details :

Dispatch Timeframe:

Your ordered items will be dispatched within 7 working days following confirmation of payment.

Shipping Options:

The method of shipping will be determined based on the shipping cost option you select during checkout. Please choose a shipping method that best suits your requirements and budget.

Additional Charges for Remote Areas:

If your delivery address is situated in a remote area, there may be additional charges incurred. We will promptly inform you if any adjustments to the shipping cost are necessary due to the location of your delivery address.

L150X3M EC-1 LCD Panel After-Sales Service Policy :

Return Policy:

We offer a 5-day return window without the need for providing reasons. If you wish to return the item within this period, please contact us. Please note that the shipping cost for the return will be covered by the buyer.

Warranty Coverage:

This item is covered by a 90-day warranty. However, certain damages resulting from human error or natural disasters are not included in our warranty coverage. Examples of such exclusions include improper installation, physical damage (such as scratches or broken screens), mishandling, and power surges.

Warranty Void Conditions:

Products sold in our store come with fragile warranty tags. If these tags are tampered with or removed during the warranty period, the warranty will be considered void. Additionally, any disconnection or loss of the item will result in the forfeiture of the warranty, and we will not assume responsibility in such cases.

Please be mindful of these terms and conditions when availing of our after-sales services. Should you have any questions or require assistance, do not hesitate to reach out to us for further clarification.

L150X3M EC-1 LCD Panel FAQ :

Q: Can I pay my order of L150X3M EC-1 via credit card ?

A: Yes!you can use your credit card through your Paypal account.

Q: Can you give me a discount if I need a large quantity of L150X3M EC-1 ?

A: Of course!If you make a large order, we will give you a discount.

Q: How can I trace my order of L150X3M EC-1 ?

A: we will give you tracking number then you can trace your order from website.

Q: How long is the warranty ?

A: We offer 90 days warranty .
