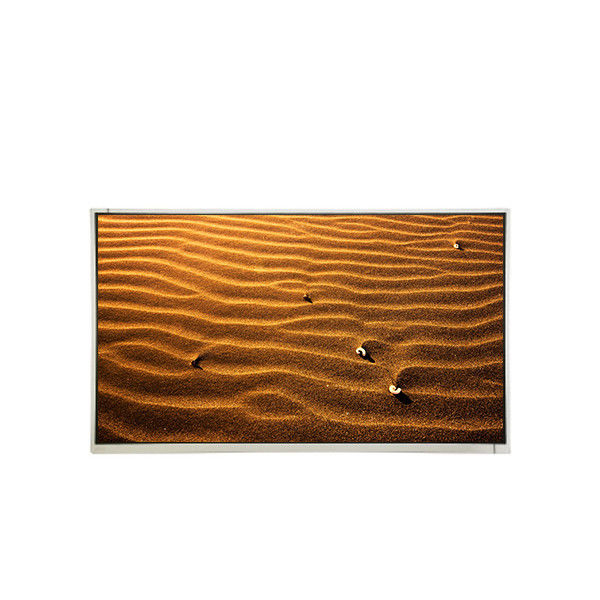

M238DTN01.7 23.8 inch 2560*1440 LCD Display Screen

Brand Name:	AUO
Model Number:	M238DTN01.7
MOQ:	1 pcs
Price:	Negotiable
Packaging Details:	Original packaging/conventional packaging box
Payment Terms:	T/T, Western Union

Detail Information

Product Description

Detail Information

Place of Origin:

China

Model Name:

M238DTN01.7

Diagonal Size:

23.8"

Panel Type:

A-Si TFT-LCD, LCM

Resolution:

2560(RGB)×1440, Quad-HD 123PPI

Pixel Format:

RGB Vertical Stripe

Active Area:

526.85(W)×296.35(H) Mm

Operating Mode:

TN, Normally White, Transmissive

Support Color:

16.7M 72% NTSC

Luminance:

350 (Typ.)(cd/m²)

Application:

Desktop Monitor、Gaming

Supply Ability:

100000 Unit/Units per Month

Product Description

M238DTN01.7 23.8 inch 2560*1440 LCD Display Screen

M238DTN01.7 LCD Panel Product details :

Brand	AUO
Model P/N	M238DTN01.7
Diagonal Size	23.8"
Panel Type	a-Si TFT-LCD, LCM
Resolution	2560(RGB)×1440, Quad-HD 123PPI
Pixel Format	RGB Vertical Stripe
Active Area	526.85(W)×296.35(H) mm
Bezel Opening	530.2(W)×299.6(H) mm
Outline(mm)	543(W)×317.4(H)×12.4(D)
Luminance	350 (Typ.)(cd/m²)
Viewing Angle	85/85/80/80 (Typ.)(CR≥10)
Good View at	-
Color Depth	16.7M 72% NTSC
Mass	2.32Kgs (Typ.)
Refresh Rate	165Hz
Treatment	Antiglare, Hard coating (3H)
Contrast Ratio	1000 : 1 (Typ.) (TM)
Work Mode	TN, Normally White, Transmissive
Response	3.5/1.5 (Typ.)(Tr/Td) ms
Backlight	15S4P WLED , 30K hours , No Driver
Used for	Desktop Monitor,Gaming
Touchscreen	Without
Signal Type	eDP (4 Lanes), HBR2 (5.4G/lane), 51 pins Connector
Voltage Supply	12.0V (Typ.)
Max. Ratings	Storage Temp.: -20 ~ 60 °C Operating Temp.: 0 ~ 50 °C

M238DTN01.7 LCD Panel Pre-order Checklist :

Compatibility Verification:

Prior to placing your order, kindly verify if this LCD screen is compatible with your specific machine model. Should you have any doubts or require assistance, please do not hesitate to reach out to us for clarification.

Contact Information and Address Details:

Please ensure that your phone number, complete address, and zip code are accurate and up to date before proceeding with your order placement.

M238DTN01.7 LCD Panel Shipping and Package :

M238DTN01.7 LCD Panel Delivery Details :

Dispatch Timeframe:

Your ordered items will be dispatched within 7 working days following confirmation of payment.

Shipping Options:

The method of shipping will be determined based on the shipping cost option you select during checkout. Please choose a shipping method that best suits your requirements and budget.

Additional Charges for Remote Areas:

If your delivery address is situated in a remote area, there may be additional charges incurred. We will promptly inform you if any adjustments to the shipping cost are necessary due to the location of your delivery address.

M238DTN01.7 LCD Panel After-Sales Service Policy :

Return Policy:

We offer a 5-day return window without the need for providing reasons. If you wish to return the item within this period, please contact us. Please note that the shipping cost for the return will be covered by the buyer.

Warranty Coverage:

This item is covered by a 90-day warranty. However, certain damages resulting from human error or natural disasters are not included in our warranty coverage. Examples of such exclusions include improper installation, physical damage (such as scratches or broken screens), mishandling, and power surges.

Warranty Void Conditions:

Products sold in our store come with fragile warranty tags. If these tags are tampered with or removed during the warranty period, the warranty will be considered void. Additionally, any disconnection or loss of the item will result in the forfeiture of the warranty, and we will not assume responsibility in such cases.

Please be mindful of these terms and conditions when availing of our after-sales services. Should you have any questions or require assistance, do not hesitate to reach out to us for further clarification.

M238DTN01.7 LCD Panel FAQ :

Q: If I place order now,when will you ship the goods of M238DTN01.7 ?

A: The order will be shipped within 2-3 working days after received your payment.

Q: Can you give me a discount if I need a large quantity of M238DTN01.7 ?

A: Of course!If you make a large order, we will give you a discount.

Q: How long will I receive my goods M238DTN01.7 ?

A: Generally speaking ,It will take 3-8days to your hand by DHL/FEDEX/UPS/TNT.

Q: How to make payment of M238DTN01.7 ?

A: We accept T/T , Paypal , western union .
