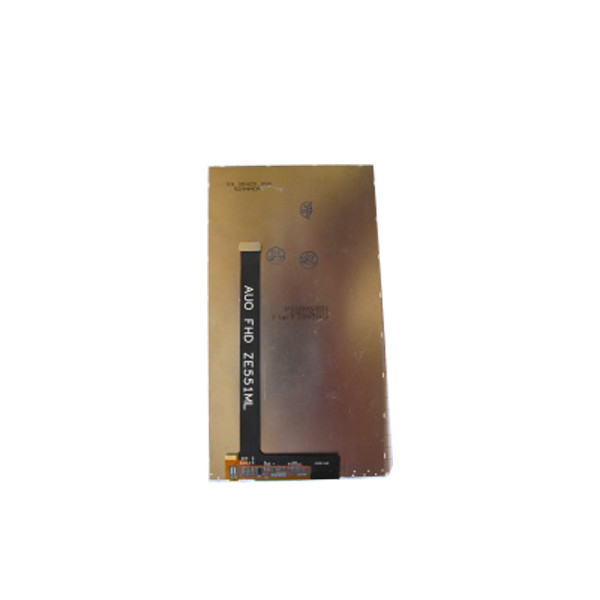

H546DAN03.4 5.5 inch 1080*1920 TFT LCD Display Screen

Brand Name:	AUO
Model Number:	H546DAN03.4
MOQ:	2 pcs
Price:	Negotiable
Packaging Details:	Original packaging/conventional packaging box
Payment Terms:	T/T, Western Union

Detail Information

Product Description

Ratings & Reviews

Detail Information

Place of Origin:

China

Model Name:

H546DAN03.4

Diagonal Size:

Panel Type:

LTPS TFT-LCD, LCM

Resolution:

1080(RGB)×1920, FHD 403PPI

Pixel Format:

RGB Vertical Stripe

Active Area:

68.04(W)×120.96(H) Mm

Operating Mode:

AHVA, Normally Black, Transmissive

Support Color:

16.7M 70%NTSC

View Direction:

Symmetry

Application:

Mobile Phone

Supply Ability:

100000 Unit/Units per Month

Product Description

H546DAN03.4 5.5 inch 1080*1920 TFT LCD Display Screen

H546DAN03.4 LCD Panel Product details :

Brand	AUO
Model P/N	H546DAN03.4
Diagonal Size	5.5"
Panel Type	LTPS TFT-LCD, LCM
Resolution	1080(RGB)×1920, FHD 403PPI
Pixel Format	RGB Vertical Stripe
Active Area	68.04(W)×120.96(H) mm
Bezel Opening	-
Outline(mm)	70.44 × 128.56× 1.68 (H×V×D)
Treatment	-
Luminance	450 cd/m² (Typ.)
Contrast Ratio	1000 : 1 (Typ.) (TM)
Viewing Angle	80/80/80/80 (Typ.)(CR≥10)
Response	-
Good View at	Symmetry
Work Mode	AHVA, Normally Black, Transmissive
Color Depth	16.7M 70%NTSC
Backlight	6S2PWLED, No Driver
Mass	12.0g (Typ.)
Used for	Mobile Phone
Refresh Rate	60Hz
Touchscreen	Without
Signal Type	MIPI (4 data lanes), 30 pins Connector
Voltage Supply	1.8/2.8V (Typ.)(VDDI/VCI)
Max. Ratings	Storage Temp.: -30 ~ 80 °C Operating Temp.: -20 ~ 70 °C

H546DAN03.4 LCD Panel Pre-order Checklist :

Compatibility Verification:

Prior to placing your order, kindly verify if this LCD screen is compatible with your specific machine model. Should you have any doubts or require assistance, please do not hesitate to reach out to us for clarification.

Contact Information and Address Details:

Please ensure that your phone number, complete address, and zip code are accurate and up to date before proceeding with your order placement.

H546DAN03.4 LCD Panel Shipping and Package :

H546DAN03.4 LCD Panel Delivery Details :

Dispatch Timeframe:

Your ordered items will be dispatched within 7 working days following confirmation of payment.

Shipping Options:

The method of shipping will be determined based on the shipping cost option you select during checkout. Please choose a shipping method that best suits your requirements and budget.

Additional Charges for Remote Areas:

If your delivery address is situated in a remote area, there may be additional charges incurred. We will promptly inform you if any adjustments to the shipping cost are necessary due to the location of your delivery address.

H546DAN03.4 LCD Panel After-Sales Service Policy :

Return Policy:

We offer a 5-day return window without the need for providing reasons. If you wish to return the item within this period, please contact us. Please note that the shipping cost for the return will be covered by the buyer.

Warranty Coverage:

This item is covered by a 90-day warranty. However, certain damages resulting from human error or natural disasters are not included in our warranty coverage. Examples of such exclusions include improper installation, physical damage (such as scratches or broken screens), mishandling, and power surges.

Warranty Void Conditions:

Products sold in our store come with fragile warranty tags. If these tags are tampered with or removed during the warranty period, the warranty will be considered void. Additionally, any disconnection or loss of the item will result in the forfeiture of the warranty, and we will not assume responsibility in such cases.

Please be mindful of these terms and conditions when availing of our after-sales services. Should you have any questions or require assistance, do not hesitate to reach out to us for further clarification.

H546DAN03.4 LCD Panel FAQ :

Q: Can you tested the H546DAN03.4 before shipping ?

A: Of course , our lcd panel H546DAN03.4 was Strictly tested before shipping.

Q: How to order H546DAN03.4 ?

A: We accept T/T , Paypal , western union .

Q: What happen if the lcd panel H546DAN03.4 received can't work ?

A:H546DAN03.4 was tesed before shipping.If happen that , pls check all the connect cable again,If still has problems ,we accept exchange or return panel .

Q: Are you manufactory or trade company?

A: We are a Trade Company , We are LCD panel professional distributors ,We have own warehouse and inventory. Our goal is to provide our customers with the best products.
