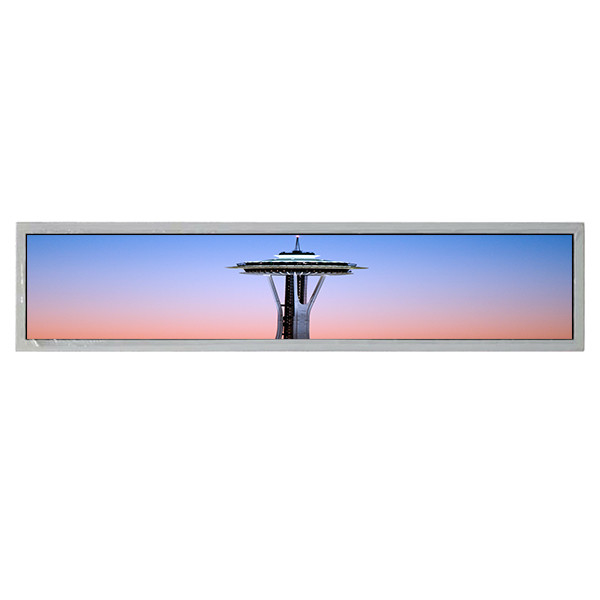

New 43 inch 1920*360 DV430FBB-N10 LCD Screen Module
Product Details:
| Place of Origin: | China |
| Brand Name: | BOE |
| Model Number: | DV430FBB-N10 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Original packaging/conventional packaging box |
| Delivery Time: | 7 Days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 100000 Unit/Units per Month |
|
Detail Information |
|||
| Model Name: | DV430FBB-N10 | Diagonal Size: | 43" |
|---|---|---|---|
| Panel Type: | A-Si TFT-LCD, CELL, FOB | Resolution: | 1920(RGB)×360 45PPI |
| Pixel Format: | RGB Vertical Stripe | Luminance: | 1073.78(W)×201.336(H) Mm |
| Used For: | Digital Signage、Outdoor High Brightness、Stretched Bar LCD | Touch Panel: | Without |
Product Description
New 43 inch 1920*360 DV430FBB-N10 LCD Screen Module
DV430FBB-N10 LCD Panel Product details :
| Brand | BOE |
| Model P/N | DV430FBB-N10 |
| Diagonal Size | 43" |
| Panel Type | a-Si TFT-LCD, CELL, FOB |
| Resolution | 1920(RGB)×360 45PPI |
| Pixel Format | RGB Vertical Stripe |
| Active Area | 1073.78(W)×201.336(H) mm |
| Outline Size | 1083.78(W)×215.53(H)×1.3(D) mm |
| Surface | Antiglare (Haze 25%) |
| Brightness | 0 cd/m² |
| Contrast Ratio | 1200:1 (Typ.) (TM) |
| Viewing Angle | 89/89/89/89 (Typ.)(CR≥10) |
| Display Mode | ADS, Normally Black, Transmissive |
| Best View on | Symmetry |
| Response Time | 8 (Typ.)(G to G) |
| Transmissivity | 6.1% (Typ.)(with Polarizer) |
| Display Colors | 16.7M 72%NTSC |
| Lamp Type | No B/L |
| Frequency | 60Hz |
| Touch Screen | Without |
| Driver IC | COF Built-in 4 source chips |
| Panel Weight | 850g (Typ.) |
| Application | Digital Signage,Outdoor High Brightness,Stretched Bar LCD |
| Signal Interface | LVDS (2 ch, 8-bit), 51 pinsConnector |
| Input Voltage | 12V (Typ.) |
| Environment | Operating Temp.: 0 ~ 50 °C ; Storage Temp.: -20 ~ 60 °C |
| New 43 inch 1920*360 DV430FBB-N10 LCD Screen Module | |
DV430FBB-N10 LCD Display About Us :
Experience: We have over 15 years of experience in the industry, successfully serving more than 10,000 clients across 100 countries.
Product Range: We offer a wide variety of LCD panels and touch screens, acting as an agent for several renowned LCD brands including Kyocera, KOE, and Nanya. Our inventory frequently includes products from Sharp, NEC, Hitachi, AUO, Kyocera, and KOE, which can often be shipped within one day.
Quality and Pricing: We pride ourselves on providing high-quality products at competitive prices. Our goal is to meet your demands with the best products and services available.
DV430FBB-N10 LCD Display Product Details :
Condition:
Before shipment, each unit undergoes multiple tests to ensure perfect functionality. We guarantee 100% quality for our products.
Order Guidance:
If you are uncertain whether this is the correct item for your needs, or if you require a larger quantity, please contact us before placing your order.
Product Authenticity:
The LCD screens are original and are thoroughly tested before being sent to you.
DV430FBB-N10 LCD Display Friendly Reminder :
- Installation Guide:
- An installation guide is not included with the product. We are not responsible for any damage caused by the installation of this accessory. Please ensure you are knowledgeable about the installation process before purchasing.
- Professional Installation Recommended:
- Proper installation requires special skills and techniques. We recommend seeking the assistance of a qualified technician to carry out the repair.
- Disassembly Knowledge:
- Make sure you understand the disassembly procedure before making a purchase.
- Return Policy:
- Returns are only accepted if the item is in its original condition. We strongly recommend testing the item before installation.
DV430FBB-N10 LCD Panel Shipping and Package :
DV430FBB-N10 LCD Panel FAQ :
Q: Can you declared low value for my order when shipping?
A: Yes, We can do it for you if you need.
Q: When would you ship,IF I order DV430FBB-N10 now?
A: The order are shipped within 1-2 working days after received the payment.
Q: Do you accept the sample order?
A: Yes , sample order is welcome.
Q: How to order if I don't know the lcd panel number ?
A: You can offer 2-3 photos (back-side and front-side) for your lcd panel ,So that we can check the panel to you.
