LCD Screen Display Panel

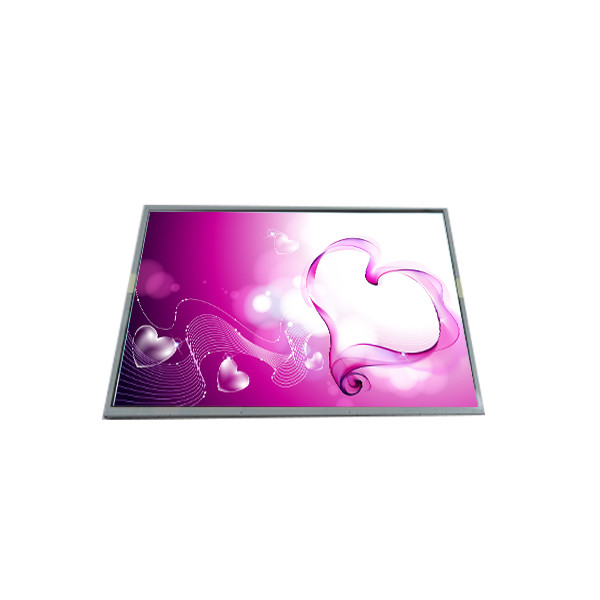

27.0 inch 2560*1440 LM270WQ1-SDE5 LCD Screen For Desktop Monitor

All Category

Floor Standing Digital Signage

27.0 inch 2560*1440 LM270WQ1-SDE5 LCD Screen For Desktop Monitor

Brand Name:	LG Display
Model Number:	LM270WQ1-SDE5
MOQ:	1 pcs
Price:	Negotiable
Packaging Details:	Original packaging/conventional packaging box
Payment Terms:	T/T, Western Union

Detail Information

Product Description

Detail Information

Place of Origin:

China

Model Name:

LM270WQ1-SDE5

Diagonal Size:

27.0"

Panel Type:

A-Si TFT-LCD, LCM

Resolution:

2560(RGB)×1440, Quad-HD 108PPI

Pixel Format:

RGB Vertical Stripe

Luminance:

460 Cd/m² (Typ.)

Used For:

Desktop Monitor

Signal Interface:

EDP (4 Lanes), 36 Pins Connector

Supply Ability:

100000 Unit/Units per Month

Product Description

27.0 inch 2560*1440 LM270WQ1-SDE5 LCD Screen For Desktop Monitor

LM270WQ1-SDE5 LCD Panel Product details :

Brand	LG Display
Model P/N	LM270WQ1-SDE5
Diagonal Size	27.0"
Panel Type	a-Si TFT-LCD, LCM
Resolution	2560(RGB)×1440, Quad-HD 108PPI
Pixel Format	RGB Vertical Stripe
Active Area	596.736(W)×335.664(H) mm
Bezel Opening	601.7(W)×340.7(H) mm
Outline Size	630(W)×376.13(H)×20.3(D) mm
Surface	Glare (Haze 0%), Hard coating (2H)
Brightness	460 cd/m² (Typ.)
Contrast Ratio	1000:1 (Typ.) (TM)
Viewing Angle	89/89/89/89 (Typ.)(CR≥10)
Display Mode	IPS, Normally Black, Transmissive
Best View on	Symmetry
Response Time	6.5/7.5 (Typ.)(Tr/Td)
Display Colors	16.7M 100%sRGB
Lamp Type	3 stringsWLED, 30K hours, Without Driver
Frequency	60Hz
Touch Screen	Without
Panel Weight	4.05Kgs (Typ.)
Application	Desktop Monitor
Signal Interface	eDP (4 Lanes), 36 pins Connector
Input Voltage	12.0V (Typ.)
Environment	Operating Temp.: 0 ~ 50 °C ;Storage Temp.: -20 ~ 60 °C

LM270WQ1-SDE5 LCD Display About Us :

Experience: We have over 15 years of experience in the industry, successfully serving more than 10,000 clients across 100 countries.

Product Range: We offer a wide variety of LCD panels and touch screens, acting as an agent for several renowned LCD brands including Kyocera, KOE, and Nanya. Our inventory frequently includes products from Sharp, NEC, Hitachi, AUO, Kyocera, and KOE, which can often be shipped within one day.

Quality and Pricing: We pride ourselves on providing high-quality products at competitive prices. Our goal is to meet your demands with the best products and services available.

LM270WQ1-SDE5 LCD Display Product Details :

Condition:

Before shipment, each unit undergoes multiple tests to ensure perfect functionality. We guarantee 100% quality for our products.

Order Guidance:

If you are uncertain whether this is the correct item for your needs, or if you require a larger quantity, please contact us before placing your order.

Product Authenticity:

The LCD screens are original and are thoroughly tested before being sent to you.

LM270WQ1-SDE5 LCD Display Friendly Reminder :

- Installation Guide:

- An installation guide is not included with the product. We are not responsible for any damage caused by the installation of this accessory. Please ensure you are knowledgeable about the installation process before purchasing.

- Professional Installation Recommended:

- Proper installation requires special skills and techniques. We recommend seeking the assistance of a qualified technician to carry out the repair.

- Disassembly Knowledge:

- Make sure you understand the disassembly procedure before making a purchase.

- Return Policy:

- Returns are only accepted if the item is in its original condition. We strongly recommend testing the item before installation.

LM270WQ1-SDE5 LCD Panel Shipping and Package :

27.0 inch 2560*1440 LM270WQ1-SDE5 LCD Screen For Desktop Monitor 0

LM270WQ1-SDE5 LCD Panel FAQ :

Q: What happen if the lcd screen LM270WQ1-SDE5 I received can't work ?

A: Our LM270WQ1-SDE5 was tested ok before shipping .If happen that , pls check all the connect cable again,If still has problems ,we accept exchange or return panel.

Q: How to order LM270WQ1-SDE5 ?

A: We accept the T/T , Western union , paypal .

Q: what's the warranty of TFT-LCD LM270WQ1-SDE5 ?

A: 90days.

Q: Can you declared low price of my lcd panel LM270WQ1-SDE5 when shipping?

A: Yes , please inform us the value you want .
