DV215FHB-R01 21.5 inch 1920*1080 TFT CELL LCD Display Screen

Brand Name:	BOE
Model Number:	DV215FHB-R01
MOQ:	1 pcs
Price:	Negotiable
Packaging Details:	Original packaging/conventional packaging box
Payment Terms:	T/T, Western Union

Detail Information

Product Description

Detail Information

Place of Origin:

China

Model Name:

DV215FHB-R01

Diagonal Size:

21.5"

Panel Type:

A-Si TFT-LCD, CELL, FOB

Resolution:

1920(RGB)×1080, FHD 102PPI

Pixel Format:

RGB Vertical Stripe

Luminance:

476.64(W)×268.11(H) Mm

Used For:

Digital Signage

Touch Panel:

Without

Supply Ability:

100000 Unit/Units per Month

Product Description

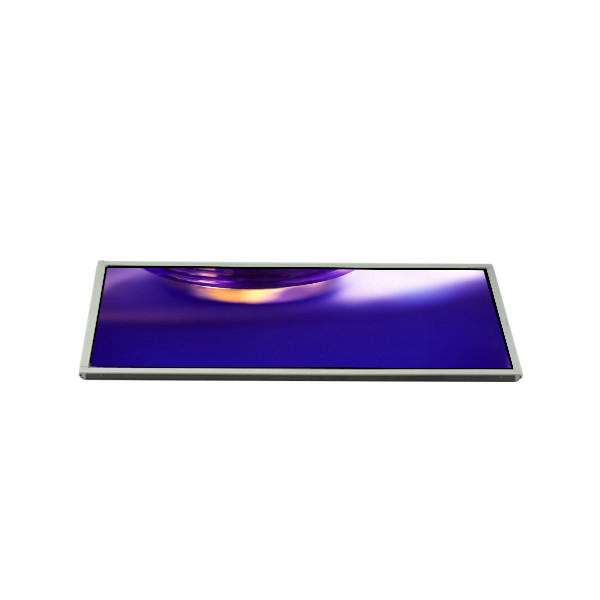

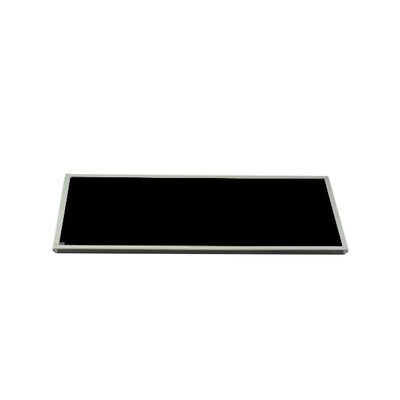

DV215FHB-R01 21.5 inch 1920*1080 TFT CELL LCD Display Screen

DV215FHB-R01 LCD Panel Product details :

Brand	BOE
Model P/N	DV215FHB-R01
Diagonal Size	21.5"
Panel Type	a-Si TFT-LCD, CELL, FOB
Resolution	1920(RGB)×1080, FHD 102PPI
Pixel Format	RG Vertical Stripe
Active Area	476.64(W)×268.11(H) mm
Outline Size	487.2(W)×281(H)×1.32(D) mm
Treatment	Antiglare (Haze 25%), Hard coating (3H)
Luminance	0 cd/m²
Contrast Ratio	1000 : 1 (Typ.) (TM)
Viewing Angle	89/89/89/89 (Typ.)(CR≥10)
Response	14 (Typ.)(G to G) ms
Good View at	Symmetry
Work Mode	ADS, Normally Black, Transmissive
Glass Thickness	0.50+0.50 mm
Transmissivity	3.35% (Typ.)(with Polarizer)
Color Depth	16.7M 74%NTSC
Backlight	No B/L
Mass	392g (Typ.)
Used for	Digital Signage
Refresh Rate	60Hz
Touchscreen	Without
Driver IC list	Built-in COF 6 source + 3 gate chips
Signal Type	LVDS (2 ch, 8-bit), 30 pinsConnector
Voltage Supply	5.0V (Typ.)
Max. Ratings	Storage Temp.: -30 ~ 80 °C Operating Temp.: -20 ~ 70 °C
DV215FHB-R01 21.5 inch 1920*1080 TFT CELL LCD Display Screen

DV215FHB-R01 LCD Display About Us :

Experience: We have over 15 years of experience in the industry, successfully serving more than 10,000 clients across 100 countries.

Product Range: We offer a wide variety of LCD panels and touch screens, acting as an agent for several renowned LCD brands including Kyocera, KOE, and Nanya. Our inventory frequently includes products from Sharp, NEC, Hitachi, AUO, Kyocera, and KOE, which can often be shipped within one day.

Quality and Pricing: We pride ourselves on providing high-quality products at competitive prices. Our goal is to meet your demands with the best products and services available.

DV215FHB-R01 LCD Display Product Details :

Condition:

Before shipment, each unit undergoes multiple tests to ensure perfect functionality. We guarantee 100% quality for our products.

Order Guidance:

If you are uncertain whether this is the correct item for your needs, or if you require a larger quantity, please contact us before placing your order.

Product Authenticity:

The LCD screens are original and are thoroughly tested before being sent to you.

DV215FHB-R01 LCD Display Friendly Reminder :

- Installation Guide:

- An installation guide is not included with the product. We are not responsible for any damage caused by the installation of this accessory. Please ensure you are knowledgeable about the installation process before purchasing.

- Professional Installation Recommended:

- Proper installation requires special skills and techniques. We recommend seeking the assistance of a qualified technician to carry out the repair.

- Disassembly Knowledge:

- Make sure you understand the disassembly procedure before making a purchase.

- Return Policy:

- Returns are only accepted if the item is in its original condition. We strongly recommend testing the item before installation.

DV215FHB-R01 LCD Panel Shipping and Package :

DV215FHB-R01 21.5 inch 1920*1080 TFT CELL LCD Display Screen 0

DV215FHB-R01 LCD Panel FAQ :

Q: Can you give me a discount if I need a large quantity of DV215FHB-R01 ?

A: Of course!If you make a large order, we will give you a discount.

Q: Can I pay my order of DV215FHB-R01 via credit card ?

A: Yes!you can use your credit card through your Paypal account.

Q: Can You declare my order of DV215FHB-R01 to a lower price in commercial invoice for customs ?

A: Yes , we can . pls inform us before shipping .

Q: How long will I receive my goods DV215FHB-R01 ?

A: Generally speaking ,It will take 3-8days to your hand by DHL/FEDEX/UPS/TNT.
