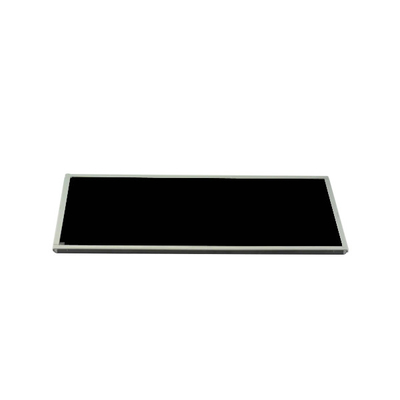

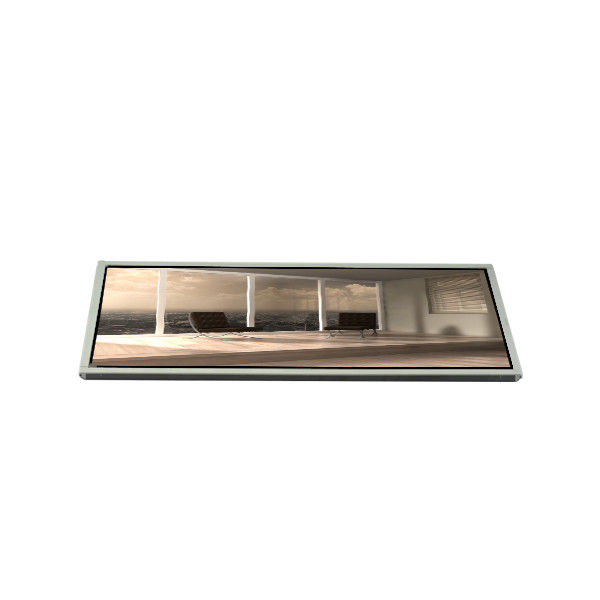

21.5 inch 1920*1080 DV215FHB-N30 TFT LCD Display Screen Module
Product Details:
| Place of Origin: | China |
| Brand Name: | BOE |
| Model Number: | DV215FHB-N30 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Original packaging/conventional packaging box |
| Delivery Time: | 7 Days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 100000 Unit/Units per Month |
|
Detail Information |
|||
| Model Name: | DV215FHB-N30 | Diagonal Size: | 21.5" |
|---|---|---|---|
| Panel Type: | A-Si TFT-LCD, CELL, FOB | Resolution: | 1920(RGB)×1080, FHD 102PPI |
| Pixel Format: | RGB Vertical Stripe | Luminance: | 476.064(W)×267.786(H) Mm |
| Used For: | Digital Signage | Touch Panel: | Without |
Product Description
21.5 inch 1920*1080 DV215FHB-N30 TFT LCD Display Screen Module
DV215FHB-N30 LCD Panel Product details :
| Brand | BOE |
| Model P/N | DV215FHB-N30 |
| Diagonal Size | 21.5" |
| Panel Type | a-Si TFT-LCD, CELL, FOB |
| Resolution | 1920(RGB)×1080, FHD 102PPI |
| Pixel Format | RGB Vertical Stripe |
| Active Area | 476.064(W)×267.786(H) mm |
| Outline(mm) | 483.646(W)×278.676(H)×1.32(D) |
| Luminance | 0 (cd/m²) |
| Viewing Angle | 89/89/89/89 (Typ.)(CR≥10) |
| Good View at | Symmetry |
| Glass Thickness | 0.50+0.50 mm |
| Color Depth | 16.7M 73% NTSC |
| Mass | 400g (Typ.) |
| Refresh Rate | 60Hz |
| Treatment | Antiglare, Hard coating (3H) |
| Contrast Ratio | 1000 : 1 (Typ.) (TM) |
| Work Mode | ADS, Normally Black, Transmissive |
| Response | 14 (Typ.)(G to G) ms |
| Transmissivity | 5.6% (Typ.)(with Polarizer) |
| Backlight | No B/L |
| Used for | Digital Signage |
| Touchscreen | Without |
| Driver IC list | Built-inCOF6 source chips |
| Signal Type | LVDS (2 ch, 8-bit), 30 pins Connector |
| Voltage Supply | 5.0V (Typ.) |
| Max. Ratings | Storage Temp.: -20 ~ 60 °C Operating Temp.: 0 ~ 50 °C |
| 21.5 inch 1920*1080 DV215FHB-N30 TFT LCD Display Screen Module | |
