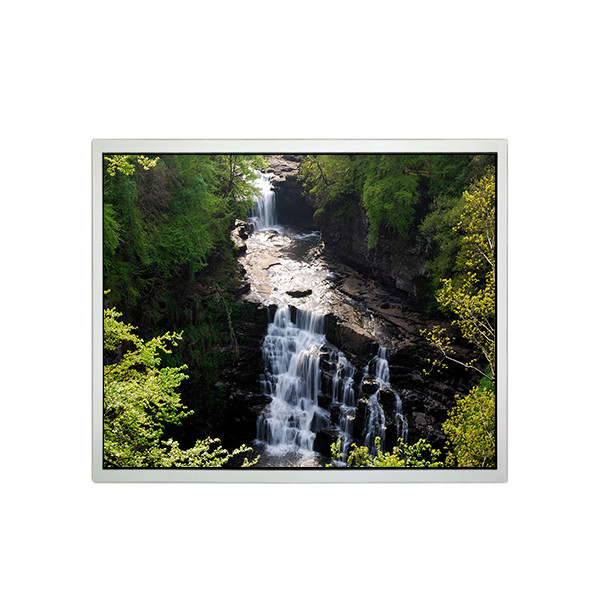

PV190E0M-N10 19.0 Inch 1280*1024 LCD Panel Screen Display for Industrial
Product Details:
| Place of Origin: | China |
| Brand Name: | BOE |
| Model Number: | PV190E0M-N10 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Original packaging/conventional packaging box |
| Delivery Time: | 7 Days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 100000 Unit/Units per Month |
|
Detail Information |
|||
| Model Name: | PV190E0M-N10 | Diagonal Size: | 19.0" |
|---|---|---|---|
| Panel Type: | A-Si TFT-LCD, LCM | Resolution: | 1280(RGB)×1024, SXGA 86PPI |
| Pixel Format: | RGB Vertical Stripe | Luminance: | 374.784(W)×299.827(H) Mm |
| Used For: | Industrial、Outdoor High Brightness | Touch Panel: | Without |
Product Description
PV190E0M-N10 19.0 Inch 1280*1024 LCD Panel Screen Display for Industrial
DV190E0M-N10 LCD Panel Product details :
| Brand | BOE |
| Model P/N | PV190E0M-N10 |
| Diagonal Size | 19.0" |
| Panel Type | a-Si TFT-LCD, LCM |
| Resolution | 1280(RGB)×1024, SXGA 86PPI |
| Pixel Format | RGB Vertical Stripe |
| Active Area | 374.784(W)×299.827(H) mm |
| Bezel Opening | 379(W)×303(H) mm |
| Outline(mm) | 396 × 324× 12.13 (H×V×D) |
| Treatment | Antiglare (Haze 25%), Hard coating (3H) |
| Luminance | 400 cd/m² (Typ.) |
| Contrast Ratio | 1000 : 1 (Typ.) (TM) |
| Viewing Angle | 89/89/89/89 (Typ.)(CR≥10) |
| Response | 14 (Typ.)(G to G) ms |
| Good View at | Symmetry |
| Work Mode | ADS, Normally Black, Transmissive |
| Color Depth | 16.7M 73%NTSC |
| Backlight | WLED, 50K hours, No Driver |
| Mass | 1.95Kgs (Typ.) |
| Used for | Industrial |
| Refresh Rate | 60Hz |
| Touchscreen | Without |
| Signal Type | LVDS (2 ch, 8-bit), 30 pins Connector |
| Voltage Supply | 5.0V (Typ.) |
| Max. Ratings | Storage Temp.: -20 ~ 60 °C Operating Temp.: -10 ~ 55 °C |
| PV190E0M-N10 19.0 Inch 1280*1024 LCD Panel Screen Display for Industrial | |
