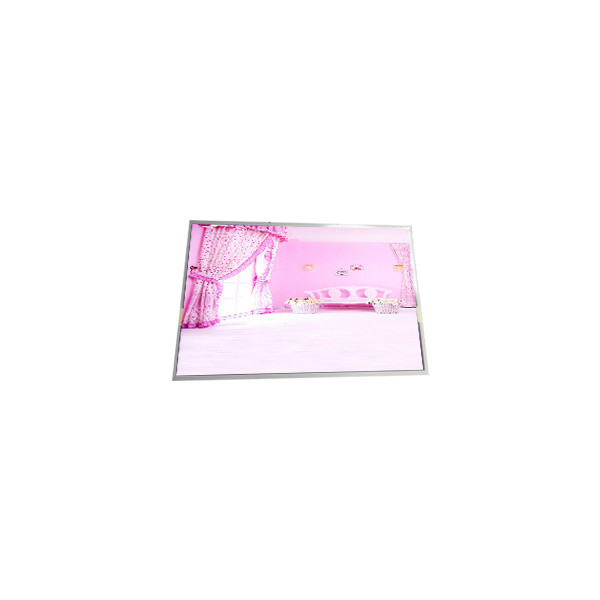

TX31D203VM0EAC 12.3 inch 1920*720 LCD Display Module
Product Details:
Place of Origin: | China |
Brand Name: | HITACHI |
Model Number: | TX31D203VM0EAC |
Payment & Shipping Terms:
Minimum Order Quantity: | 1 pcs |
---|---|
Price: | Negotiable |
Packaging Details: | Original packaging/conventional packaging box |
Delivery Time: | 7 Days |
Payment Terms: | T/T, Western Union |
Supply Ability: | 100000 Unit/Units per Month |
Detail Information |
|||
Model Name: | TX31D203VM0EAC | Diagonal Size: | 12.3" |
---|---|---|---|
Panel Type: | A-Si TFT-LCD, LCM | Resolution: | 1920(RGB)×720 167PPI |
Pixel Format: | RGB Vertical Stripe | Active Area: | 292.032(W)×109.512(H) Mm |
Operating Mode: | IPS, Normally Black, Transmissive | Backlight: | WLED [4 Strings] , 50K Hours , W/O Driver |
Good View At: | Symmetry | Designed For: | Industrial /Rugged Industry /Outdoor High Brightness /Automotive Display |
Product Description
TX31D203VM0EAC 12.3 inch 1920*720 LCD Display Module
TX31D203VM0EAC LCD Panel Product details :
Brand | HITACHI |
Model P/N | TX31D203VM0EAC |
Diagonal Size | 12.3" |
Panel Type | a-Si TFT-LCD, LCM |
Resolution | 1920(RGB)×720 167PPI |
Pixel Format | RGB Vertical Stripe |
Active Area | 292.032(W)×109.512(H) mm |
Bezel Opening | 295.2(W)×112.6(H) mm |
Outline Size | 308.5(H)×130.2(V) ×12.84(D) mm |
Treatment | - |
Brightness | 1500 cd/m² (Typ.) |
Contrast Ratio | 1300:1 (Typ.) (TM) |
Viewing Angle | 85/85/85/85 (Typ.)(CR≥10) |
Display Mode | IPS, Normally Black, Transmissive |
Best View on | Symmetry |
Response Time | 25 (Max.)(Tr+Td) |
Display Colors | 16.7M 75% NTSC |
Lamp Type | WLED [4 strings] , 50K hours , W/O Driver |
Frequency | 60Hz |
Touch Screen | Without |
Panel Weight | 580g (Typ.) |
Application | Industrial /Rugged Industry /Outdoor High Brightness /Automotive Display |
Signal Interface | LVDS (2 ch, 8-bit) , 20 pins Connector |
Input Voltage | 3.3V (Typ.) |
Environment | Operating Temperature: -40 ~ 85 °C ; Storage Temperature: -40 ~ 90 °C ; Vibration Level: 5.0G (49.0 m/s²) |
TX31D203VM0EAC LCD Panel Shipping and Package :
TX31D203VM0EAC LCD Screen Shipping Information :
Tracking Number Update:
If your tracking number shows no logistics information, it could be due to delays in updates from logistics companies handling numerous parcels. Please reach out to us immediately instead of opening a dispute. We are committed to resolving any issues promptly and ensuring your satisfaction.
Time of Shipment:
We aim to ship all products within 1-5 weekdays. Our packing and shipping process is tailored to customer orders and involves thorough quality checks before dispatch. Therefore, a brief handling period is required to ensure product quality.
Delivery Time:
Unforeseen circumstances like hurricanes or rainstorms may affect logistics, causing delays. We assure you that we are honest sellers who prioritize your satisfaction. Kindly allow the logistics company adequate processing time to deliver your package to you.
Local Post Office Handling:
If your logistics information indicates that the package has reached the local post office but you haven't been contacted, please proactively reach out to your local post office to arrange for package collection. Failure to do so may result in the parcel being returned, and any consequences will be the buyer's responsibility.
Protection Time Extension:
Should the product protection period expire after we've shipped your item, please extend the protection period by contacting us promptly.
Import Duties:
Please note that import duties, taxes, and charges are not included in the item price or shipping charges. These additional costs are the responsibility of the buyer. We advise buyers to be aware of their country's import regulations and associated fees before making a purchase.
TX31D203VM0EAC LCD Screen Quality & Warranty :
Quality Assurance: We ensure the quality of all LCD (touch screen) products through comprehensive testing using specialized equipment. Our commitment is to deliver only products of the highest quality. We understand that any issues with the product become our responsibility, and we strive to prevent such occurrences.
Product Dissatisfaction: In the event that you are dissatisfied with our products, we kindly request that you notify us within 3 days of receiving your parcel. To facilitate the resolution process, please provide real pictures and other evidence showcasing the issue. Upon verification, we will offer either a replacement or refund if the products do not meet the described specifications.
Return Policy: If you have possessed the item for more than 7 days, it is deemed used or second-hand. Under these circumstances, we can only provide a replacement service after receiving the returned item.
TX31D203VM0EAC LCD Panel FAQ :
Q: How long will I receive my goods TX31D203VM0EAC ?
A: Generally speaking ,It will take 3-8days to your hand by DHL/FEDEX/UPS/TNT.
Q: Can you give me a discount if I need a large quantity of TX31D203VM0EAC ?
A: Of course!If you make a large order, we will give you a discount.
Q: Can You declare my order of TX31D203VM0EAC to a lower price in commercial invoice for customs ?
A: Yes , we can . pls inform us before shipping .
Q: How long is the warranty ?
A: We offer 90days warranty .
TX31D203VM0EAC LCD Screen Service Hours :
For any inquiries or issues, please feel free to contact us. We are dedicated to providing sincere service to our customers. Our service hours follow Beijing time:
Weekdays:
Morning: 8:00 AM to 12:00 PM
Afternoon: 1:30 PM to 6:10 PM
Additionally, we have customer service available 24 hours to assist you with problem-solving. Please don't hesitate to reach out to us whenever you need assistance.
