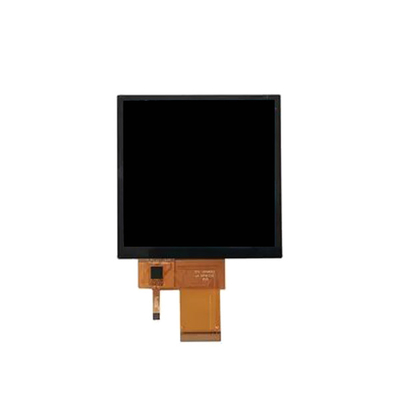

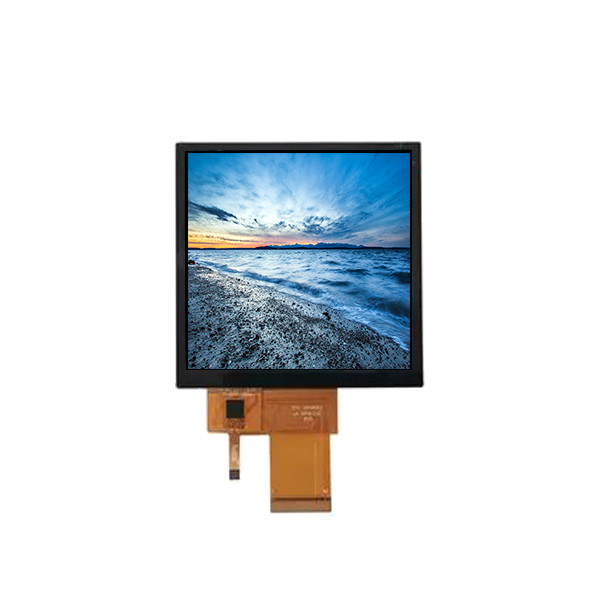

4.2inch 540*540 DV042FBM-T80 LCD Touch Screen Panel
Product Details:
| Place of Origin: | China |
| Brand Name: | BOE |
| Model Number: | DV042FBM-T80 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Original packaging/conventional packaging box |
| Delivery Time: | 7 Days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 100000 Unit/Units per Month |
|
Detail Information |
|||
| Model Name: | DV042FBM-T80 | Diagonal Size: | 4.2" |
|---|---|---|---|
| Panel Type: | A-Si TFT-LCD, LCM | Resolution: | 540(RGB)×540 183PPI |
| Pixel Format: | RGB Vertical Stripe | Active Area: | 74.925(W)×74.925(H) Mm |
| Used For: | Industrial | Touch Panel: | On-Cell Touch, I²C |
Product Description
4.2inch 540*540 DV042FBM-T80 LCD Touch Screen Panel
DV042FBM-T80 LCD Panel Product details :
| Brand | BOE |
| Model P/N | DV042FBM-T80 |
| Diagonal Size | 4.2" |
| Panel Type | a-Si TFT-LCD, LCM |
| Resolution | 540(RGB)×540 183PPI |
| Pixel Format | RGB Vertical Stripe |
| Active Area | 74.925(W)×74.925(H) mm |
| Bezel Opening | 75.53(W)×75.43(H) mm |
| Outline(mm) | 78.93(W)×83(H)×3.02(D) |
| Luminance | 250 (Typ.)(cd/m²) |
| Viewing Angle | 85/85/85/85 (Typ.)(CR≥10) |
| Good View at | Symmetry |
| Color Depth | 16.7M 55% NTSC |
| Mass | TBD |
| Refresh Rate | 60Hz |
| Treatment | - |
| Contrast Ratio | 1200 : 1 (Typ.) (TM) |
| Work Mode | ADS, Normally Black, Transmissive |
| Response | 40 (Max.)(Tr+Td) ms |
| Backlight | 8S2P WLED, With LED Driver |
| Used for | Industrial |
| Touchscreen | On-Cell Touch, I²C |
| Signal Type | Parallel RGB (1 ch, 8-bit) + SPI, 42 pins FPC |
| Voltage Supply | 1.8/2.8V (IOVCC/VCI) |
| Max. Ratings | Storage Temp.: -30 ~ 80 °C Operating Temp.: -20 ~ 70 °C |
| 4.2inch 540*540 DV042FBM-T80 LCD Touch Screen Panel | |
DV042FBM-T80 LCD Display About Us :
Experience: We have over 15 years of experience in the industry, successfully serving more than 10,000 clients across 100 countries.
Product Range: We offer a wide variety of LCD panels and touch screens, acting as an agent for several renowned LCD brands including Kyocera, KOE, and Nanya. Our inventory frequently includes products from Sharp, NEC, Hitachi, AUO, Kyocera, and KOE, which can often be shipped within one day.
Quality and Pricing: We pride ourselves on providing high-quality products at competitive prices. Our goal is to meet your demands with the best products and services available.
DV042FBM-T80 LCD Display Product Details :
Condition:
Before shipment, each unit undergoes multiple tests to ensure perfect functionality. We guarantee 100% quality for our products.
Order Guidance:
If you are uncertain whether this is the correct item for your needs, or if you require a larger quantity, please contact us before placing your order.
Product Authenticity:
The LCD screens are original and are thoroughly tested before being sent to you.
DV042FBM-T80 LCD Display Friendly Reminder :
- Installation Guide:
- An installation guide is not included with the product. We are not responsible for any damage caused by the installation of this accessory. Please ensure you are knowledgeable about the installation process before purchasing.
- Professional Installation Recommended:
- Proper installation requires special skills and techniques. We recommend seeking the assistance of a qualified technician to carry out the repair.
- Disassembly Knowledge:
- Make sure you understand the disassembly procedure before making a purchase.
- Return Policy:
- Returns are only accepted if the item is in its original condition. We strongly recommend testing the item before installation.
DV042FBM-T80 LCD Panel Shipping and Package :
DV042FBM-T80 LCD Panel FAQ :
Q: How long will I receive my goods DV042FBM-T80 ?
A: Generally speaking ,It will take 3-8days to your hand by DHL/FEDEX/UPS/TNT.
Q: How long is the warranty ?
A: We offer 90days warranty .
Q:Can You declare my order of DV042FBM-T80 to a lower price in commercial invoice for customs ?
A: Yes , we can . pls inform us before shipping .
Q:Can I pay my order of DV042FBM-T80 via credit card ?
A:Yes!you can use your credit card through your Paypal account.
