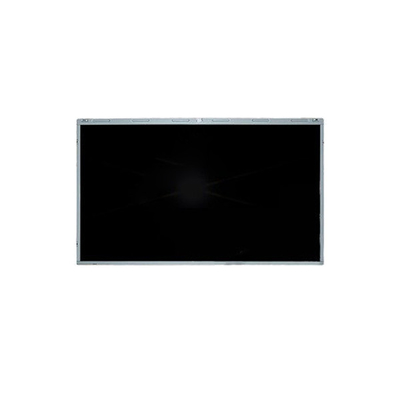

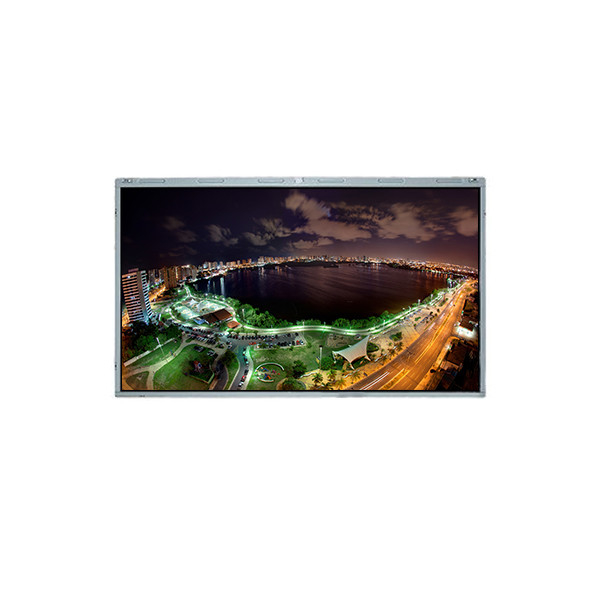

24.5 inch 1920*1080 DF245FHB-NF0-T940 LCD Display Screen
Product Details:
| Place of Origin: | China |
| Brand Name: | BOE |
| Model Number: | DF245FHB-NF0-T940 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Original packaging/conventional packaging box |
| Delivery Time: | 7 Days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 100000 Unit/Units per Month |
|
Detail Information |
|||
| Model Name: | DF245FHB-NF0-T940 | Diagonal Size: | 24.5" |
|---|---|---|---|
| Panel Type: | A-Si TFT-LCD, CELL, FOB | Resolution: | 1920(RGB)×1080, FHD 89PPI |
| Pixel Format: | RGB Vertical Stripe | Active Area: | 543.744(W)×302.616(H) Mm |
| Used For: | Digital Signage | Touch Panel: | Without |
Product Description
24.5 inch 1920*1080 DF245FHB-NF0-T940 LCD Display Screen
DF245FHB-NF0-T940 LCD Panel Product details :
| Brand | BOE |
| Model P/N | DF245FHB-NF0-T940 |
| Diagonal Size | 24.5" |
| Panel Type | a-Si TFT-LCD, CELL, FOB |
| Resolution | 1920(RGB)×1080, FHD 89PPI |
| Pixel Format | RGB Vertical Stripe |
| Active Area | 543.744(W)×302.616(H) mm |
| Outline Size | 551.792(W)×314.837(H)×1.31(D) mm |
| Brightness | 0 cd/m² |
| Viewing Angle | 89/89/89/89 (Typ.)(CR≥10) |
| Best View on | Symmetry |
| Display Colors | 16.7M 98%sRGB |
| Frequency | 165Hz |
| Weight | 538g (Typ.) |
| Surface | Antiglare (Haze 25%), Hard coating (3H) |
| Contrast Ratio | 4000:1 (Typ.) (TM) |
| Display Mode | UV2A, Normally Black, Transmissive |
| Response Time | 6 (Typ.)(G to G) |
| Transmissivity | 5.0% (Typ.) |
| Lamp Type | No B/L |
| Touch Screen | Without |
| Application | Digital Signage |
| Driver IC | COFBuilt-in 6 source chips |
| Signal Interface | LVDS (4 ch, 8-bit), 61 pinsConnector |
| Input Voltage | 12.0V (Typ.) |
| Environment | Operating Temp.: 0 ~ 55 °C ;Storage Temp.: -20 ~ 60 °C |
| 24.5 inch 1920*1080 DF245FHB-NF0-T940 LCD Display Screen | |
DF245FHB-NF0-T940 LCD Display About Us :
Experience: We have over 15 years of experience in the industry, successfully serving more than 10,000 clients across 100 countries.
Product Range: We offer a wide variety of LCD panels and touch screens, acting as an agent for several renowned LCD brands including Kyocera, KOE, and Nanya. Our inventory frequently includes products from Sharp, NEC, Hitachi, AUO, Kyocera, and KOE, which can often be shipped within one day.
Quality and Pricing: We pride ourselves on providing high-quality products at competitive prices. Our goal is to meet your demands with the best products and services available.
DF245FHB-NF0-T940 LCD Display Product Details :
Condition:
Before shipment, each unit undergoes multiple tests to ensure perfect functionality. We guarantee 100% quality for our products.
Order Guidance:
If you are uncertain whether this is the correct item for your needs, or if you require a larger quantity, please contact us before placing your order.
Product Authenticity:
The LCD screens are original and are thoroughly tested before being sent to you.
DF245FHB-NF0-T940 LCD Display Friendly Reminder :
- Installation Guide:
- An installation guide is not included with the product. We are not responsible for any damage caused by the installation of this accessory. Please ensure you are knowledgeable about the installation process before purchasing.
- Professional Installation Recommended:
- Proper installation requires special skills and techniques. We recommend seeking the assistance of a qualified technician to carry out the repair.
- Disassembly Knowledge:
- Make sure you understand the disassembly procedure before making a purchase.
- Return Policy:
- Returns are only accepted if the item is in its original condition. We strongly recommend testing the item before installation.
DF245FHB-NF0-T940 LCD Panel Shipping and Package :
DF245FHB-NF0-T940 LCD Panel FAQ :
Q: How can I trace my order of DF245FHB-NF0-T940?
A: we will give you tracking number then you can trace your order from website.
Q: If I place order now,when will you ship the goods of DF245FHB-NF0-T940 ?
A: The order will be shipped within 2-3 working days after received your payment.
Q: Do you accept sample orders of DF245FHB-NF0-T940?
A: Of course!sample order is welcome !
Q: Can you give me a discount if I need a large quantity of DF245FHB-NF0-T940?
A: Of course!If you make a large order, we will give you a discount.
Want to Know more details about this product
