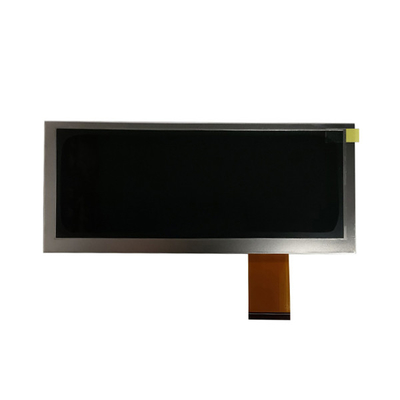

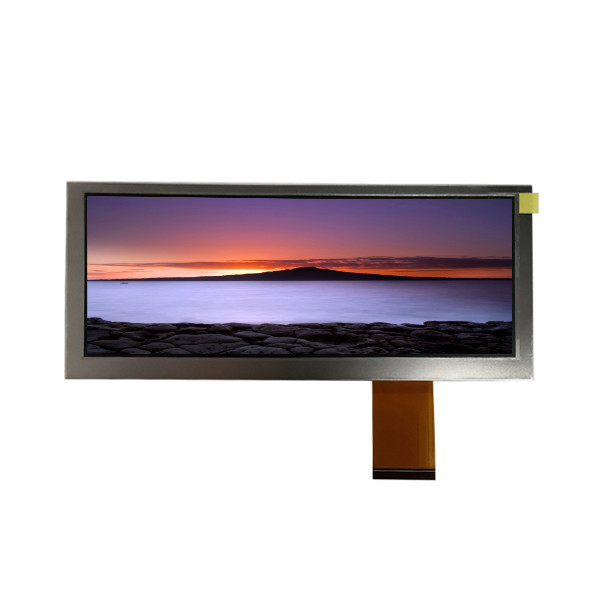

Original COG-VLSZT111-01 10.1 inch 1920*1080 LCD Screen Module
Product Details:
| Place of Origin: | China |
| Brand Name: | BOE |
| Model Number: | COG-VLSZT111-01 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Original packaging/conventional packaging box |
| Delivery Time: | 7 Days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 100000 Unit/Units per Month |
|
Detail Information |
|||
| Model Name: | COG-VLSZT111-01 | Diagonal Size: | 10.1" |
|---|---|---|---|
| Panel Type: | A-Si TFT-LCD, CELL, FOB | Resolution: | 1920(RGB)×1080, FHD 218PPI |
| Pixel Format: | RGB Vertical Stripe | Active Area: | 223.488(W)×125.712(H) Mm |
| Used For: | Automotive Display | Frequency: | 60Hz |
Product Description
Original COG-VLSZT111-01 10.1 inch 1920*1080 LCD Screen Module
COG-VLSZT111-01 LCD Panel Product details :
| Brand | BOE |
| Model P/N | COG-VLSZT111-01 |
| Diagonal Size | 10.1" |
| Panel Type | a-Si TFT-LCD, CELL, FOB |
| Resolution | 1920(RGB)×1080, FHD 218PPI |
| Pixel Format | RGB Vertical Stripe |
| Active Area | 223.488(W)×125.712(H) mm |
| Bezel Opening | - |
| Outline Size | 233.15(W)×138.05(H)×1.25(D) mm |
| Treatment | Hard coating (3H), Reflection 5.5% (Max.) |
| Luminance | 0 cd/m² |
| Contrast Ratio | 1000 : 1 (Typ.) (TM) |
| Viewing Angle | 85/85/85/85 (Typ.)(CR≥10) |
| Response | 30 (Max.)(Tr+Td) ms |
| Good View at | Symmetry |
| Work Mode | ADS, Normally Black, Transmissive |
| Glass Thickness | 0.50+0.50 mm |
| Color Depth | 16.7M 69%NTSC |
| Backlight | No B/L, No Driver |
| Used for | Automotive Display |
| Refresh Rate | 60Hz |
| Touchscreen | Without |
| Driver IC list | Built-in COG 3 source + 2 gate chips |
| Signal Type | LVDS (2 ch, 8-bit), 60 pinsConnector |
| Voltage Supply | 3.3V (Typ.) |
| Max. Ratings | Storage Temp.: -40 ~ 90 °C Operating Temp.: -30 ~ 85 °C |
| Original COG-VLSZT111-01 10.1 inch 1920*1080 LCD Screen Module | |
