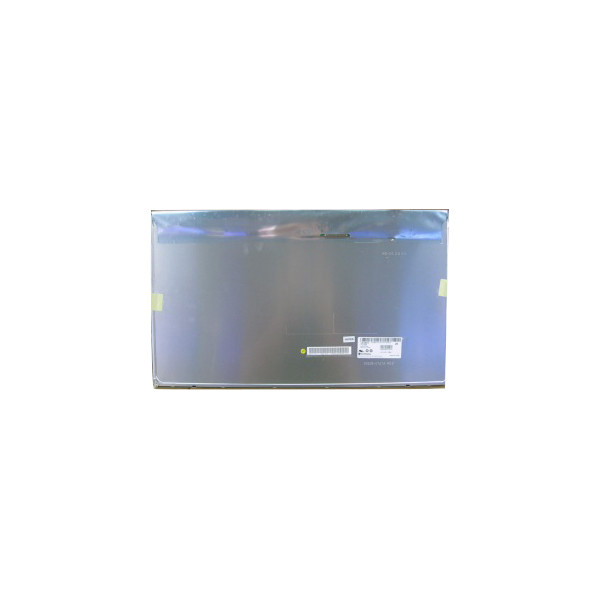

LM230WF5-TLD5 23.0 inch 1920*1080 LCD Screen display
Product Details:
| Place of Origin: | China |
| Brand Name: | LG Display |
| Model Number: | LM230WF5-TLD5 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Original packaging/conventional packaging box |
| Delivery Time: | 7 Days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 100000 Unit/Units per Month |
|
Detail Information |
|||
| Model Name: | LM230WF5-TLD5 | Diagonal Size: | 23.0" |
|---|---|---|---|
| Panel Type: | A-Si TFT-LCD, LCM | Resolution: | 1920(RGB)×1080, FHD 95PPI |
| Pixel Format: | RGB Vertical Stripe | Active Area: | 509.184(W)×286.416(H) Mm |
| Support Color: | 16.7M 72%NTSC | Display Mode: | TN, Normally White, Transmissive |
| Best View On: | 6 O'clock | Designed For: | Desktop Monitor |
Product Description
LM230WF5-TLD5 23.0 inch 1920*1080 LCD Screen display
LM230WF5-TLD5 LCD Panel Product details :
| Brand | LG Display |
| Model P/N | LM230WF5-TLD5 |
| Diagonal Size | 23.0" |
| Panel Type | a-Si TFT-LCD, LCM |
| Resolution | 1920(RGB)×1080, FHD 95PPI |
| Pixel Format | RGB Vertical Stripe |
| Active Area | 509.184(W)×286.416(H) mm |
| Bezel Opening | 513.8(W)×291.0(H) mm |
| Outline Dim. | 533.2(H)×312(V)×10.7(D) mm |
| Treatment | Antiglare, Hard coating (3H) |
| Luminance | 250 cd/m² (Typ.) |
| Contrast Ratio | 1000:1 (Typ.) (TM) |
| View Direction | 6 o'clock |
| Response Time | 1.3/3.7 (Typ.)(Tr/Td) |
| Viewing Angle | 85/85/75/85 (Typ.)(CR≥10) |
| Operating Mode | TN, Normally White, Transmissive |
| Support Color | 16.7M 72%NTSC |
| Light Source | WLED [2 strings], 30K hours, W/O Driver |
| Weight | 1.62/1.70Kgs (Typ./Max.) |
| Designed For | Desktop Monitor |
| Frame Rate | 60Hz |
| Touch Panel | Without |
| Interface Type | LVDS (2 ch, 8-bit), 30 pinsConnector |
| Power Supply | 5.0V (Typ.) |
| Environment | Operating Temperature: 0 ~ 50 °C ; Storage Temperature: -20 ~ 60 °C |
LM230WF5-TLD5 LCD Screen Report Item :
Product Overview:
We specialize in the sale of industrial LCD panels and touch screens, offering a wide range of products and technical support. Our inventory includes LCD screens and touch screens from 5.7 inches to 42 inches, suitable for numerous industrial purposes.
Product Information and Services:
Comprehensive Product Information: We provide detailed product information for all types of LCD screens and touch screens, including specifications, features, and compatibility.
Technical Consultation: Our team of experts is available to offer technical consultations, helping you select the right screen for your specific needs and ensuring optimal performance.
Stock and Availability:
Our extensive stock ranges from 5.7 inches to 42 inches, catering to various industrial requirements. Whether you need a display for vehicles, medical equipment, injection molding machines, or other industrial equipment, we have the right solution for you.
Why Choose Us:
Extensive Inventory: A wide range of sizes and specifications to meet diverse industrial needs.
Expert Support: Professional technical consultation to guide you through the selection process.
Quality Assurance: High-quality products designed for durability and reliability in industrial applications.
LM230WF5-TLD5 LCD Panel Shipping and Package :
LM230WF5-TLD5 LCD Screen Shipment Information :
Worldwide Shipping:
We provide global shipping to ensure our products reach customers no matter where they are located.
Standard Shipping by DHL:
Delivery Time: Your order will be shipped via DHL and will typically arrive within 3-7 days.
Customs Fees: Please note that depending on your country's customs policies, additional duty fees may apply.
Expedited Service: DHL offers fast and reliable delivery to most destinations worldwide.
Economical Shipping by HK Post:
Lower Fees: For customers looking to minimize shipping costs and avoid customs fees, we offer the option to ship via Hong Kong Post.
Delivery Time: Shipments via HK Post usually take 15-20 days to arrive.
Customs Handling: Inform us if you prefer this option, and we will assist you in arranging it.
Customs and Import Fees:
Responsibility: Please be aware that we are not responsible for any import fees, remote area charges, taxes, or other customs-related fees that may apply to your shipment.
Policy Awareness: It is the buyer's responsibility to understand their country's customs policies and potential fees before placing an order.
LM230WF5-TLD5 LCD Screen Refund & Return Policy :
Defective Items:
If you receive a defective item, please notify us within 3 days of receiving your order. We will work with you to resolve the issue promptly.
Return Conditions:
Items should be returned in their original packaging whenever possible to ensure they are protected during transit and to facilitate the return process.
Shipping Considerations:
China Post Air Mail: Please note that due to regional weather conditions and other factors, delivery times for China Post Air Mail can range from 10 to 50 days. We appreciate your patience if you choose this shipping method.
LM230WF5-TLD5 LCD Panel FAQ :
Q: What happen if the lcd panel LM230WF5-TLD5 I received can't work ?
A: All the goods will be tesed before shipping.If happen that , pls check all the connect cable again,If still has problems ,we accept exchange or return panel.
Q: Can you declared low value of my order about LM230WF5-TLD5 ?
A: Yes , we can . But you need to leave message to us before shipping.
Q: When will my order LM230WF5-TLD5 ?
A: The order are shipped within 1-2 working days after received the payment.
Q: How to order LM230WF5-TLD5 ?
A: We accept T/T , PAYPAL , WESTERN UNION .
Want to Know more details about this product
