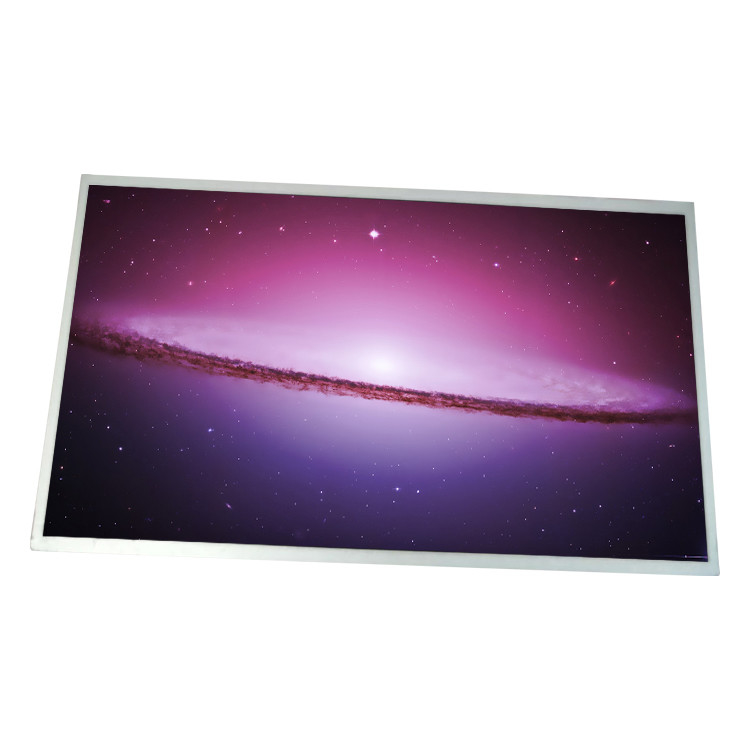

14.0 inch 1366*768 HSD140PHW3-A00 Laptop LCD module

Brand Name:	HannStar
Model Number:	HSD140PHW3-A00
MOQ:	1 pcs
Price:	Negotiable
Packaging Details:	Original packaging/conventional packaging box
Payment Terms:	T/T, Western Union

Detail Information

Product Description

Detail Information

Place of Origin:

China

Model Name:

HSD140PHW3-A00

Diagonal Size:

14.0"

Panel Type:

A-Si TFT-LCD, LCM

Resolution:

1366(RGB)×768, WXGA 112PPI

Active Area:

309.399(W)×173.952(H) Mm

Outline Dim.:

323.5(W)×192(H) Mm

Brightness:

220 Cd/m² (Typ.)

Contrast Ratio:

500:1 (Typ.) (TM)

Viewing Angle:

45/45/15/35 (Typ.)(CR≥10)

Application:

Laptop

Supply Ability:

100000 Unit/Units per Month

Product Description

14.0 inch 1366*768 HSD140PHW3-A00 Laptop LCD module

HSD140PHW3-A00 LCD Panel Product details :

Brand	HannStar
Model P/N	HSD140PHW3-A00
Diagonal Size	14.0"
Panel Type	a-Si TFT-LCD, LCM
Resolution	1366(RGB)×768, WXGA 112PPI
Pixel Format	RGB Vertical Stripe
Active Area	309.399(W)×173.952(H) mm
Bezel Opening	-
Outline Dim.	323.5(H)×192(V) mm
Treatment	-
Luminance	220 cd/m² (Typ.)
Contrast Ratio	500:1 (Typ.) (TM)
View Direction	6 o'clock
Response Time	-
Viewing Angle	45/45/15/35 (Typ.)(CR≥10)
Operating Mode	TN, Normally White, Transmissive
Support Color	262K
Light Source	WLED
Form Style	-
Designed For	Laptop
Frame Rate	-
Touch Panel	Without
Interface Type	LVDS (1 ch, 6-bit)Connector
Environment	Operating Temperature: 0 ~ 50 °C ; Storage Temperature: -20 ~ 60 °C
14.0 inch 1366*768 HSD140PHW3-A00 Laptop LCD module

HSD140PHW3-A00 lcd screen About item and shipping price:

Pricing Information

Accuracy of Item Prices:

For products that are rarely sold or have never been sold before, the listed item price may not be accurate. Prices can fluctuate due to various factors such as market demand, availability, and manufacturing costs.

To ensure you receive the correct and most up-to-date quote for the HSD140PHW3-A00 LCD screen, please contact us directly. We will provide you with an accurate price tailored to your specific needs and current market conditions.

Shipping Prices

Shipping to Remote Locations:

For remote countries or islands, shipping prices listed may be inaccurate. This can occur due to the higher costs associated with delivering to less accessible locations, or due to other logistical challenges.

Whether the price appears too high or too low, it is crucial to confirm the correct shipping cost. Please contact us to receive an accurate shipping quote based on your exact location. This will help ensure there are no surprises or delays in the delivery of your order.

HSD140PHW3-A00 LCD Panel Shipping and Package :

14.0 inch 1366*768 HSD140PHW3-A00 Laptop LCD module 0

HSD140PHW3-A00 lcd screen International Orders :

HSD140PHW3-A00 LCD Screen Shipping

Customs and Import Responsibilities

Customs Fees and Import Taxes:

Buyers are responsible for any customs fees, duties, and import taxes that may apply to their order. These charges are determined by the customs authorities in the destination country and are beyond our control.

It is advisable to check with your local customs office for information on potential charges before placing your order to avoid unexpected costs.

Delivery Time and Customs Processing

Potential Delays in Delivery:

International orders can sometimes take longer to arrive than initially expected. Delays are often caused by customs processing in the destination country, which can add several weeks to the delivery time.

While we do our best to ensure timely dispatch, please be prepared for potential delays and track your order using the provided Air Waybill (AWB) number.

HSD140PHW3-A00 lcd screen About the goods :

Receiving Your Item

Confirming Receipt:

Upon receiving your HSD140PHW3-A00 LCD screen, please confirm receipt of the item promptly.

If the item appears to be damaged in any way, contact us immediately. To expedite the process, take clear photos of the damage and send them to us. This will allow us to assess the situation and provide you with the best possible solution, whether it be a replacement, repair, or refund.

Delivery and Tracking

Delivery Guarantee:

We strive to ensure timely delivery of your order. While we guarantee that your item will be dispatched promptly, please understand that we do not have control over the exact delivery time once it is handed over to the courier service.

Our sales staff is dedicated to processing and dispatching your order efficiently. On the next working day after your purchase, we will provide you with the Air Waybill (AWB) number. This AWB number will allow you to track the status of your delivery.

You can track the AWB on the courier company's website that we will provide you with. If you have any issues or need further assistance, you can also contact the local branch of your courier company for updates on your delivery.

HSD140PHW3-A00 LCD Panel FAQ :

Q: Can I pay my goods HSD140PHW3-A00 by credit card ?

A: Yes!you can use your credit card through your Paypal account.

Q: How can I trace my order of HSD140PHW3-A00 ?

A: we will give you tracking number then you can trace your order form website.

Q: Can You declare my order of lcd HannStar HSD140PHW3-A00 at a very low value ?

A: Yes , we can . pls inform us before shipping .

Q: I do not find the LCD I am looking for in the website, what should I do ?

A: You can give us some pictures,we have a lot of LCD out of shelves.
