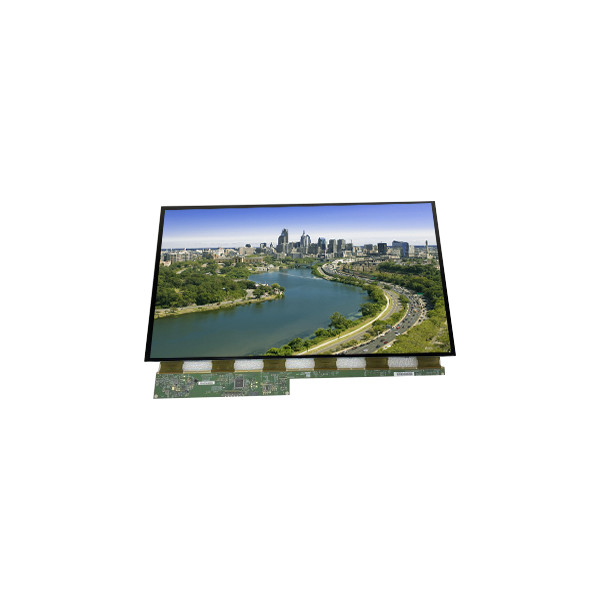

M255UW02 V0 25.5 inch LCD display 1920*1200 LCD Screen

Brand Name:	AUO
Model Number:	M255UW02 V0
MOQ:	1 pcs
Price:	Negotiable
Packaging Details:	Original packaging/conventional packaging box
Payment Terms:	T/T, Western Union

Detail Information

Product Description

Detail Information

Place of Origin:

China

Model Name:

M255UW02 V0

Diagonal Size:

25.5"

Panel Type:

A-Si TFT-LCD, LCM

Resolution:

1920(RGB)×1200, WUXGA 88PPI

Pixel Format:

RGB Vertical Stripe

Active Area:

550.08(W)×343.8(H) Mm

Work Mode:

TN, Normally White, Transmissive

Best View On:

6 O'clock

Backlight:

6 PcsCCFL, 50K Hours, With Inverter

Used For:

Desktop Monitor

Supply Ability:

100000 Unit/Units per Month

Product Description

M255UW02 V0 25.5 inch LCD display 1920*1200 LCD Screen

M255UW02 V0 LCD Panel Product details :

Brand	ACER
Model P/N	M255UW02 V0
Diagonal Size	25.5"
Panel Type	a-Si TFT-LCD, LCM
Resolution	1920(RGB)×1200, WUXGA 88PPI
Pixel Format	RGB Vertical Stripe
Active Area	550.08(W)×343.8(H) mm
Bezel Opening	554.1(W)×347.8(H) mm
Outline (mm)	582×375.6×42.1 (H×V×D)
Treatment	Glare (Haze 0%), Hard coating (2H)
Luminance	450 cd/m² (Typ.)
Contrast Ratio	1000 : 1 (Typ.) (TM)
Viewing Angle	85/85/80/80 (Typ.)(CR≥10)
Response	3.4/1.6 (Typ.)(Tr/Td), 8 (Typ.)(G to G) ms
Good View at	6 o'clock
Work Mode	TN, Normally White, Transmissive
Color Depth	16.7M 92%NTSC
Backlight	6 pcsCCFL, 50K hours, With Inverter
Mass	4.20Kgs (Typ.)
Used for	Desktop Monitor
Refresh Rate	60Hz
Touchscreen	Without
Signal Type	LVDS (2 ch, 8-bit), Connector30 pins
Voltage Supply	5.0V (Typ.)
Max. Ratings	Storage Temp.: -20 ~ 60 °C Operating Temp.: 0 ~ 50 °C

Important Note Regarding M255UW02 V0 LCD Screen:

The part numbers mentioned in the titles serve solely as a reference to aid you in locating a compatible screen for your existing model number. Please be aware that receiving the exact part number as listed in the title is not guaranteed. Instead, we will dispatch a 100% compatible item that matches the specifications of the original part number. It's common for manufacturers to alter part numbers over time, rendering certain numbers obsolete. Furthermore, the images included in the listing are intended for illustrative purposes only, showcasing the connector's position and the fixing points.

M255UW02 V0 LCD Panel Shipping and Package :

Shipping Details for M255UW02 V0 LCD Screen:

Rest assured, your item is in excellent condition and will be carefully prepared for shipping.

All orders will be dispatched to the buyer's specified shipping address as listed during the purchase process. If you wish to have your order delivered to an alternative address, kindly ensure that you update your shipping details accordingly before completing your transaction.

Please note that the seller reserves the right to opt for a shipping company other than the one initially indicated in the listing, at their discretion. Common carriers utilized include USPS, UPS, and FedEx. Should you prefer to use your own shipping label, please feel free to get in touch with us.

Upon shipment, all packages will be provided with a tracking number for your convenience. We extend our shipping services internationally; however, please be advised that the buyer assumes responsibility for all associated international shipping and handling fees.

While we prioritize shipping the model specified in the title, in the event that this model is unavailable, we will promptly dispatch its compatible universal counterpart to fulfill your order.

M255UW02 V0 LCD Panel FAQ :

Q: When will my order 25.5 inch lcd panel M255UW02 V0 ship?

A: The order are shipped within 1-2 working days after received the payment.

Q: Can you test 25.5 inch lcd panel M255UW02 V0 before shipping?

A: Don't Worry , The M255UW02 V0 was tested ok before shipping.

Q: What happen if M255UW02 V0 I received can't work ?

A: The M255UW02 V0 will be tested ok before shipping .If happen that , pls check all the connect cable again,If still has problems ,we accept exchange or return panel.
