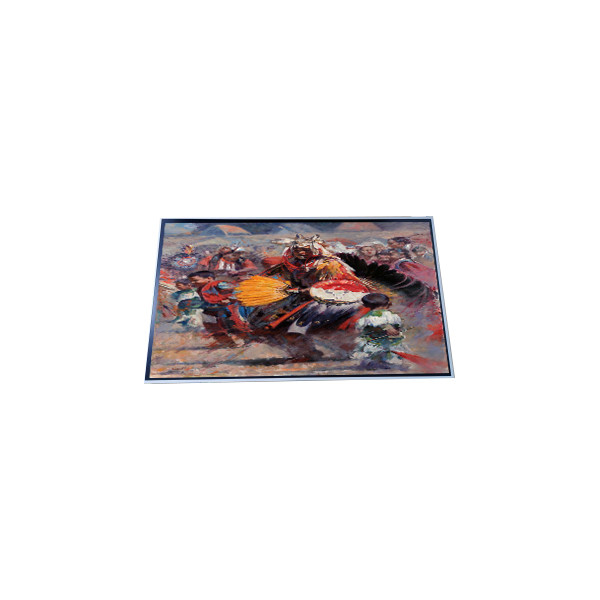

P286IVN02.0 28.6 inch 1920*540 LCD Screen Display
Product Details:
| Place of Origin: | China |
| Brand Name: | AUO |
| Model Number: | P286IVN02.0 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Original packaging/conventional packaging box |
| Delivery Time: | 7 Days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 100000 Unit/Units per Month |
|
Detail Information |
|||
| Model Name: | P286IVN02.0 | Diagonal Size: | 28.6" |
|---|---|---|---|
| Panel Type: | A-Si TFT-LCD, LCM | Resolution: | 1920(RGB)×540 69PPI |
| Pixel Format: | RGB Vertical Stripe | Active Area: | 698.4(W)×196.425(H) Mm |
| Work Mode: | AMVA3, Normally Black, Transmissive | Best View On: | Symmetry |
| Backlight: | WLED , 70K Hours , With LED Driver | Used For: | Digital Signage、Outdoor High Brightness、Stretched Bar LCD |
Product Description
P286IVN02.0 28.6 inch 1920*540 LCD Screen Display
P286IVN02.0 LCD Panel Product details :
| Brand | AUO |
| Model P/N | P286IVN02.0 |
| Diagonal Size | 28.6" |
| Panel Type | a-Si TFT-LCD, LCM |
| Resolution | 1920(RGB)×540 69PPI |
| Pixel Format | RGB Vertical Stripe |
| Active Area | 698.4(W)×196.425(H) mm |
| Bezel Opening | 702.4(W)×200.43(H) mm |
| Outline Size | 722.2(W)×220.23(H)×28.9(D) mm |
| Brightness | 1000 cd/m² (Typ.) |
| Viewing Angle | 89/89/89/89 (Typ.)(CR≥10) |
| Best View on | Symmetry |
| Display Colors | 16.7M 72%NTSC |
| Frequency | 60Hz |
| Weight | 3.10Kgs |
| Surface | Antiglare (Haze 28%), Hard coating (3H) |
| Contrast Ratio | 4000:1 (Typ.) (TM) |
| Display Mode | AMVA3, Normally Black, Transmissive |
| Response Time | 8 (Typ.)(G to G) |
| Lamp Type | WLED , 70K hours , With LED Driver |
| Touch Screen | Without |
| Application | Digital Signage,Outdoor High Brightness,Stretched Bar LCD |
| Signal Interface | LVDS (2 ch, 8-bit), 51 pinsConnector |
| Input Voltage | 12V (Typ.) |
| Environment | Operating Temp.: -20 ~ 60 °C ;Storage Temp.: -20 ~ 60 °C |
Important Note Regarding P286IVN02.0 LCD Screen:
The part numbers mentioned in the titles serve solely as a reference to aid you in locating a compatible screen for your existing model number. Please be aware that receiving the exact part number as listed in the title is not guaranteed. Instead, we will dispatch a 100% compatible item that matches the specifications of the original part number. It's common for manufacturers to alter part numbers over time, rendering certain numbers obsolete. Furthermore, the images included in the listing are intended for illustrative purposes only, showcasing the connector's position and the fixing points.
P286IVN02.0 LCD Panel Shipping and Package :
Shipping Details for P286IVN02.0 LCD Screen:
Rest assured, your item is in excellent condition and will be carefully prepared for shipping.
All orders will be dispatched to the buyer's specified shipping address as listed during the purchase process. If you wish to have your order delivered to an alternative address, kindly ensure that you update your shipping details accordingly before completing your transaction.
Please note that the seller reserves the right to opt for a shipping company other than the one initially indicated in the listing, at their discretion. Common carriers utilized include USPS, UPS, and FedEx. Should you prefer to use your own shipping label, please feel free to get in touch with us.
Upon shipment, all packages will be provided with a tracking number for your convenience. We extend our shipping services internationally; however, please be advised that the buyer assumes responsibility for all associated international shipping and handling fees.
While we prioritize shipping the model specified in the title, in the event that this model is unavailable, we will promptly dispatch its compatible universal counterpart to fulfill your order.
P286IVN02.0 LCD Panel FAQ :
Q: If I place order now,when will you ship the goods of P286IVN02.0 ?
A: The order will be shipped within 2-3 working days after received your payment.
Q: Can you give me a discount if I need a large quantity of P286IVN02.0 ?
A: Of course!If you make a large order, we will give you a discount.
Q: How long will I receive my goods P286IVN02.0 ?
A: Generally speaking ,It will take 3-8days to your hand by DHL/FEDEX/UPS/TNT.
Q: How to make payment of P286IVN02.0 ?
A: We accept T/T , Paypal , western union .
