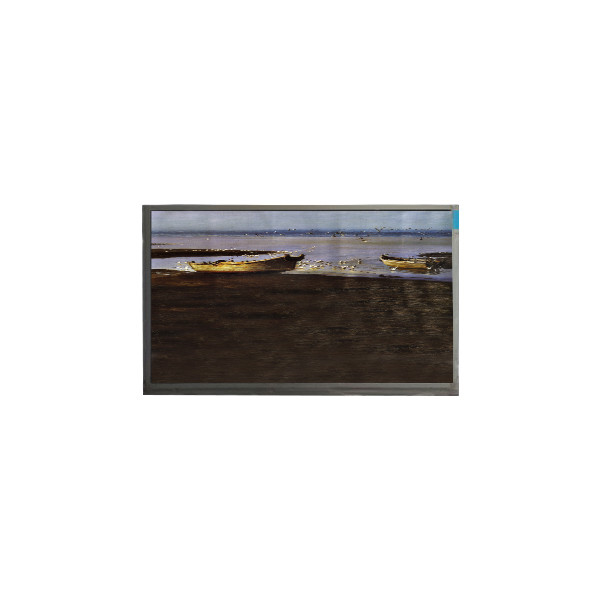

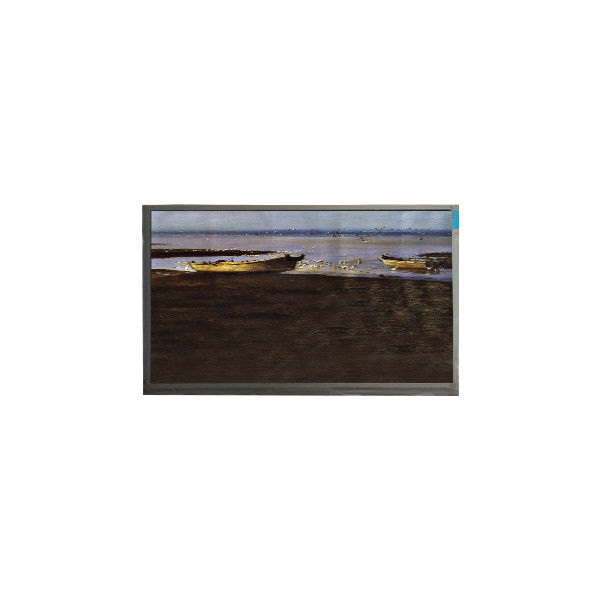

P101NWT2 R1 10.1 inch 1024*576 LCD Screen For Netbook PC

Brand Name:	IVO
Model Number:	P101NWT2 R1
MOQ:	1 pcs
Price:	Negotiable
Packaging Details:	Original packaging/conventional packaging box
Payment Terms:	T/T, Western Union

Detail Information

Product Description

Detail Information

Place of Origin:

China

Model Name:

P101NWT2 R1

Diagonal Size:

10.1"

Panel Type:

A-Si TFT-LCD, CELL, FOB

Resolution:

1024(RGB)×576, WSVGA 116PPI

Pixel Format:

RGB Vertical Stripe

Active Area:

222.72(W)×125.28(H) Mm

Application:

Netbook PC、Digital Photo Frame、Portable DVD Player

Backlight:

No B/L, With LED Driver

Work Mode:

TN, Normally White, Transmissive

Glass Thickness:

0.50+0.50 Mm

Supply Ability:

100000 Unit/Units per Month

Product Description

P101NWT2 R1 10.1 inch 1024*576 LCD Screen For Netbook PC

P101NWT2 R1 LCD Panel Product details :

Brand	IVO
Model P/N	P101NWT2 R1
Diagonal Size	10.1"
Panel Type	a-Si TFT-LCD, CELL, FOB
Resolution	1024(RGB)×576, WSVGA 116PPI
Pixel Format	RGB Vertical Stripe
Active Area	222.72(W)×125.28(H) mm
Bezel Opening	-
Outline(mm)	230.52 × 134.08× 1.28 (H×V×D)
Treatment	Glare (Haze 0%), Hard coating
Luminance	0 cd/m²
Contrast Ratio	500 : 1 (Typ.) (TM)
Viewing Angle	45/45/15/35 (Typ.)(CR≥10)
Response	8 (Typ.)(Tr+Td) ms
Good View at	6 o'clock
Work Mode	TN, Normally White, Transmissive
Glass Thickness	0.50+0.50 mm
Transmissivity	6.44% (Typ.)
Color Depth	262K 46%NTSC
Backlight	No B/L, With LED Driver
Outline Shape	-
Used for	Netbook PC,Digital Photo Frame,Portable DVD Player
Refresh Rate	60Hz
Touchscreen	Without
Driver IC list	Built-inCOG2 source + 2 gate chips
Signal Type	LVDS (1 ch, 6-bit), 40 pins Connector
Voltage Supply	3.3V (Typ.)
Max. Ratings	Storage Temp.: -20 ~ 60 °C Operating Temp.: 0 ~ 50 °C

P101NWT2 R1 LCD Panel Shipment :

· We're not responsible for any accidents delays or other issues that are the resposibility of the shipping service.But we will help you to track the package until you get.

· Please make sure to double check your address before completing your payment.

· An email will be sent as package is process for shipment .We will provide tracking number for you to check the package online.

· Customers are responsible for customs taxes and duties where applicable.

· Any import charges or fees are the buyer's responsibility. If the package can't be delivered because of the buyers reason(including refusing to sign), buyer should afford all the extra cost!

P101NWT2 R1 LCD Panel Shipping and Package :

P101NWT2 R1 10.1 inch 1024*576 LCD Screen For Netbook PC 0

P101NWT2 R1 LCD Panel Shipment Information :

Shipment Policies

Responsibility for Delays and Issues: While we are committed to helping you track your package, please note that we are not responsible for any accidents, delays, or other issues that are the responsibility of the shipping service. We will, however, assist you in tracking your package until it reaches you.

Address Verification: It is crucial to double-check your shipping address before completing your payment. Ensuring that the address is accurate helps prevent delivery issues and delays.

Shipping Notification: Once your package is processed for shipment, you will receive an email notification. This email will include the tracking number, which you can use to monitor your package's status online.

Customs Taxes and Duties: Customers are responsible for any customs taxes and duties applicable in their country. Please be aware of your local regulations regarding import charges to avoid unexpected fees.

Import Charges: Any additional import charges or fees imposed by your country are the buyer's responsibility. If a package cannot be delivered due to reasons attributable to the buyer (such as refusal to sign for the package), the buyer will be responsible for any additional costs incurred.

P101NWT2 R1 LCD Panel Return and Warranty Information :

Return Policy

Inspection and Exchange: All goods undergo two inspections before shipment to guarantee quality. If you are not satisfied with your purchase, you may exchange the item within one week. To initiate an exchange, please contact us within 24 hours of receiving your purchase.

Condition of Return Items: Items must be returned in their original condition, including the box and all accessories. Items showing signs of man-made defects, such as breakage or scratches, are not eligible for return or exchange.

Return Shipping: For returning any items, please use EMS (Express Mail Service) or your local postal service to send the item back to us.

Warranty Policy

Warranty Duration: All items come with a six-month warranty, covering any issues not caused by human error or damage. If your item has a defect not caused by man-made problems, we will replace it for you free of charge.

Best After-Sale Service: We pride ourselves on providing excellent after-sale service. Should any problems arise, we are dedicated to resolving them to ensure customer satisfaction.

P101NWT2 R1 LCD Panel FAQ :

Q: How do you ship my goods P101NWT2 R1 ?

A: We can shipping all over the world.via DHL,UPS,Fedex and EMS, the packaging is very safe and strong.

Q: How long is the warranty of P101NWT2 R1 ?

A: 90days warranty .

Q: Are you manufactory or trade company ?

A: We are a Trade Company , We are LCD panel professional distributors ,We have own warehouse and inventory. Our goal is to provide our customers with the best products.

Q: Can You declare my order of LCD panel P101NWT2 R1 at a very low value ?

A: Yes , we can . pls inform us before shipping .
