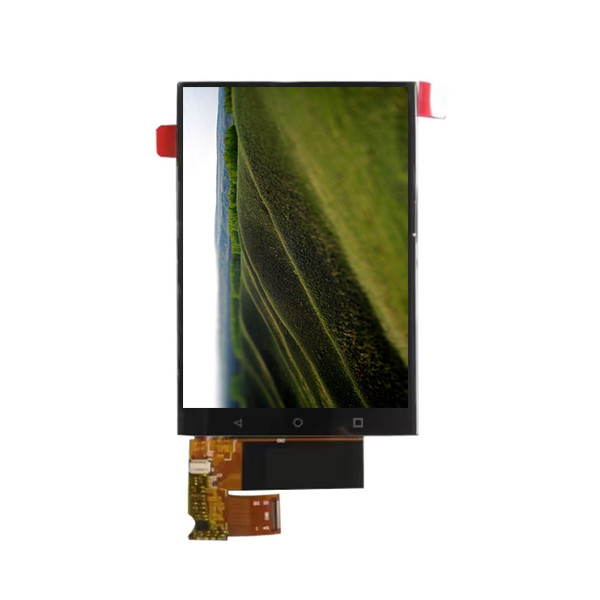

BV047HDE-N40 4.7 inch 720*1280 1500 : 1 LCD Screen
Product Details:
| Place of Origin: | China |
| Brand Name: | BOE |
| Model Number: | BV047HDE-N40 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Original packaging/conventional packaging box |
| Delivery Time: | 7 Days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 100000 Unit/Units per Month |
|
Detail Information |
|||
| Model Name: | BV047HDE-N40 | Diagonal Size: | 4.7" |
|---|---|---|---|
| Panel Type: | A-Si TFT-LCD, CELL, Full Cell | Resolution: | 720(RGB)×1280, WXGA 314PPI |
| Pixel Format: | RGB Vertical Stripe | Active Area: | 58.104(W)×103.296(H) Mm |
| Application: | Mobile Phone | Touch Screen: | Without |
Product Description
BV047HDE-N40 4.7 inch 720*1280 1500 : 1 LCD Screen
BV047HDE-N40 LCD Panel Product details :
| Brand | BOE |
| Model P/N | BV047HDE-N40 |
| Diagonal Size | 4.7" |
| Panel Type | a-Si TFT-LCD, CELL, Full Cell |
| Resolution | 720(RGB)×1280, WXGA 314PPI |
| Pixel Format | RGB Vertical Stripe |
| Active Area | 58.104(W)×103.296(H) mm |
| Bezel Opening | - |
| Outline Size | 60.504(W)×109.646(H)×0.4(D) mm |
| Treatment | Without Polarizer |
| Luminance | 0 cd/m² |
| Contrast Ratio | 1500 : 1 (Typ.) (TM) |
| Viewing Angle | 80/80/80/80 (Typ.)(CR≥10) |
| Response | 25 (Typ.)(Tr+Td) ms |
| Good View at | Symmetry |
| Work Mode | ADS, Normally Black, Transmissive |
| Glass Thickness | 0.20+0.20 mm |
| Transmissivity | 4.3% (Typ.)(with Polarizer) |
| Color Depth | 16.7M 72%NTSC |
| Backlight | No B/L |
| Mass | TBD |
| Used for | Mobile Phone |
| Refresh Rate | - |
| Touchscreen | Without |
| Driver IC list | Suggest COG NT35521S, OTM1284A, HX8394D, HX8394F, OTM1287A, ILI9881C |
| Max. Ratings | Storage Temp.: -30 ~ 80 °C Operating Temp.: -20 ~ 70 °C |
| BV047HDE-N40 4.7 inch 720*1280 1500 : 1 LCD Screen | |
